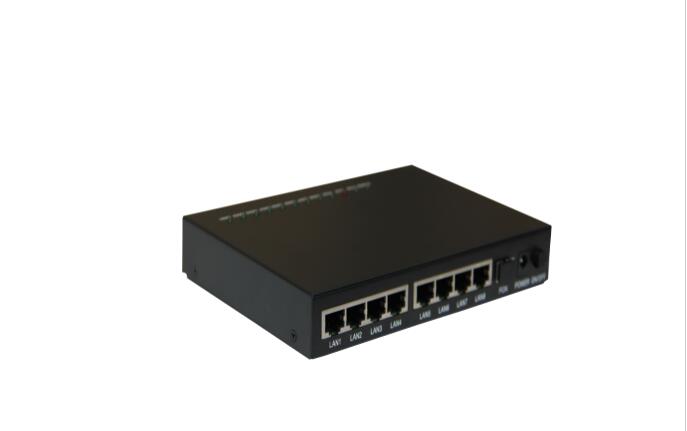

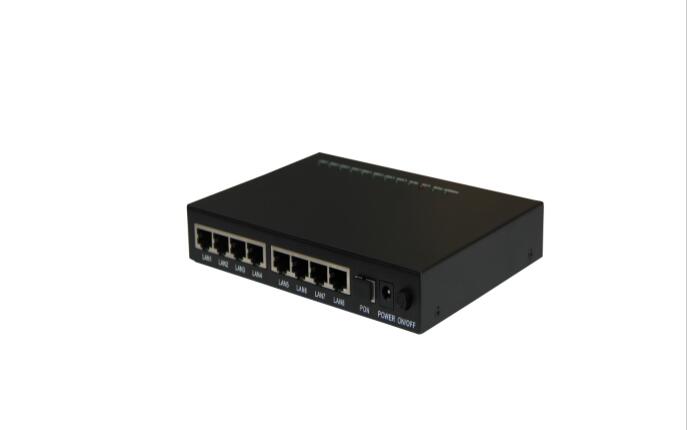

FTTB 8FE EPON ONU
PTF1008M
Product Description
FIBERWAY PTF1008M is 8FE FTTB EPON ONU, which complies with the IEEE802.3ah international standard, YD/T 1475-2006 and China Telecom CTC 3.0 standard. It has good compatibility and is compatible with mainstream manufacturers such as Huawei and ZTE OLT etc.
Iron shell, 8FE ports, high performance-price ratio, stability, high reliability, easy management, flexible configuration, and good quality of service (QoS) guarantee. It is suitable for a variety of applications, such as FTTB, premises networks, fiber to the enterprise, security monitoring, system integration, and the Internet of Things.
It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø Compatible with popular EPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support port isolation
Ø Support Dysing Gasp
Ø Support STP
Ø Support 4 priority queue scheduling, support SP, WRR and SP+WRR scheduling algorithm
Ø Support Telnet, CLI, OAM and Web management
Ø Support remote software upgrade
|
Items |
Unit |
Specifications |
|
PON standard. |
|
EPON IEEE802.3ah |
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps. |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|

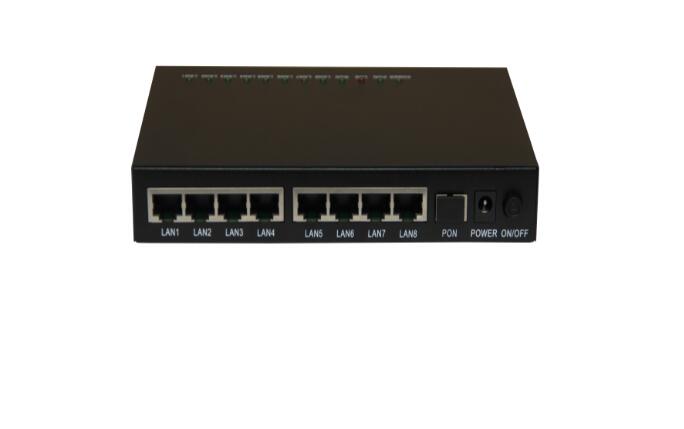

Interface |
data |
8FE 10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|

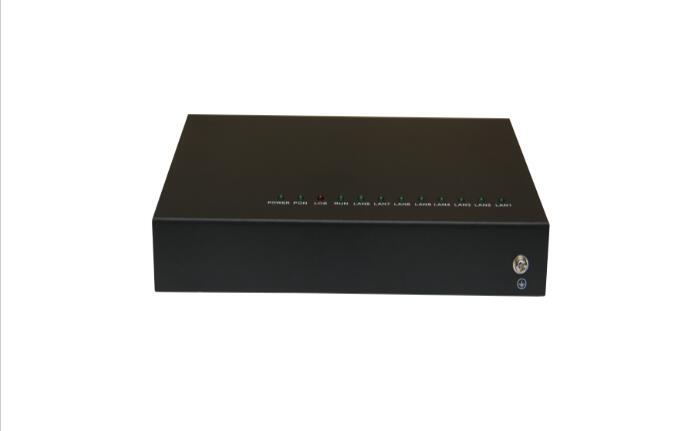

Indicator |
LED |
POWER, PON, LOS, RUN, LAN1~LAN8 |
|
Operating condition |
℃ |
Operating temp: -10 ~ +55 |
|
Storing condition |
℃ |
Storing temp: -40 ~ +75 |
|
Humidity |
% |
5~95(non-condensing) |
|
Power supply |
V |
DC 12V, 1A adapter |
|
Power consumption |
W |
≤7 |
|
Dimension |
mm |
176mm×125mm×30mm（L×M×H） |
|
Net weight |
Kg |
0.88 |
Service
|
Items |
Specifications |
|
LAN Port |
Support port MDI/MDIX auto-negotiation |
|
Support 802.3x flow control |
|
|
Support speed limit for each port |
|
|
Support storm suppression |
|
|
Support port MAC restriction |
|
|
Support port isolation |
|
|
Support STP |
|
|
Support port mapping |
|
|
VLAN |
Support 4094 VLAN, 802.1Q VLAN, SVLAN, CTC VLAN |
|
Multicast |
Support IGMP Snooping, CTC controllable Snooping, 255 groups |
|
QoS |
Support flow classification based on source MAC, destination MAC, VLAN priority, VLAN ID, Ethernet frame type, source IP, destination IP |
|
Support 802.1p, DSCP and TOS; Support SP |
|
|
Management and maintenance |
Support CLI, Telnet, WEB management |
|
Support remote or local upgrade of Firmware; Support remote or local upload and download of configuration files |
|
|
MAC address |
Support 8K MAC address table; Support static MAC address and MAC address blacklist |
