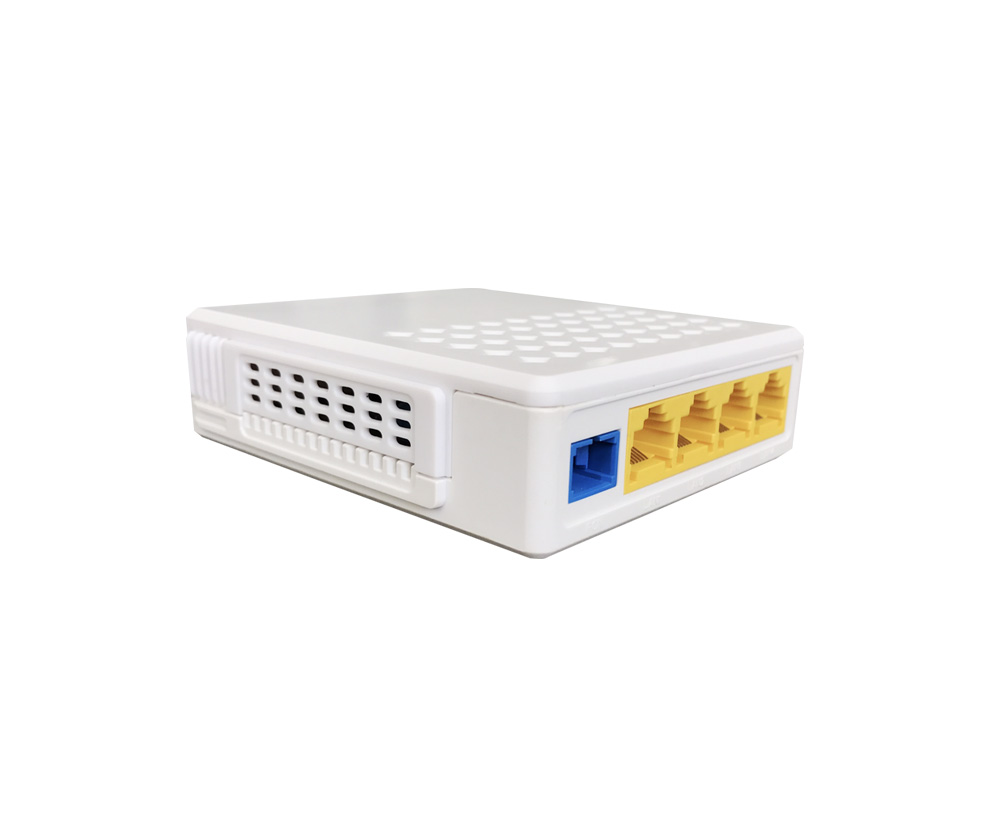

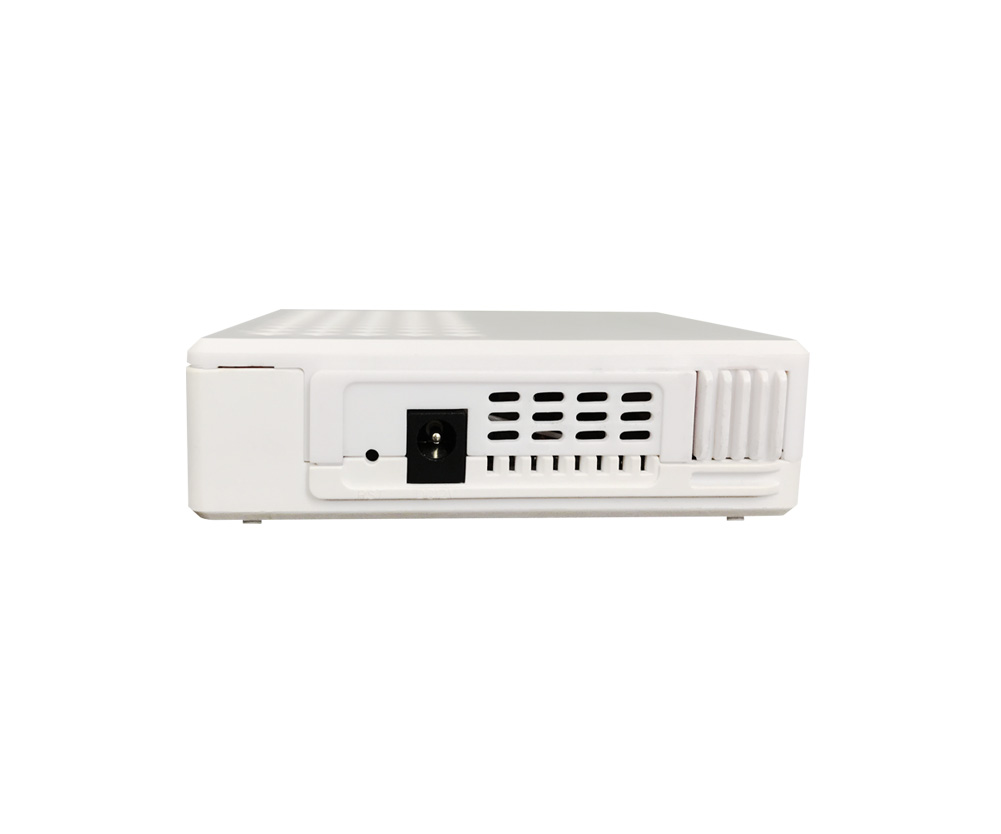

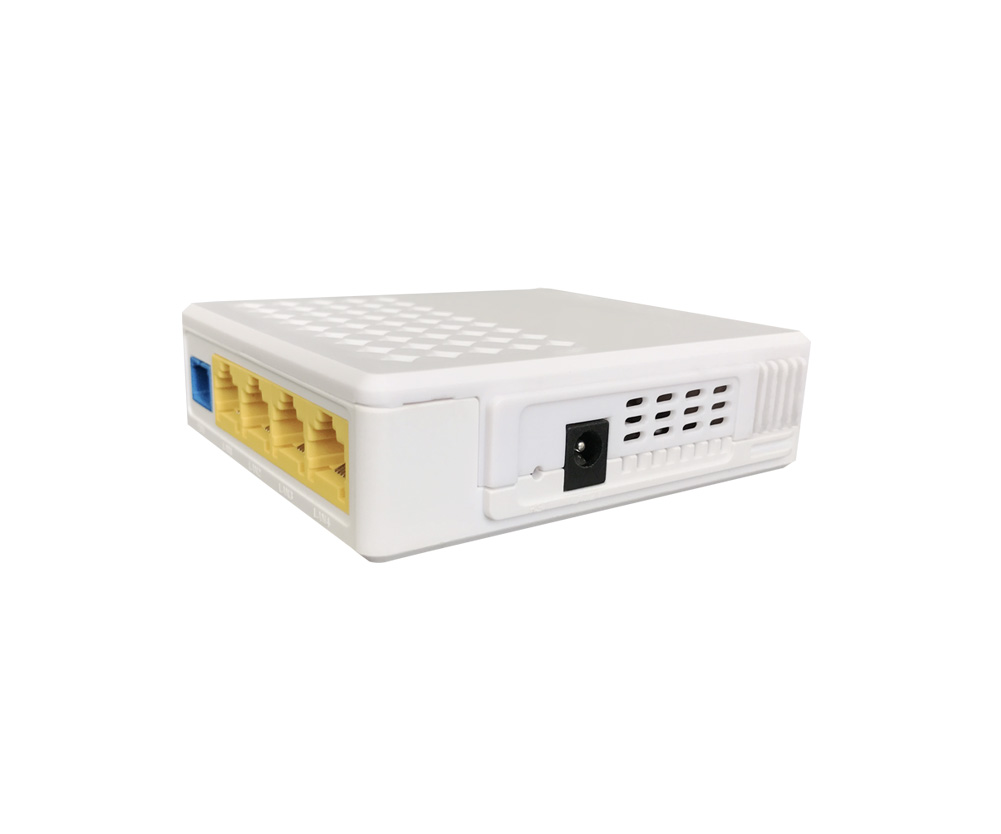

4FE SFU EPON ONU
PTF1304
Overview:
FIBERWAY PTF1304 is 4FE Ports SFU EPON ONU. It is designed for meeting the multi- services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
Small size ONU can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø SFU ONU using ZTE chip and 32M RAM
Ø Bridging and routing modes can be set
Ø Support loop detection, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, storm suppression
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall
Ø Support remote software upgrading
|
Items |
Unit |
Specifications |
|
PON standard |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
Optical interface |
|
SC/PC connector,1 EPON or GPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-27dBm Transmitting optical power: 0 ~ +4dBm Transmission distance: 20KM |
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
4FE 10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Indicator |
LED |
POWER, LOS, PON, LAN1 ~ LAN4 |
|
Operating condition |
℃ |
Operating temperature: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temperature: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,0.5A adapter |
|
Power consumption |
W |
≤4 |
|
Dimension |
mm |
100×92×30（L×W×H） |
|
Net weight |
Kg |
0.11 |
