1GE + WiFi HGU EPON ONU
Features
Specification
Application
Video

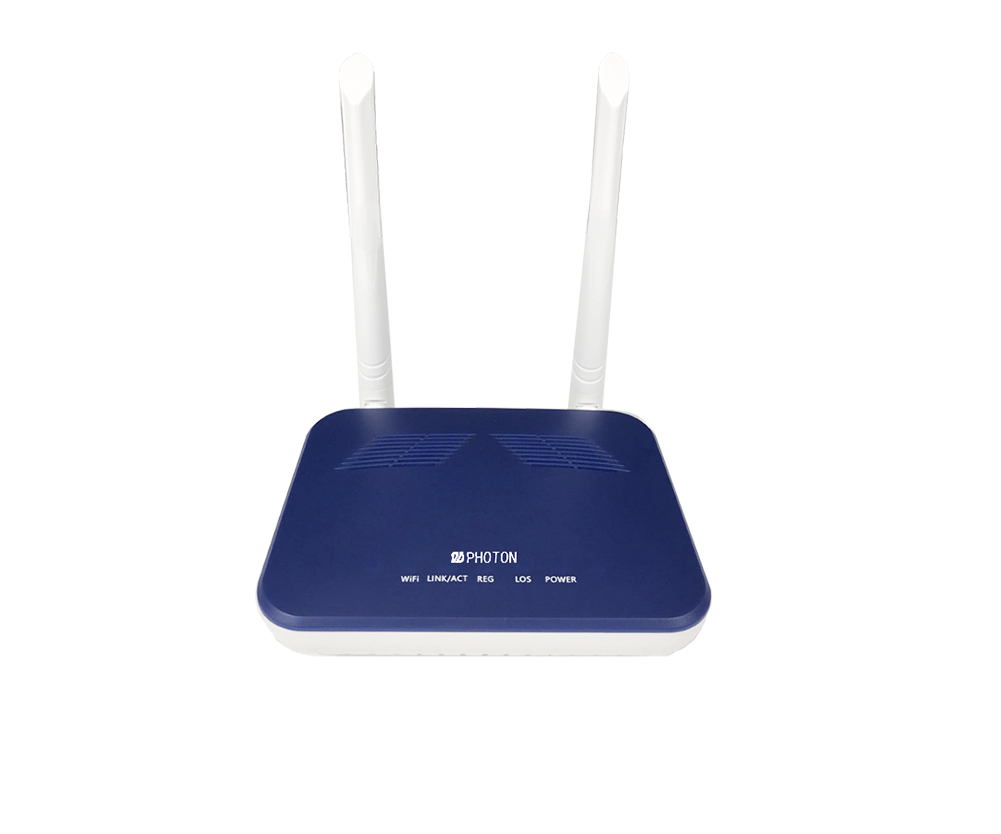

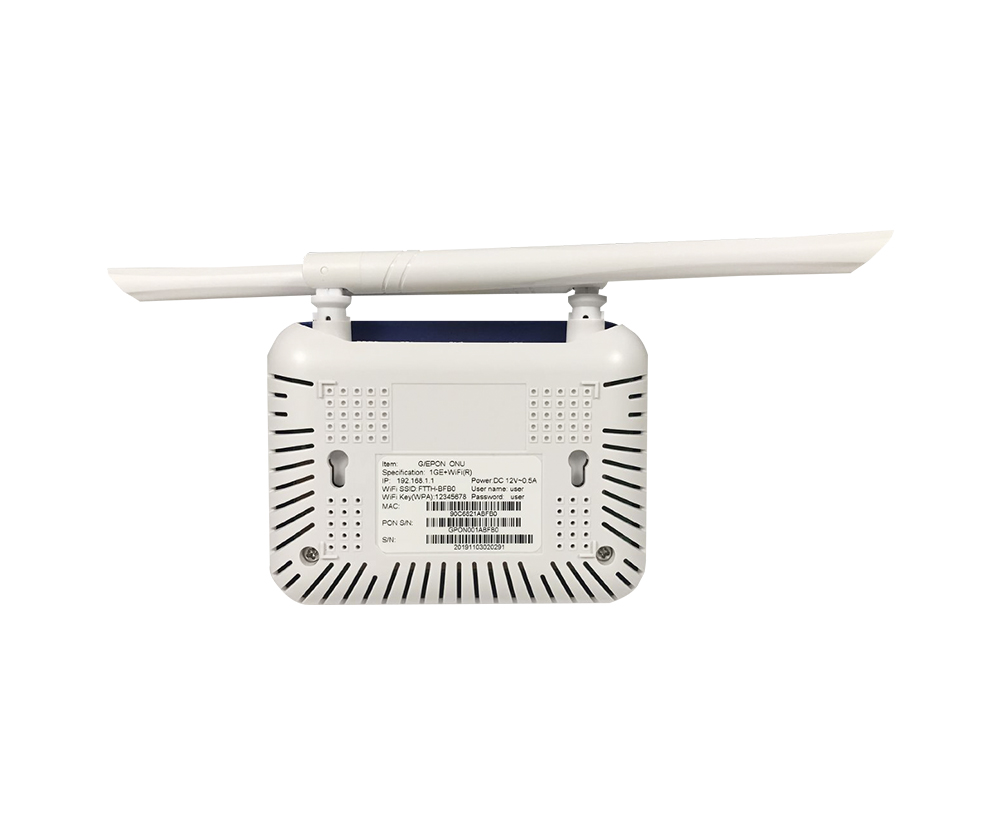

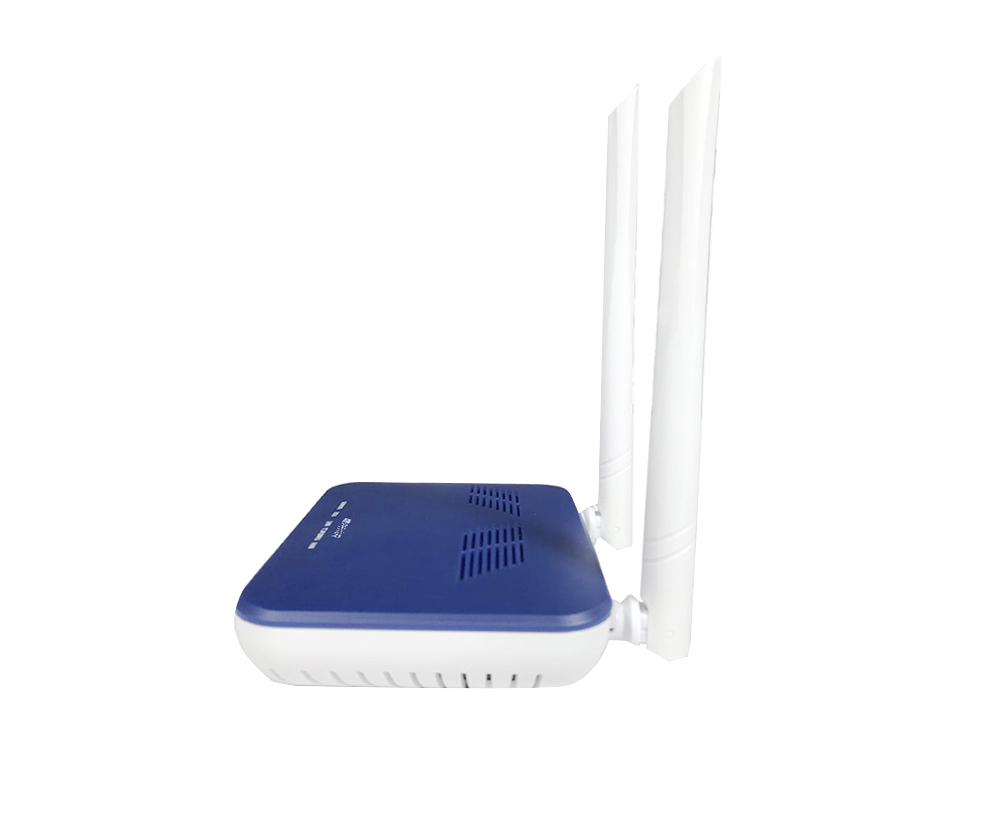

1GE+WiFi HGU EPON ONU

PTF1251W

Product Description:

FIBERWAY PTF1251W is 1GE+WiFi EPON HGU ONU. It is designed for meeting the multi- services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.

Small size ONU can also be applied to a wide temperature environment, and also has a firewall function.


Features:

Ø HGU ONU, bridging and routing modes can be set

Ø Compatible with popular EPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø WiFi support 802.11n speed up to 300Mbps

Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.

Ø Support Telnet, CLI, OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade



Items

Unit

Specifications

PON standard.

EPON IEEE802.3ah,

Optical interface

SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: -28dBmTransmitting optical power: 0+4dBmTransmission distance: 20KM

Speed

Gbps

EPON: symmetric 1.25Gbps

Wavelength

nm

Tx1310, Rx 1490

Interface

data

1*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

Wireless

Compliant with IEEE802.11b/g/n, 300Mbps

Indicator

LED

POWERLOSPONLANWiFi

Operating condition

Operating temp: -5 ~ +55

Storing condition

Storing temp: -30 ~ +60

Humidity

%

10~90(non-condensing)

Power supply

V

DC 12V,0.5A adapter

Power consumption

W

≤3

Dimension

mm

122mm×92mm×28mmL×W×H, not include antenna

Net weight

Kg

0.15

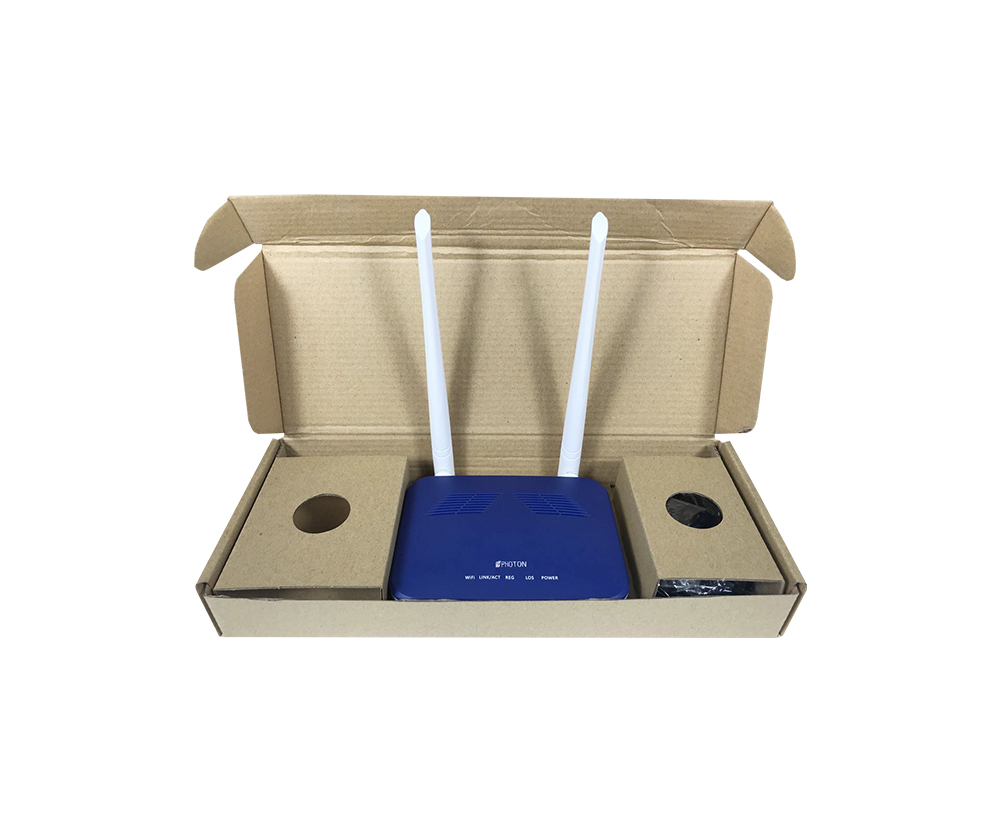

Shipping packaging:

Description

Quantity

Weight

Carton Size

Shipping packaging

1pc/box

0.28kg/box

292*118*42mm

40pc/ctn

12.5kg/ctn

435*250*605mm
