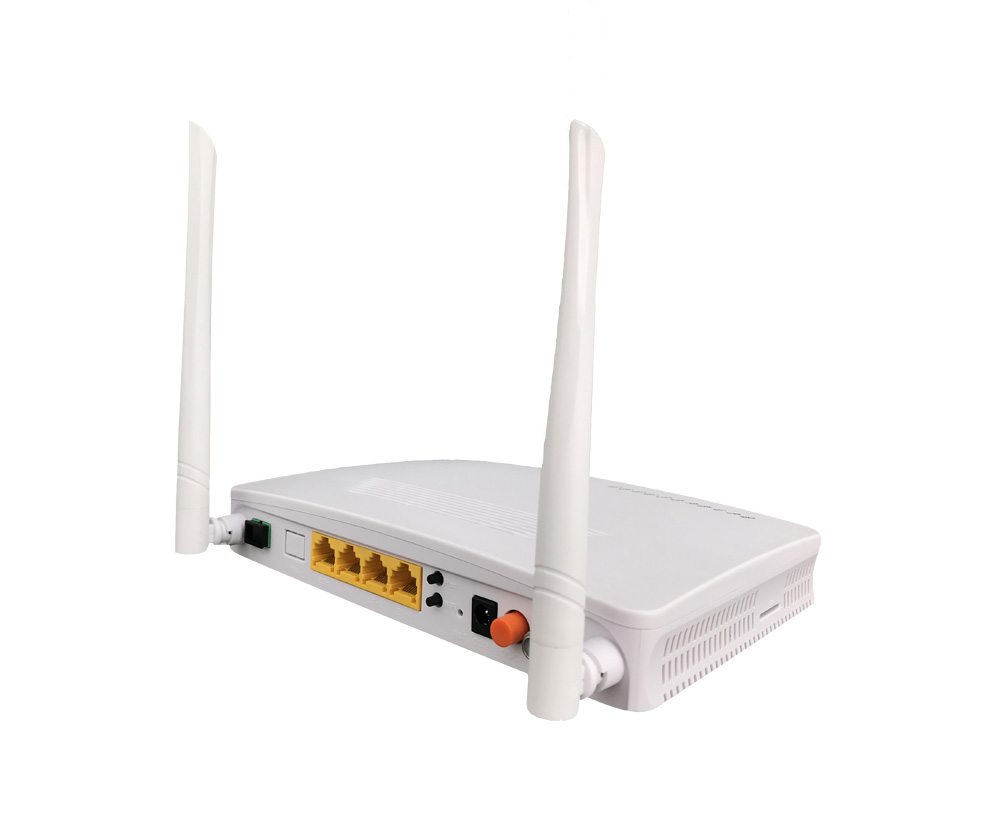

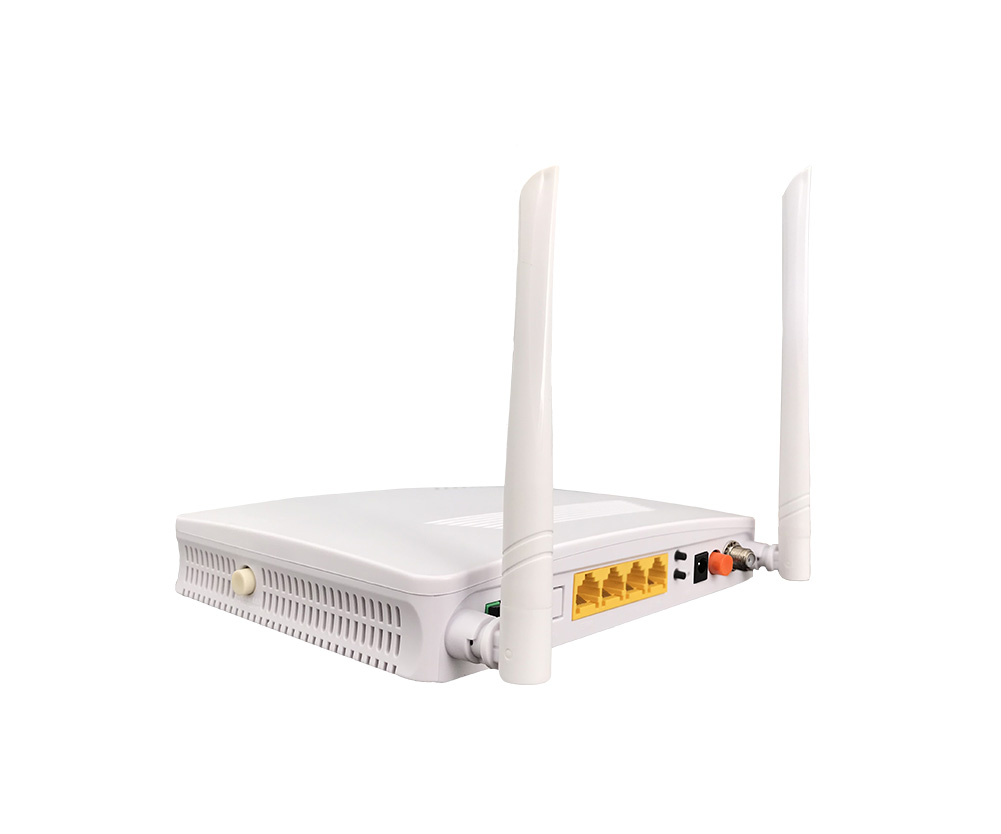

1GE+3FE+WiFi+CATV HGU EPON ONU
PTF1234W
Overview:
FIBERWAY PTF1234W is 1GE+3FE+WIFI+CATV EPON HGU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
It can also be applied to a wide temperature environment, and also has a firewall function.
Oeatures:
Ø HGU ONU, bridging and routing modes can be set
Ø Integrated CATV receiver, RF Bandwidth (MHz):45~1000, AGC Dynamic Range(dBm):-15~+0, output level:76±2dBuV
Ø Compatible with popular EPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø WiFi support 802.11n 2T2R speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
|
Technical item |
1GE+3FE+WiFi+CATV |
|
|
PON interface |
1 SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
|
Wavelength |
Tx1310nm,Rx 1490nm and 1550nm |
|
|
Optical interface |
SC/APC connector(signal fiber with WDM) |
|
|
LAN interface |
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
|
WiFi interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz, support MIMO, rate up to 300Mbps. 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13. Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
|
|
CATV interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
|
LED |
11, For Status of POWER、LOS、PON、LAN1、LAN2、LAN3、LAN4、WiFi、WPS、WAN、CATV |
|
|
Operating condition |
Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing） |
|
|
Storingcondition |
Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing） |
|
|
Power supply |
DC 12V/1A |
|
|
Power supply |
≤7W |
|
|
Dimension(L×W×H) |
205mm×140mm×37mm |
|
|
Net weight |
0.29Kg |
