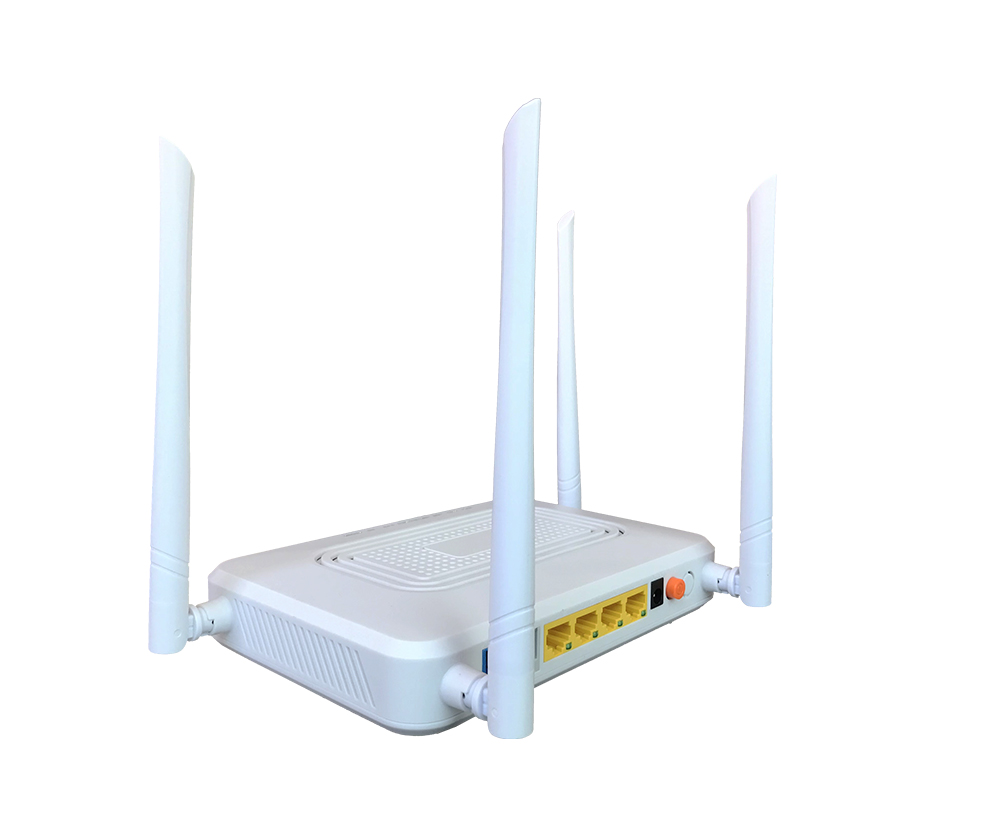

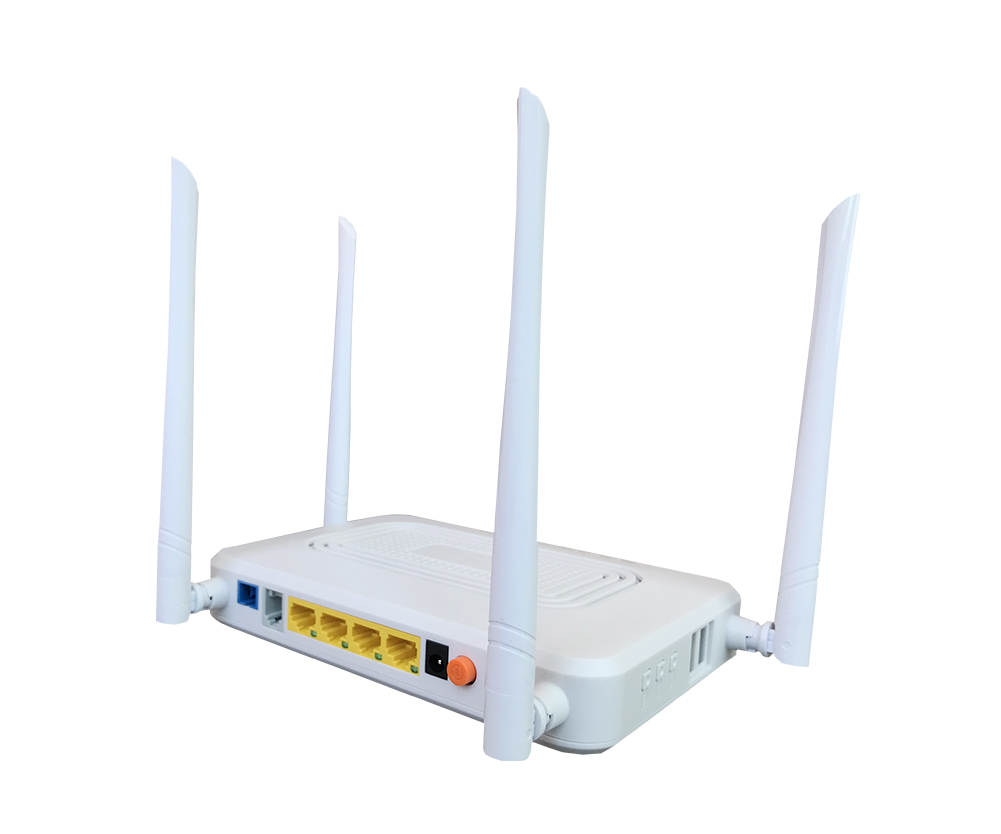

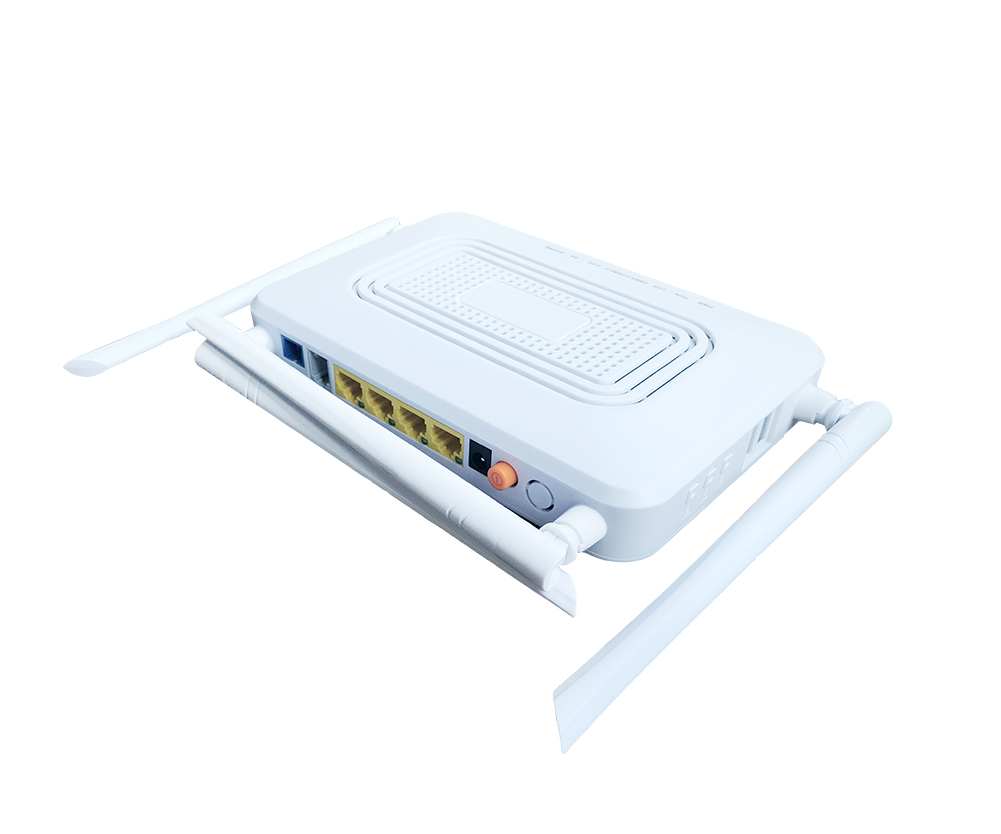

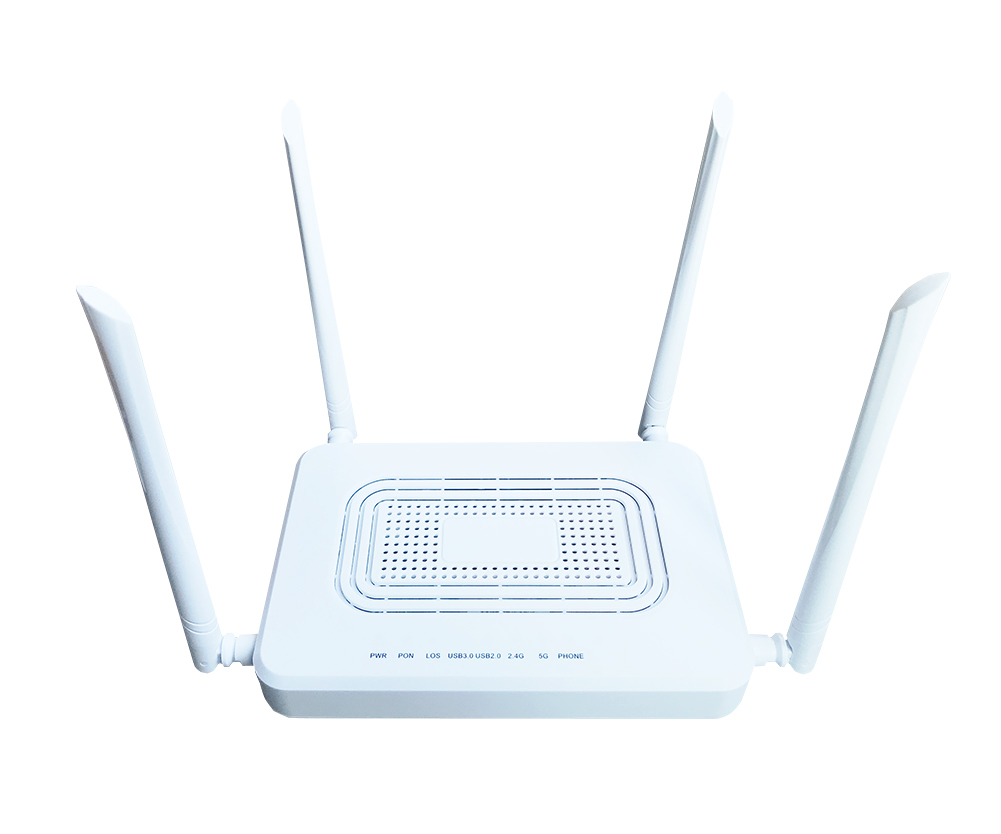

4GE+1POTS+WIFI (4T4R) HGU EPON ONU
PTF1264Q
Product Description:
FIBERWAY PTF1264Q is 4GE+1POTS+2USB+WiFi EPON HGU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators. These boxes are based on the mature Chipset (Realtek) technology, which have high ratio of performance to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high quality VoIP as well. They are high ratio of performance to price, high reliability and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Support rich QinQ VLAN functions, IGMP snooping multicast features
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11a/b/g/n/ac dual band WiFi(4T4R), rate up to 1.167Gbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK
Ø Support Telnet, CLI, OMCI/OAM /TR069 and Web management
Ø POTS function support SIP protocol
Ø Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade , etc
Ø Support IPv4 and IPv6 dual stack
Ø Support SIP protocol
|
Items |
Unit |
Specifications |
|
PON standard. |
|
EPON IEEE802.3ah |
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+ )Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps. |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
4GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Wireless |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
|
|
POTS |
1 x RJ11 connectorsSupport: G.711A/G.711U/G.723/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay |
|
|
USB |
1 x USB2.0 1 x USB3.0 |
|
|
Indicator |
LED |
12 LED for Status of POWER、LOS、PON、 LAN1～LAN4、WiFi2.4G、WiFi5.0G、USB0、USB1、Phone |
|
Operating condition |
℃ |
Operating temp: 0 ~ +50 |
|
Storing condition |
℃ |
Storing temp: -30 ~ +70 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,1.5A adapter |
|
Power consumption |
W |
≤12 |
|
Dimension |
mm |
242mm×154mm×35mm(L×W×H) |
|
Net weight |
Kg |
0.42 |
