FTTB 4GE EPON ONU
Dimension:176mm×125mm×27.8mm(L×M×H) Weight:0.6KG
Features
Specification
Application
Video

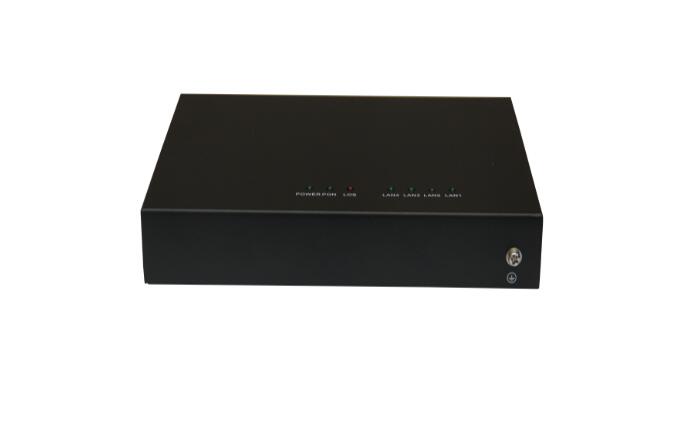

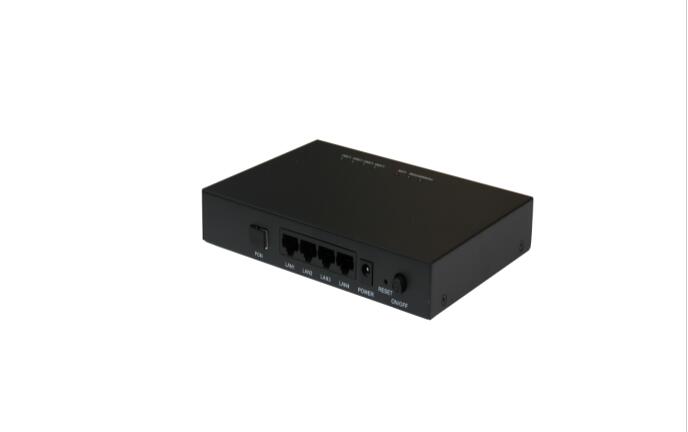

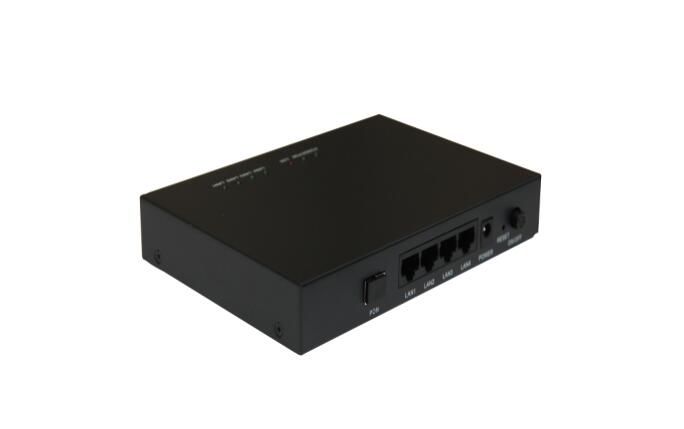

FTTB 4GE EPON ONU

PTF1504M


Product Description

FIBERWAY PTF1504M is 4GE FTTB EPON ONU, which complies with the IEEE802.3ah international standard, YD/T 1475-2006 and China Telecom CTC 3.0 standard. It has good compatibility and is compatible with mainstream manufacturers such as Huawei and ZTE OLT etc.

Iron shell, 4GE ports, high performance-price ratio, stability, high reliability, easy management, flexible configuration, and good quality of service (QoS) guarantee. It is suitable for a variety of applications, such as FTTB, premises networks, fiber to the enterprise, security monitoring, system integration, and the Internet of Things.

It can also be applied to a wide temperature environment, and also has a firewall function.


Features:

Ø Compatible with popular EPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.

Ø Support port isolation

Ø Support Dysing Gasp

Ø Support STP

Ø Support 4 priority queue scheduling, support SP, WRR and SP+WRR scheduling algorithm

Ø Support Telnet, CLI, OAM and Web management

Ø Support remote software upgrade

Items

Unit

Specifications

PON standard.

EPON IEEE802.3ah

Optical interface

SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: -28dBmTransmitting optical power: 0+4dBmTransmission distance: 20KM

Speed

Gbps

EPON: symmetric 1.25Gbps.

Wavelength

nm

Tx1310, Rx 1490

Interface

data

4GE 10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

RESET

Press more than 5 seconds to restore factory settings

Indicator

LED

POWER, PON, LOS, LAN1~LAN4

Operating condition

Operating temp: -20 ~ +65

Storing condition

Storing temp: -40 ~ +75

Humidity

%

5~95(non-condensing)

Power supply

V

DC 12V, 1A adapter

Power consumption

W

7

Dimension

mm

176mm×125mm×27.8mmL×M×H

Net weight

Kg

0.60


Service

Items

Specifications

LAN Port

Support port MDI/MDIX auto-negotiation

Support 802.3x flow control

Support speed limit for each port

Support storm suppression

Support port MAC restriction

Support port isolation

Support STP

Support port mapping

VLAN

Support 4094 VLAN, 802.1Q VLAN, SVLAN, CTC VLAN

Multicast

Support IGMP Snooping, CTC controllable Snooping, 255 groups

QoS

Support flow classification based on source MAC, destination MAC, VLAN priority, VLAN ID, Ethernet frame type, source IP, destination IP

Support 802.1p, DSCP and TOS; Support SP

Management and maintenance

Support CLI, Telnet, WEB management

Support remote or local upgrade of Firmware

MAC address

Support 2K MAC address table; Support static MAC address and MAC address blacklist
