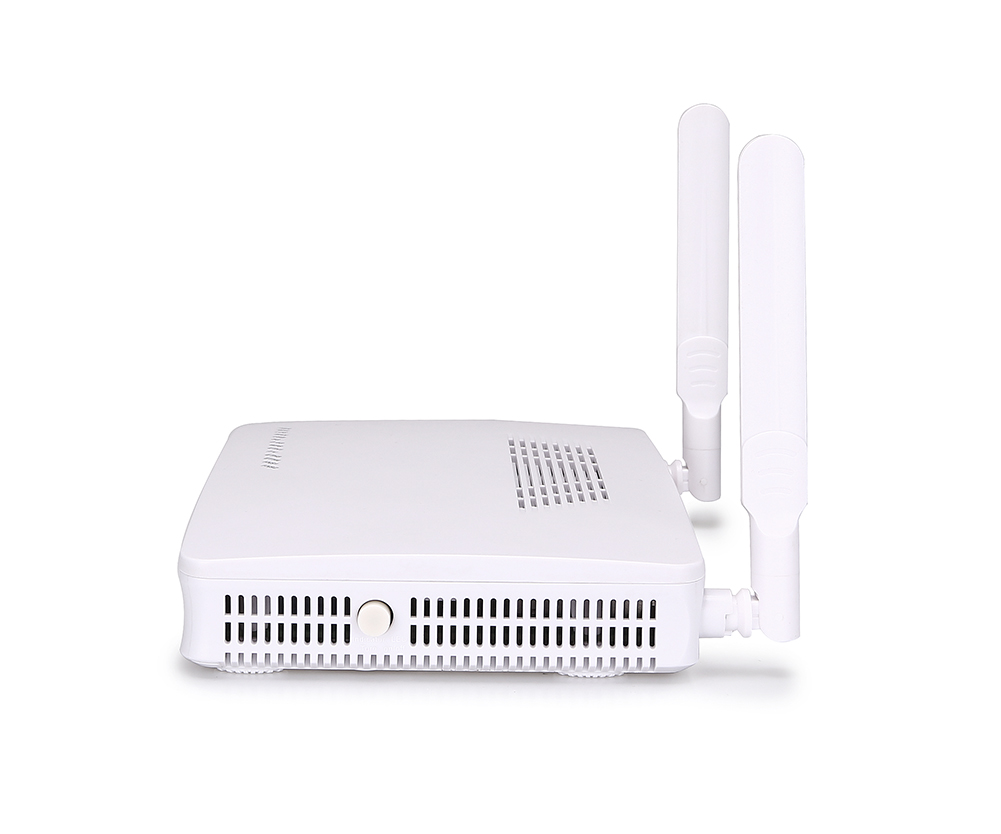

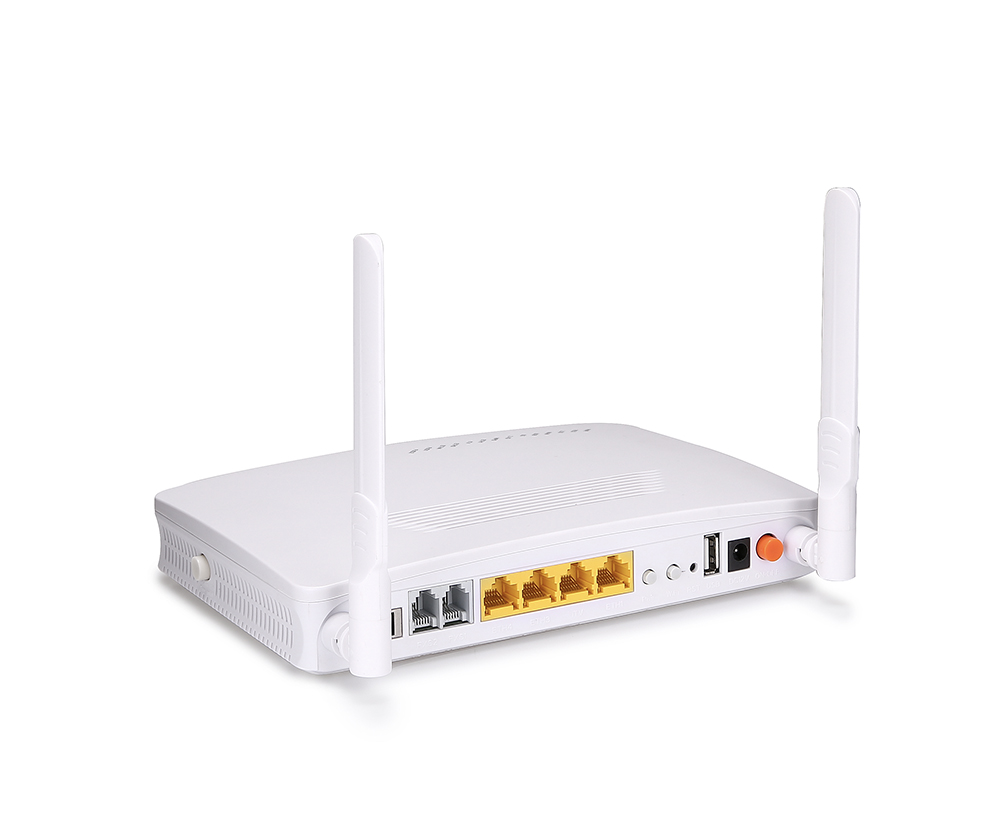

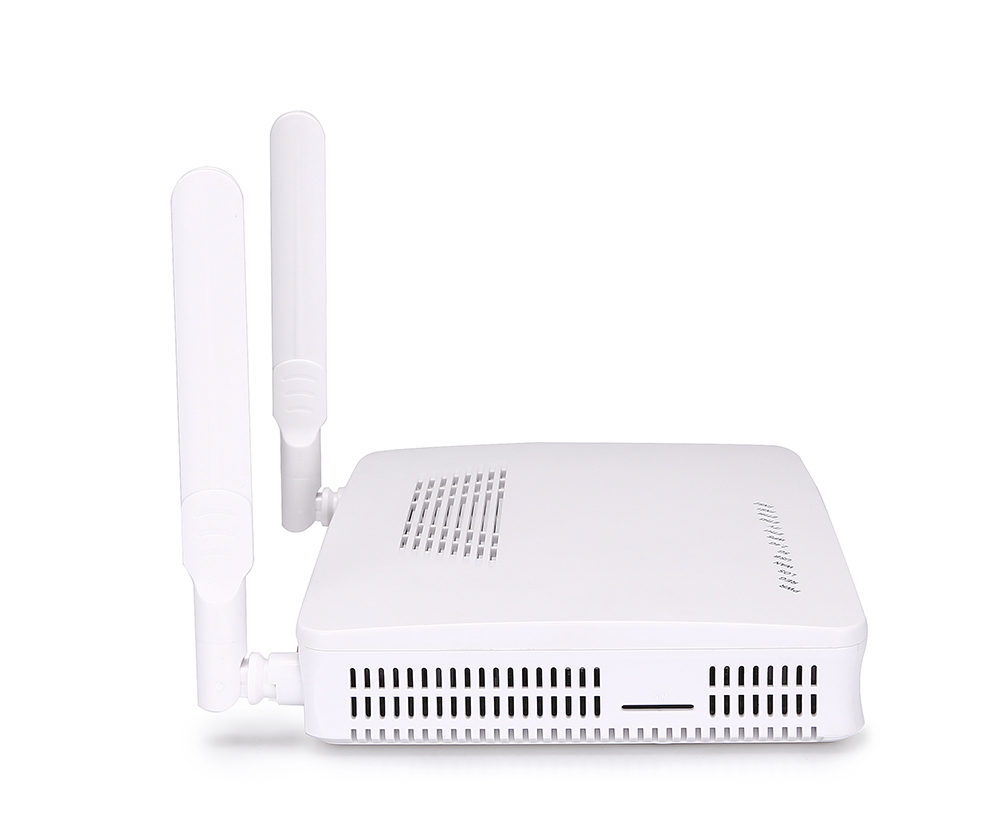

1GE+3FE+2POTS+WIFI HGU EPON ONU
PTF1564C
Product Description:
PTF1564C is 1GE+3FE+2POTS+WIFI EPON HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature Gigabit EPON technology, which have high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QOS) guarantees, and the technology of 802.11n WiFi (2T2R),Layer 2/3, and high quality VOIP as well. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support VoIP protocol: SIP、IMS-SIP
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Items |
Unit |
Specifications |
PON standard. |
|
EPON IEEE802.3ah |
Optical interface |
|
SC/PC or SC/APC(with CATV) connector |
Speed |
Gbps |
Upstream 1.25Gbps,downstream1.25Gbps |
Wavelength |
nm |
Tx1310, Rx 1490;CATV 1550 |
Interface |
data |
4x 10/100 or 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100M Full /Half Duplex,1000 Full Duplex.RJ45 connectors. |
telephone |
2x FXS,RJ11 connectors |
|
Wireless |
Compliant with IEEE802.11b/g/n/acMax 866Mbps 2T2R, 2 external antennas,2 internal antennas |
|
Indicator |
LED |
14, For Status of POWER、PON 、LOS、WAN、WIFI、POTS、LAN、Pair、USB |
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
Humidity |
% |
10~90(non-condensing) |
Power supply |
V |
DC 12V,1/1.5A |
Power consumption |
W |
≤10 |
Dimension |
mm |
205×140×37(L×W×H) |
Net weight |
Kg |
0.34 |
