1GE + 1FE + 1POTS + OTT + WIFI HGU EPON ONU
PTF1862W
Product Description:
PTF1862W EPON ONU with Tel & OTT function, which is used Elebao new launch RK3328 android 9.0, which equipped with flagship RK3328 artificial intelligence processor, new quad-core 64-bit architecture, frequency is up to 1.2GHZ, and with Mali-450MP2 GPU powerful processor, stable operation of all kinds of 3D games and large-scale applications, easy and comfortable to use. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. It can also be applied to a wide temperature environment, and also has a firewall function.
OTT Functions:
[Powerful Android 9.0 OS] This tv box adopts the latest Android 9.0 system and the 64-bit RK3328 quad-core chip, which makes it run faster and stronger than other tv boxes. Bring a seamless viewing experience.
[1G RAM + 8G ROM] The android tv box is designed with 1G RAM and 8G ROM. You can download applications, store movies to the tvbox for enough space.
[True 4K] 4K Support * 2K, UHD H.265. Supports multiple video playback formats, allows you to experience HD videos at the movie level in your home.
[VoIP interface]It support SIP protocol that is easy connect to private and public VoIP telephone systems and gives you the HD voice over internet.
Features:
Ø Chipset:RTL9603C,950MHz,RAM128MB
Ø SPI NAND FLASH:128MB
Ø WiFi:802.11b/g/n,2.4GHz
Ø FXS Interface:1*FXS（Support SIP Protocol）
Ø Echo cancellation: ITU-T G.168-2002,128ms
Ø Ethernet: 2*RJ45(1*10/100M,1*10/100/1000M),AutoMDIX
Technical parameters:
|
Items |
Unit |
Specifications |
|
PON standard |
|
Meet IEEE802.3ah standards and China's CTC3.0 standards |
|
Optical interface |
|
SC/PC connector,1 EPON interface(EPON PX20+ )Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Speed |
Gbps |
EPON: symmetric 1.25Gbps |
|
Operating mode |
|
Routing and Bridging Mode Well connect with OLTs of mainstream(Huawei\ZTE\FH,etc ) |
|
Interface |
data |
1FE 10/100Mbps 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna |
|
|
Telephone |
RJ11, SIP Protocol |
|
|
Data |
||
|
Layer2 |
|
IEEE802.1D&802.1ad bridging,802.1p CoS,802.1Q VLAN |
|
Layer3 |
|
IPv4,DHCP Client/Server PPPoE、NAT、DMZ、DDNS |
|
Multicast |
|
IGMP v2/v3、IGMP snooping |
|
Security and Firewall |
|
Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL |
|
Management Configuration |
|
Support CTC OAM2.0and2.1 Support ITU-T984.x OMCI Support WEB/TELNET/CLI/TR069 Control Button：RST - Reset Button |
|
OTT |
||
|
CPU |
|
Rockchip 3328 Quad-core Cortex-A53 up to 1.5GHz |
|
Memory |
|
DDRIII：1G byte |
|
Flash |
|
eMMc flash：8G byte |
|
GPU |
|
Mali-450MP2 GPU,Support OpenGL ES1.1/2.0 |
|
Interface |
|
1*HDMI,1*AV,1*IR,1*SPDIF,1*USB2.0, 1*USB3.0, 1*BT4.0, 1*microSD |
|
IR |
|
Infra Remote control |
|
OS |
|
Android TV 9.0 |
|
Video |
|
4K VP9 and 4K 10bits H265/H264 video decode, up to 60fps,1080P other video decoders (VC-1, MPEG-1/2/4, VP8),1080P video encoder for H.264 and H.265 |
|
Audio |
|
MP3,AAC,WMA,RM,FLAC,OGG |
|
Picture |
|
JPG,JPEG,MJPEG,PNG |
|
Adobe Flash |
|
Adobe Flash 10.1 support or above |
|
Language |
|
Chinese , English ,Germany ,Japanese, Korea etc. 24 languages |
|
DLNA |
|
Pushed the video, audio, pictures from phone or network to TV |
|
Environment |
||
|
Indicator |
LED |

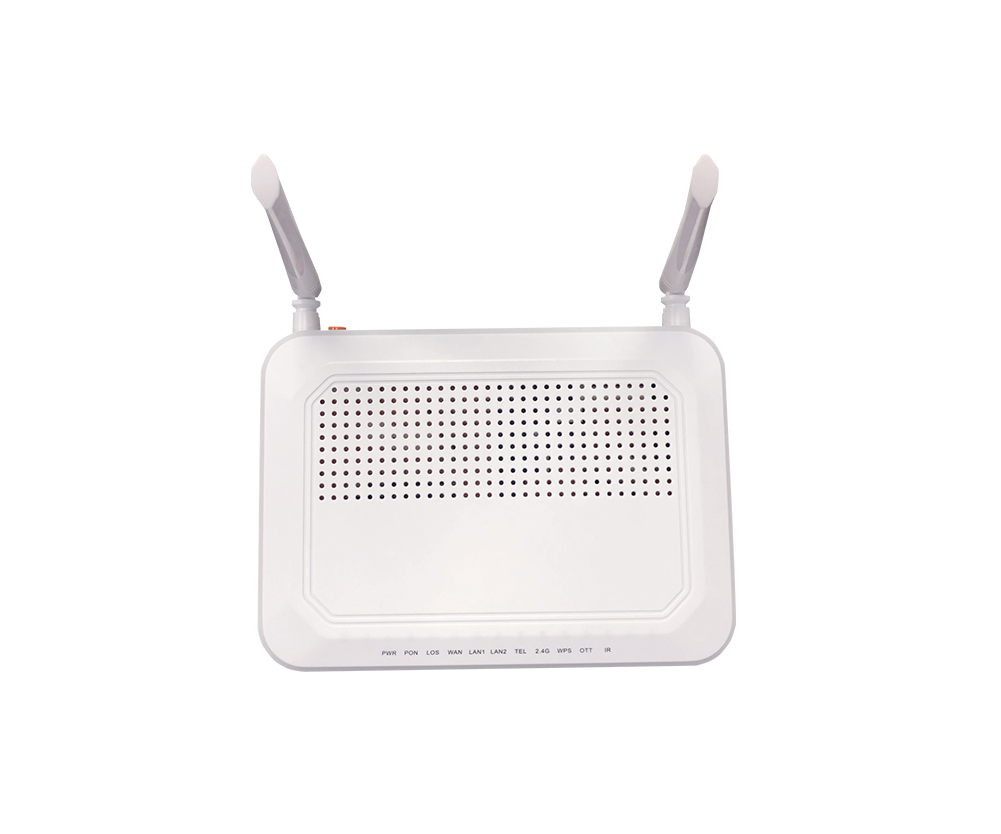

POWER, LOS, PON, WAN, WPS, WIFI, LAN1, LAN2, FXS,IPTV,IR |
|
Operating condition |
℃ |
Operating temp: -10 ~ +50 |
|
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V, 1.5A adapter |
|
Power consumption |
W |
≤10 |
|
Dimension |
mm |
200mm×143mm×37mm（L×W×H） |
|
Net weight |
Kg |
0.35 |

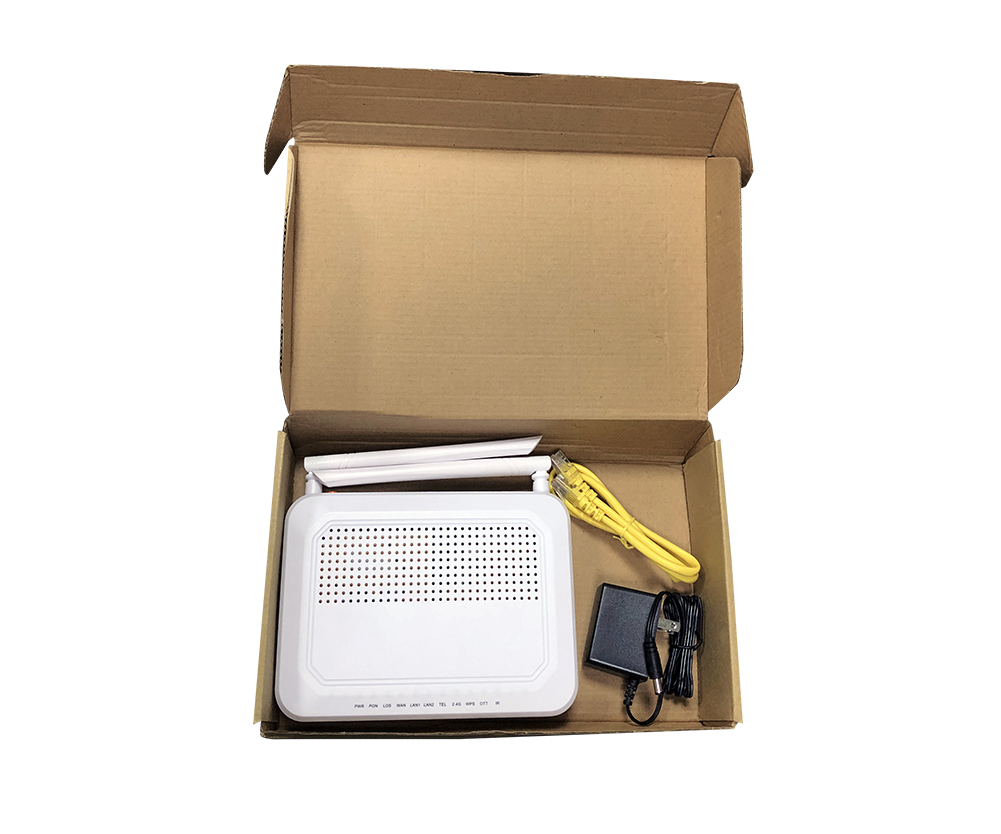

Shipping packaging:
|
Description |
Quantity |
Weight |
Carton Size |
|
Shipping packaging |
1pc/box |
0.54kg/box |
305*180*60mm |
