LTE CAT4 CPE
PTW4262
Product Description:
PTW4262 4G CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in 4G CAT.4, WIFI Hotspot, two Ethernet ports(WAN/LAN) and Web-UI management. It supports both 4G CAT.4 and IEEE 802.11 b/g/n protocols, to equip the users enjoying the high speed internet surfing experience.
It can also be applied to a wide temperature environment, and high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.
Features:
Ø 4G/3G (No 2G), Multi-mode, Multi-band, Global customizable
Ø LTE CAT4 Technology, 150Mbps Downlink robust speedrate
Ø WIFI，300Mbps robust downlink speedrate
Ø Wider coverage, up to 180Ms connection distance and 32 connected stations

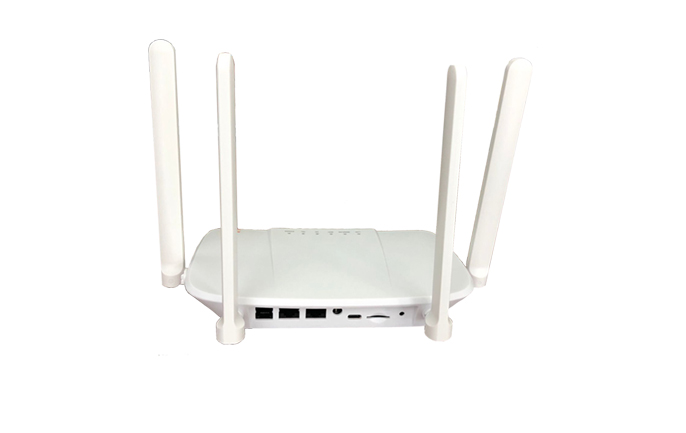

Ø 4 External Antennas for LTE and WiFi, super powerful signal strengths, high speed WAN/LAN, RJ11 voice optional, support 5V as input power
Ø Customization for Web-UI Tool, TR069, Multi-Languages…etc
Ø Support Ethernet WAN/LAN and Web-UI management
Ø Support remote software upgrade
|
Working Frequency |
PTW4262CN: FDD-LTE B1/B3/B5/B8; TD-LTE B38/B39/B40/B41; WCDMA B1/B5/B8 |
|
PTW4262EA1: FDD-LTE B1/B3/B5/B7/B8/B20; TD-LTE B38/B41; WCDMA B1/B5/B8 |
|
|
PTW4262EA2: FDD-LTE B1/B3/B5/B7/B8/B20; TD-LTE B40; WCDMA B1/B5/B8 |
|
|
PTW4262SA1: FDD-LTE B2/B4/B5/B7,B28A/B, TDD-LTE B40; WCDMA B2/B5 |
|
|
PTW4262SA2: FDD-LTE B1/B3/B7/B8/B28A/B; TDD B40; WCDMA B1/B8 |
|
|
PTW4262SA3: FDD-LTE B2/B4/B5/B7/B28A/B,B66; TDD-LTE B40; WCDMA B2/B5 |
|
|
4G Data Speed Rate |
3GPP R9, CAT. 4; Downlink: 150 Mbps / Uplink: 50Mbps |
|
WIFI |
IEEE 802.11 b/g/n/, 2.4GHZ 2T2R WLAN; Up to 32 stations |
|
WAN/LAN |
RJ45 I/F *1 or *2 WAN/LAN: 10/100Mbps |
|
Antenna |
External antenna, MIMO: 2 * 2 LTE Antennas, 2*2 WIFI Antennas |
|
RJ11 |
*1 |
|
SIM |
Standard SIM slot 2FF, 1.8V/3V |
|
LED |
LED indicators for different status |
|
Buttons |
PIN hole – Long press to reset the “Factory Settings”; Short Press for “WPS” |
|
Power |
12V/1A, DC Jack ; Support 5V external power supply (5V 2A, Recommended) |
|
USB I/F |
USB Type C |
|
Languages |
Chinese, English, WEBUI defined Multi-languages |
|
Intelligent WEBUI |
SMS, APN Mgmt, WIFI Mgmt, Router Mgmt, Safety Mgmt |
|
Voice |
VoLTE, CSFB |
|
FOTA |
Yes |
|
Protocols |
IPV4/IPV6, IP and MAC Address Binding, Traffic Control (IP QoS) Access Control, Local Management Remote Management (TR069) UPnP, DMZ, DDNS Dynamic IP/Static IP, HTTP, VPN, IP Sec, Firewall |
|
Weight |
0.275kg |
|
Size |
200mm*130mm*33mm(L×W×H) |
