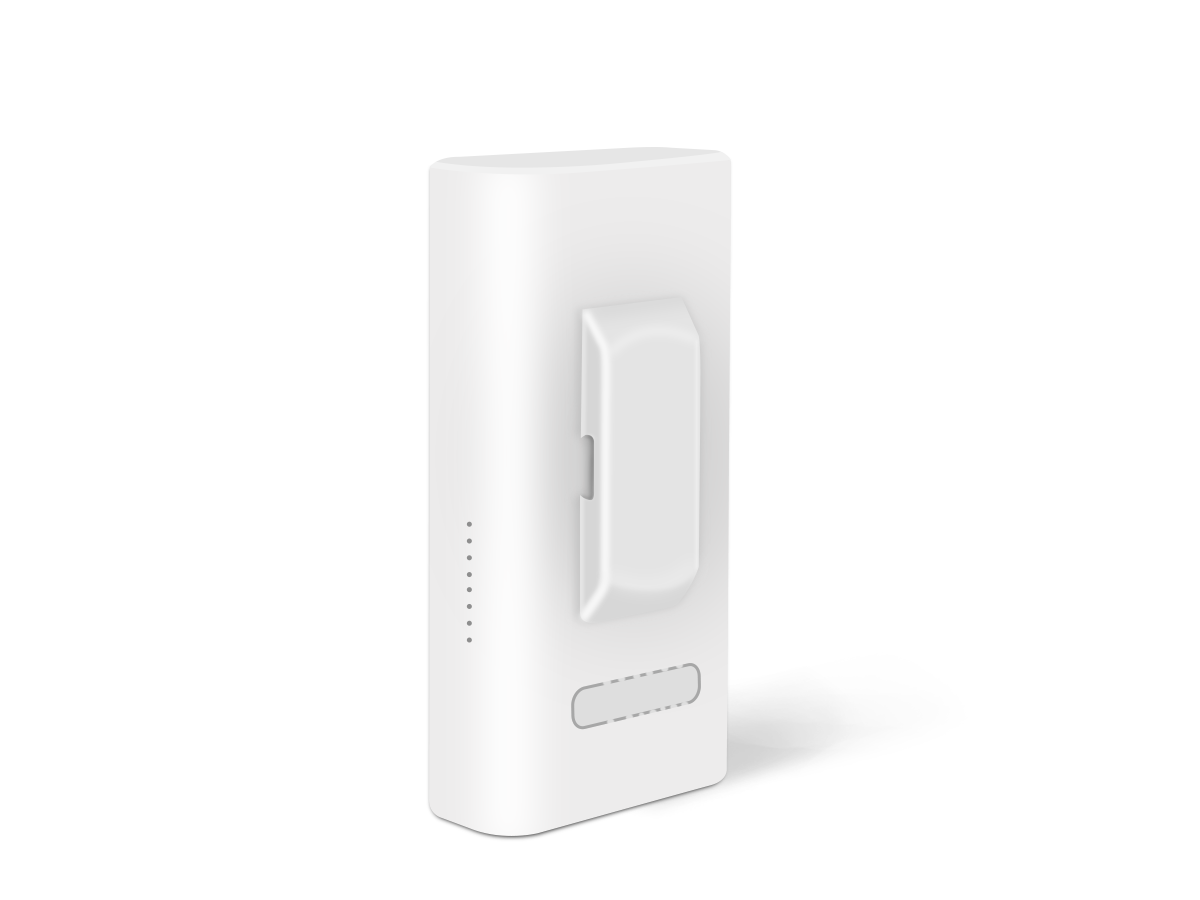

Outdoor CPE 5G CPE
PTW5752
Product Description：
PTW5752 is a new 5G outdoor CPE, which supports high-performance 5G technology. It supports POE power supply, has waterproof and lightning protection design.The device integrates the functions of 5G modem, router and access point, providing users with safe, reliable, convenient and flexible wireless broadband connection. supports 3G/4G/5G wireless and wired Internet at the same time, 5G full-frequency antenna, download speed up to 3.43Gbps
Support guide rail type installation, wall-mounted.
Features:
Ø Qualcomm Snapdragon™ X55
Ø Full compliance to 3GPP Rel15
Ø 5G Outdoor CPE Comply with ESD/lightning/water
Ø POE Power supply:48V/0.5A
Ø Support 2.5Gigabit LAN Port
Ø VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall,
Ø Local & Remote management
Ø Support Real-time display of status
|
Model Name |
PTW5752 |
|
Chipset |
Qualcomm SDX55 |
|
5G band
|
5G Sub-6: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77, n78, n79 LTE FDD: B1, B2, B3, B5, B7, B8, B20, B25, B28, B32 LTE TDD: B34, B38, B39, B40, B41, B42,B43 WCDMA: B1, B2, B5, B8 |
|
5G+LTE EN-DC Peak Data Rate |
5G Sub6G DL Peak Data Rate ：100MHZ+256QAM+4*4MIMO: 1.43Gbps |
|
MIMO for wireless |
5G SUB6G+LTE Support 4*4MIMO |
|
Wi-Fi Standard |
802.11a/b/g/n 2.4GHz 1*1MIMO ：150Mbps |
|
Management |
Web, CLI |
|
Physical interface |

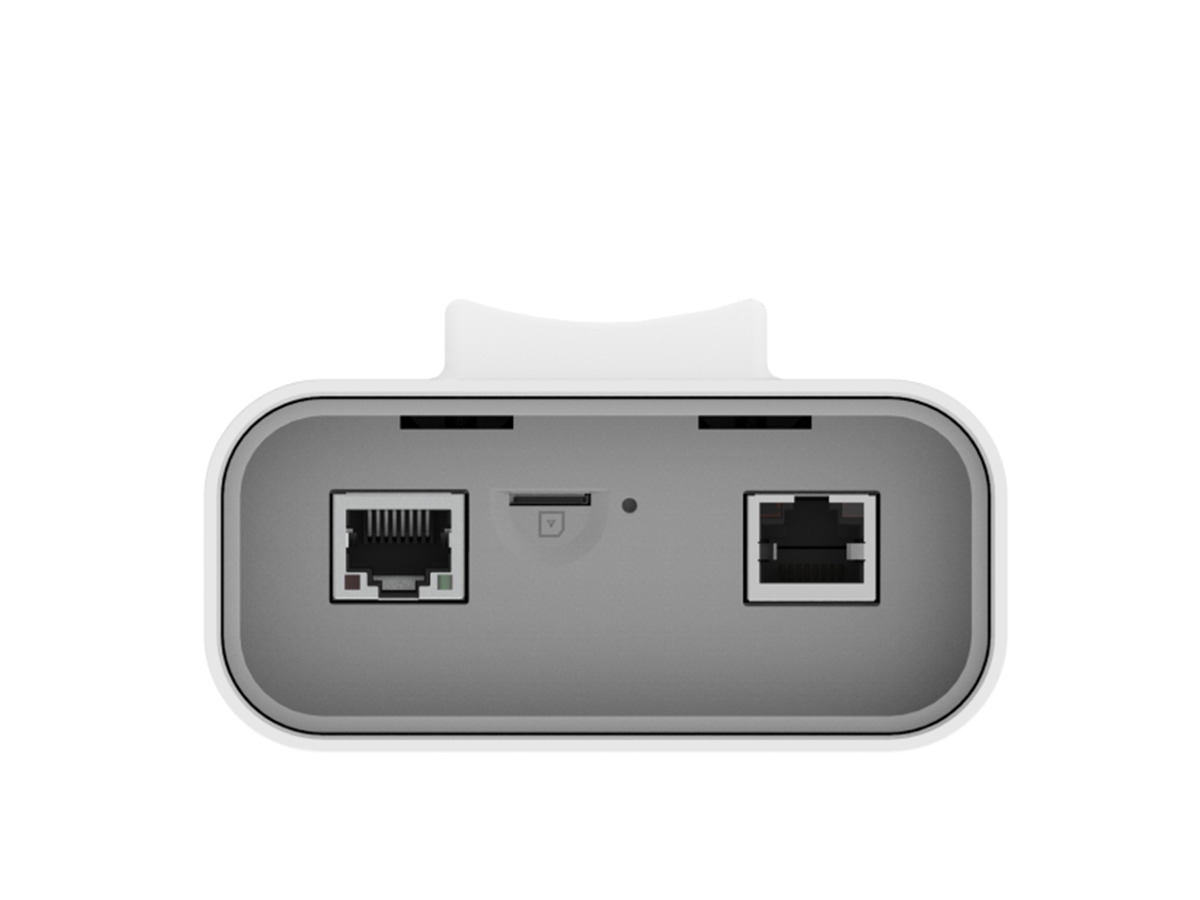

1*2.5Gibabit WAN/LAN RJ45 Port 1*1.8V&3V 4FF (U)SIM 1*POE RJ45 Port |
|
LED |
5G Network,4G Network, WIFI, |
|
Button |
Power,Reset |
|
Power Supply |
DC48V/0.5A ( POE) |
|
Working Temperature |
-20~70°C |
|
Working Humidity |
5%~95% |
|
Storage Temperature |
-40~85°C |
|
Weight |
0.81Kg |
|
Size |
100mm*56mm*204mm(L×W× H) |
