1. Product Description

PTW4262-V4 is CAT4 LTE, PTW4262-V6 is CAT6 LTE. They are developed based on several worldwideproven chipset solutions, integrated with the high technologies in LTE CAT4/CAT6, twoEthernetports (WAN/LAN) and Web-UI management. It supports TR069 remote management and FOTA. It supports both 4G CAT4/CAT6 and IEEE 802.11 b/g/n/ac protocols, to equip the users enjoying the high speed internet surfing experience.

It can also be applied to a wide temperature environment, and high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees.

2. Features:

Ø 4G/3G (No 2G), Multi-mode, Multi-band, Global customizable

Ø Web-UI management easy to set up and manage:

Ø software to help users easily manage all devices in the network

Ø High gain 2*2 MIMO antennas for LTE and WiFi, super powerful signal strengths, high speed WAN/LAN, RJ11 voice optional

Ø TR069 remote management and FOTA support

Ø Usage scenario: Indoor, Home, office, etc

Ø LTE CAT4 Technology, 150Mbps Downlink robust speed rate(PTW4262-V4)

Ø LTE CAT6 Technology,300Mbps Downlink robust speed rate(PTW4262-V6)

Ø WIFI，300Mbps(PTW4262-V4),1200Mbps(PTW4262-V6), robust downlink speed rate

Ø Wider coverage, up to 180Ms connection distance and 32 connected stations

Chipset	FASR1803+RTL8192ES

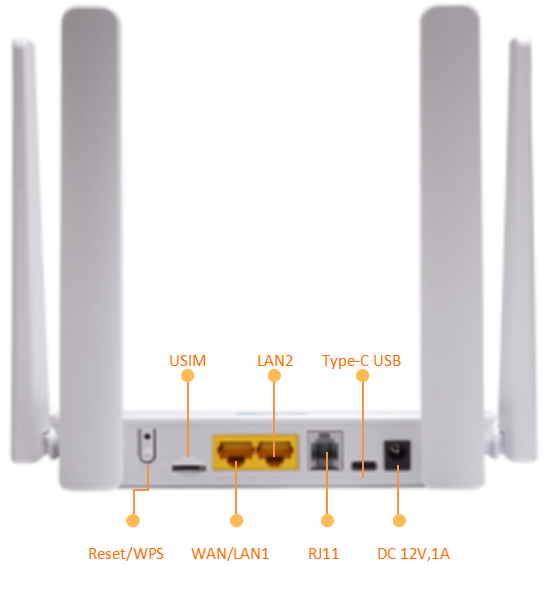

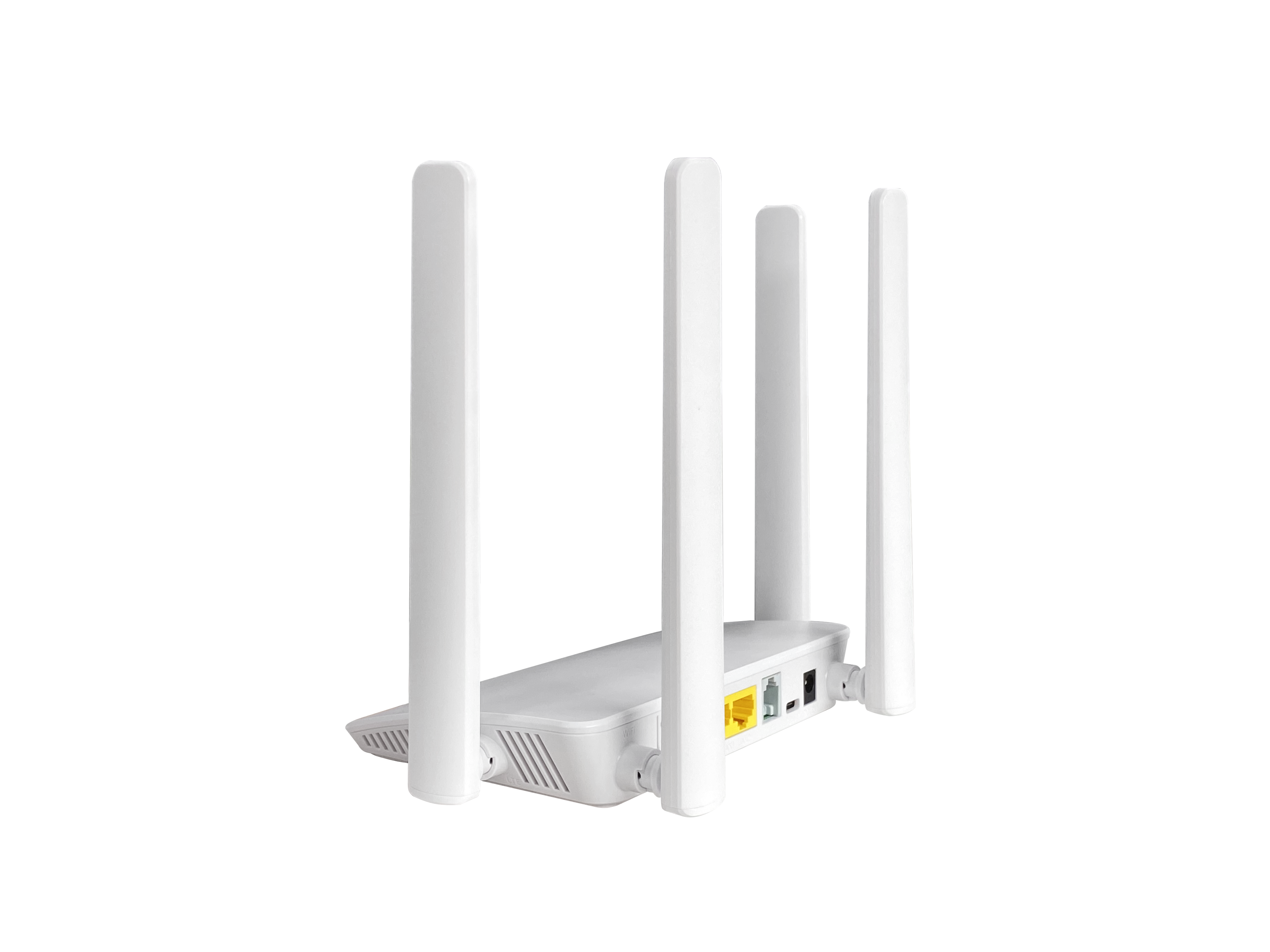

Interface	2FE+USB+USIM+1RJ11+WiFi4
Working Frequency	PTW4262-EU : FDD-LTE：B1/B3/B5/B7/B8/B20/B28; TDD-LTE：B38/B40/B41; WCDMA：B1/B5/B8; PTW4262-AU：FDD-LTE：B1\B2\B3\B4\B5\B7\B8\B28\B66 TDD-LTE：B40 WCDMA：B1\B2\B4\B5\B8
Bandwidth	1.4/3/5/10/15/20 MHz, comply with 3GPP
Modulation	DL: QPSK/16-QAM/64-QAM, comply with 3GPP UL: QPSK/16-QAM, comply with 3GPP
LTEAntenna	MIMO: 2 * 2 LTE Antennas
RF Power Level	LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
Data Rate	4G: 3GPP R9 Cat4, FDD：DL/UL up to 150Mbps/50Mbps, TDD：DL/UL up to 110Mbps/10Mbps
Data Rate	3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps
WIFI	IEEE 802.11 b/g/n/,20MHz/40MHz, 2.4GHZ ，up to 32 access points
WiFi Antenna	External, 2 x 2 MIMO
Wi-Fi Frequency	2.4GHz, 1~13Channel
Wi-Fi Transmit Power	17±2dBm @ 802.11b 15±2dBm @ 802.11g 14±2dBm @ 802.11n
Receiver input level sensitivity	<-76dBm at the antenna port,QPSK,11Mbps,1024 Byte PSDU @ 802.11b <-65dBm at the antenna port,64QAM,54Mbps,1024 Byte PSDU @ 802.11g -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte PSDU@ 802.11n(HT40)
Data Rate	802.11b:Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps
WAN/LAN	RJ45 I/F 1 or 2 WAN/LAN: 10/100Mbps
RJ11	*1, CSFB/VoLTE Voice
SIM	Nano SIM
USB Interface	USB Type C

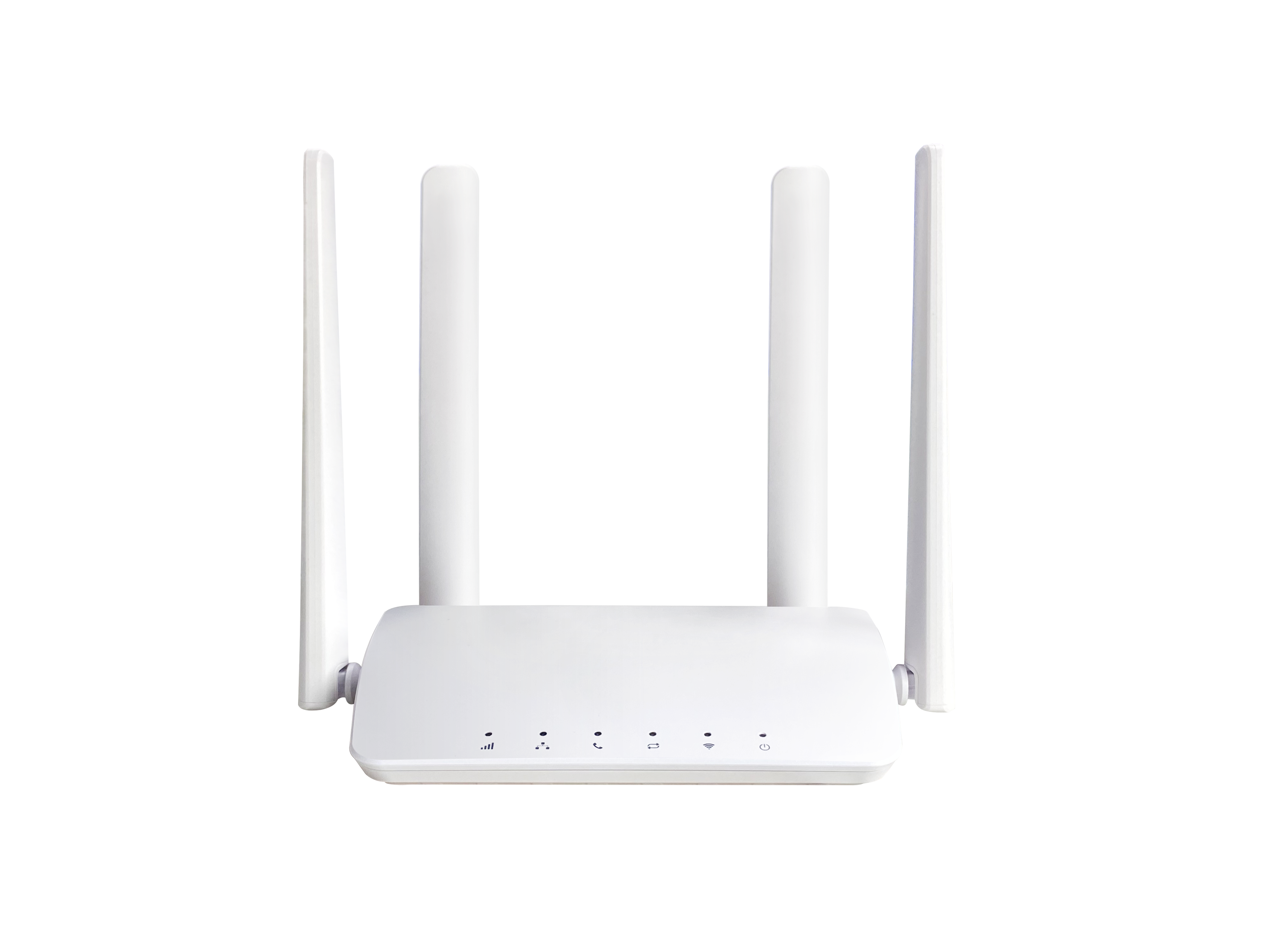

LED	LTE, WAN,LAN, RJ11, WiFi, Power
Buttons	PIN hole – Long press to reset the “Factory Settings”; Short Press for “WPS”
Power	12V/1A, DC
Power consumption	≤12W
Languages	Chinese, English, Spanish,WEBUI
WebUI	System:Connection Status/Statistics/Device Management/Power Mangement
	Language:Chinese/English/Español/Português, Customized
	Management: TR069/FOTA
	FW Upgrade: USB/FOTA
Mobile Service	SMS Manager Automatic APN matching according to USIM Auto Data Connection USSD Service optional PIN/PUK Management Network Mode Selection(3G/LTE/Auto)
Router	Support SSID APN management Access Control, Local Management
Voice	VoLTE, CSFB
L3	Support IPv4/IPv6 DHCP Server, Dynamic IP, Static IP UPnP, DMZ DDNS, NAT, USSD
Security	Support WPA2(AES)-PSK/, WPA-PSK/WPA2-PSK encryptions Support Firewall VPN Pass through contains IPSecVPN, PPTP VPN, L2TP VPN PORT Filtering/ Port Mapping/ Port Forwarding Traffic Control (IP QoS)
Operating System	Windows 7/8/XP/10 MAC OS 10.10+ Andriod 10/11 Linux Ubuntu 15.04+ Browser IE9+, Firefox, Google Chrome, Safari, Opera
Certification	CE, FCC, GCF(To be applied upon customer's requirement) RoHS Material
Operating condition	Operating temp: -20°C ~ +45°C
Storing condition	Storing temp: -20°C ~ +60°C
Weight	0.230kg
Size	150mm105mm30mm(L×W×H)
