Industrial-grade 5G CPE
PTW5451
Product Description：
PTW5451 5G CPE is an industrial-grade 5G CPE device for industrial control applications. The device integrates the functions of 5G modem, router and access point, providing users with safe, reliable, convenient and flexible wireless broadband connection. supports 3G/4G/5G wireless and wired Internet at the same time, 5G full-frequency antenna, download speed up to 3.3Gbps
Support guide rail type installation, wall-mounted.
Features:
Ø 5G high-speed transmission: support R15 5G NSA/SA
Ø Global 5G/4G/3G cellular connections
Ø VPN function: support GRE,L2GRE,PPTP,L2TP,IPSec etc.
Ø Multiple interfaces:RJ45, RS232, RS485,SIM Card slot,Relay Port & I/O Port etc
Ø Support Real-time display of status
Ø Support network time synchronization
Ø Support GPS/BD Positioning
Ø Support external reset key or software reset to restore factory Settings
Ø Support serial port to IP protocol (DTU function
Ø Support static routing, can add multiple routing table entries
Ø Support multiple firewall filtering rules
Ø Support user can monitor and manage the network status
Ø Support DNS, NAT, DHCP, DMZ, MAC address binding, port mapping, UPnP
Ø Support PPTP, L2TP, GRE, L2GRE
Ø Support NATT, DPD, support pre-shared keys
Ø Supports AES, DES, 3DES and third party algorithms
Ø Support MD5-HMAC, SHA1-HMAC
|
Model Name |
PTW5451 |
|
Chipset |
Qualcomm SDX55 |
|
5G band
|
5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 5G 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 DL：4 × 4 MIMO on n1/n3/n7/n38/n40/n41/n77/n78 UL：2 × 2 MIMO on n41/n77/n78 |
|
4G&3G band |
LTE Category: DL Cat 20/ Uplink Cat 13 LTE-FDD&TDD: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42 DL 4×4 MIMO: B1/B3/B7/B32/B38/B40/B41/B42 WCDMA: B1/B5/B8 |
|
5G/4G Data Rate |
5G SA Sub-6 GHz: 2.1 Gbps (DL) / 900 Mbps (UL) 5G NSA Sub-6 GHz: 3.3 Gbps (DL) / 600 Mbps (UL) LTE：2.0 Gbps(DL) / 150 Mbps (UL) |
|
5G Antenna /GPS/BD |
2~4 x External antenna ( SMA female head) External antenna ( SMA female head for optional) |
|
Ethernet interface |
4x 10/100/1000M |
|
SIM Card |
1x External (Bullet type) 1x Built-in ESim interface |
|
Industrial serial port |
RS232:1 Port ( 3.81mm green terminal ) RS485:1 Port (3.81mm green terminal ) |
|
Interface |

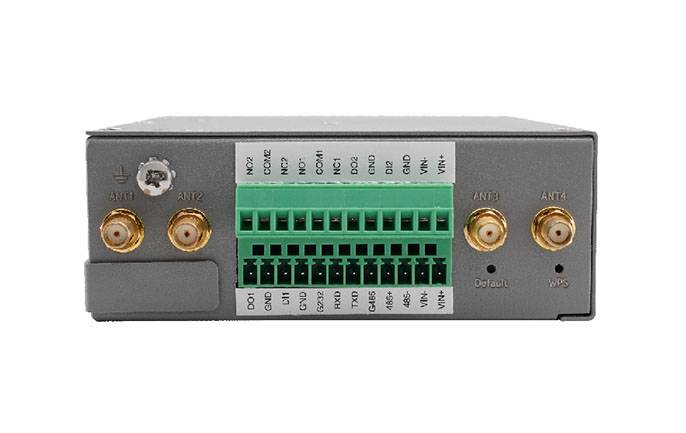

Relay: 2 ports ( 3.81mm interval industrial green terminal ) On-off: 2 ports input/output Storage: 1x External Micro SD card interface |
|
Management |
Support remote network management software, browser configuration Support for local logging and logging server logging Support upgrade for serial port, web page, network management and SD card Support for CLI debugging Support SNMP, TR069 protocol or custom Support protocol network management software |
|
Interface |

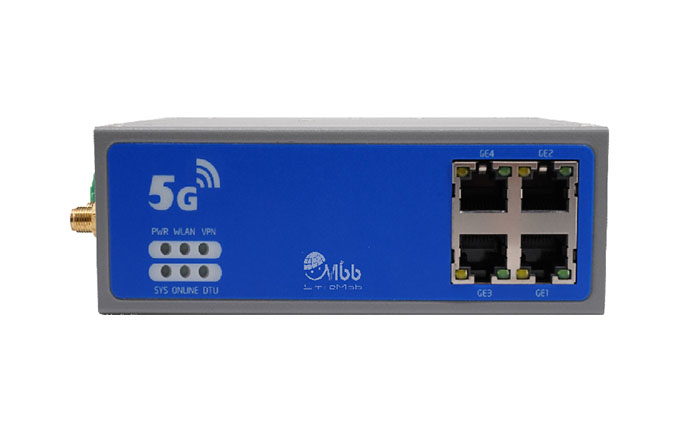

4 GE ports, 1CH RS232 Port, 1CH RS485 Port, 2CH relay interfaces, 2CH I/O, 1 external Micro SD card interface, 1x Built-in ESim interface, support GPS;1x External Micro SD card interface, 2~4 x External 5G antenna, External GPS/BD antenna (optional) |
|
LEDs |
PWR, WLAN, VPN, SYS, ONLINE, DTU |
|
Power Supply |
DC12~28V input ( 3.81mm interval industrial green terminal ) |
|
Waterproof |
IP31 |
|
Working Temperature |
-20~70°C |
|
Working Humidity |
5%~95% |
|
Storage Temperature |
-40~85°C |
|
Weight |
0.66Kg |
|
Size |
138mm*112mm*42mm(L×W×H) |
