1GE + 1FE + WIFI HGU XPON ONU
Dimension(mm):210*110*33(L*W*H)
Weight:0.24kg
Features
Specification
Application
Video

1GE + 1FE + WIFI HGU XPON ONU

PTF2202W



Product Description:

FIBERWAY PTF2202W is 1GE+1FE+WiFi XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.

It can also be applied to a wide temperature environment, and also has a powerful firewall function.


Features:

Ø HGU ONU, bridging and routing modes can be set

Ø Dual mode ONU compatible with popular EPON and GPON OLT

Ø Support loop detection, IGMP, IGMP snooping

Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service

Ø Support port speed, support for storm suppression

Ø Support 802.11n 2T2R speed up to 300Mbps

Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.

Ø Support Telnet, CLI, OMCI/OAM and Web management

Ø Support NAT, Firewall function

Ø Support remote software upgrade

Items Unit Specifications
PON standard
EPON IEEE802.3ah, GPON ITU-T G.984.x
Optical interface
SC/PC connector,1 EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM
Speed Gbps GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps
Wavelength nm Tx1310, Rx 1490
Interface data 1FE 10/100Mbps1GE 10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Wireless Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna
Indicator LED PWR, PON, LOS, WiFi, GE, FE
Operating condition Operating temp: -5 ~ +55
Storing condition Storing temp: -30 ~ +60
Humidity % 10~90(non-condensing)
Power supply V DC 12V, 1A adapter
Power consumption W ≤6
Dimension mm 210mm×110mm×33mm(L×W×H)
Net weight Kg 0.24

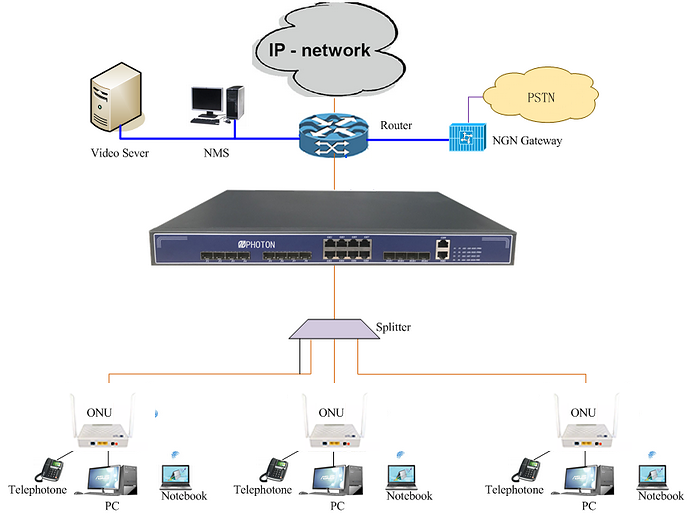

PON System-1.png
