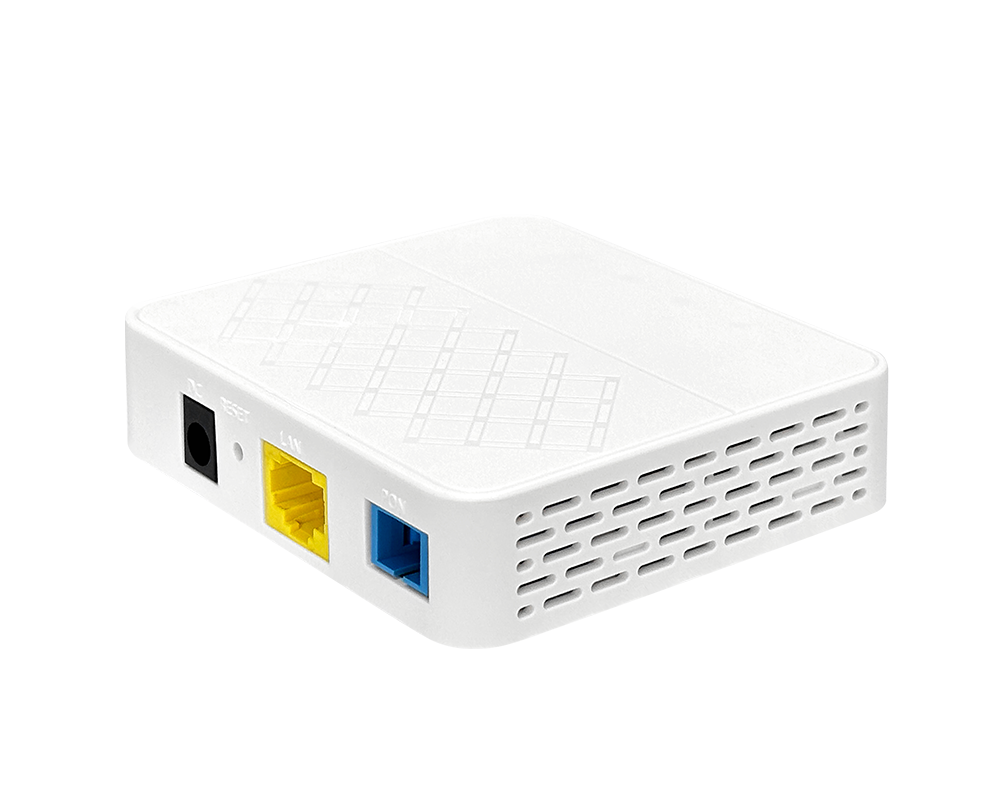

1GE HGU XPON ONU
PTF2351Z
1. Overview
FIBERWAYPTF2351Z is 1GE port XPON(GPON and EPON dual mode) HGU ONU.It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement ofGPON/EPON Equipment from China Telecom.Small size dual mode ONU can automatically detectOLTandswitch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.
2. Features
Ø HGU ONU with ZTE chip
Ø Compatible with popularGPON &EPON OLT
Ø Bridging and routing modes can be set
Ø Support loop detection, IGMP snooping
Ø 802.1Q VLAN, QoS for priority of service
Ø Support port speed, storm suppression
Ø Support Telnet, CLI,OMCI/OAM and Web management
Ø Support NAT, Firewall
Ø Support remote software upgrading
|
Items |
Unit |
Specifications |
|
PON |
||
|
PON standard. |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
Optical interface |
|
SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity:≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Indicator |
LED |
POWER, PON,LOS, LAN |
|
Operating condition |
℃ |
Operating temperature: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temperature: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,0.5A adapter |
|
Power consumption |
W |
≤4 |
|
Dimension |
mm |
90×80×25(L×W×H) |
|
Net weight |
Kg |
0.1 |
