Dimension(mm)：86*85*25(L*W*H)
Weight：0.1kg

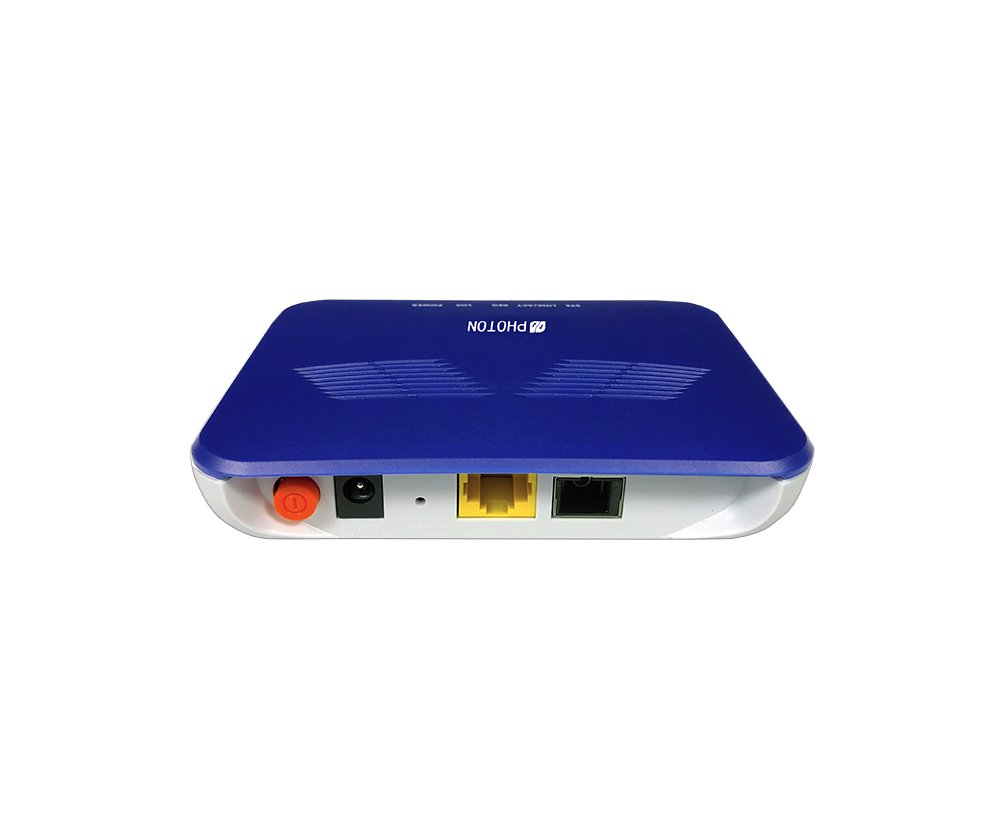

1GE HGU EPON ONU
PTF1351
Product Description：
FIBERWAY PTF1351 is EPON 1GE Port HGU ONU. It is designed for meeting the multi- services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.
Small size ONU can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø ZTE chip with 32M RAM
Ø Compatible with popular EPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø Support port speed, support for storm suppression
Ø Support Telnet, CLI, OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Items
Unit
Specifications
PONstandard.
EPON IEEE802.3ah
Optical interface
SC/PC connector,1 EPON interface(EPON PX20+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM
Speed
Gbps
EPON: symmetric 1.25Gbps
Wavelength
nm
Tx1310, Rx 1490
Interface
data
1*10/100/1000Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
Wireless
Compliant with IEEE802.11b/g/n, 300Mbps
Indicator
LED
SYS, REG, LINK/ACT
Operating condition
℃
Operating temp: -5 ~ +55
Storing condition
℃
Storing temp: -30 ~ +60
Humidity
%
10~90(non-condensing)
Power supply
V
DC 12V,0.5A adapter
Power consumption
W
≤4
Dimension
mm
86mm×85mm×25mm(L×W×H),
Net weight
Kg
0.1
Shipping packaging：
|
Description |
Quantity |
Weight |
Carton Size |
|
Shipping packaging |
1pc/box |
0.18kg/box |
110*106*58mm |
|
100pc/ctn |
19kg/ctn |
565*540*245mm |
