Features:

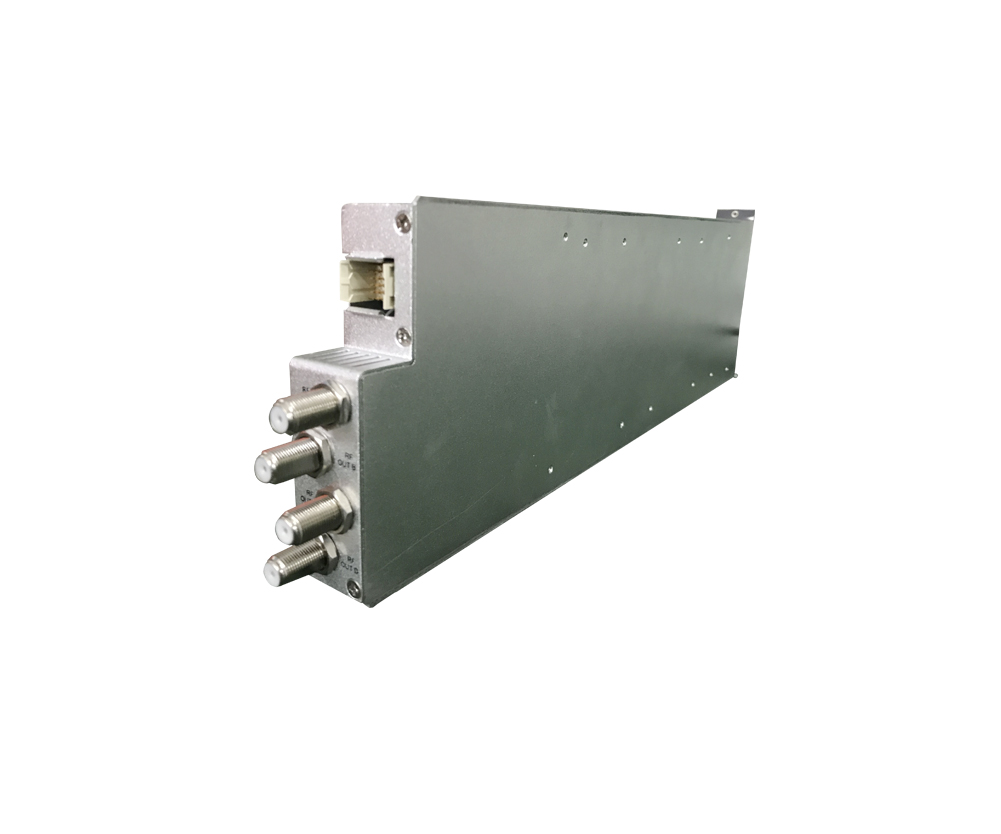

■ High integration, each PTR6322A module comes with four return receiver channel ,each platform can have 48 receiver channels
■ Receiver wavelength from 1100nm-1600nm and CWDM & DWDM
■ Bandwidth from 5MHz to 200MHz
■ High RF output（AGC Mode）: +105dBmV @ -9~ -3dBm input
■ Support AGC,MGC operating mode and RF can be shut off
■ Support Web, SNMP and local front panel management
|
Description |
Unit |
Value |
Conditions / Notes |
|
Wavelength Range |
nm |
1100~1600 |
|
|
Optical Input Power |
dBm |
-18 to +2 |
|
|
MGC |
dB |
30 |
|
|
AGC |
db |
15 |
FC/APC Optional |
|
Operational Bandwidth |
MHz |
5~200 |
|
|
RF Output Level |
dBmV |
105 |
@-6dBm |
|
Dimension (HxWxD) |
mm |
26 x 423x 130 |
|
|
Environmental Parameters |
|||
|
Operating Temperature |
℃ |
0~50 |
|
|
Storage Temperature |
℃ |
-25~65 |
|
|
Storage Humidity |
RH% |
≤95 |
No Condensation |
