Description

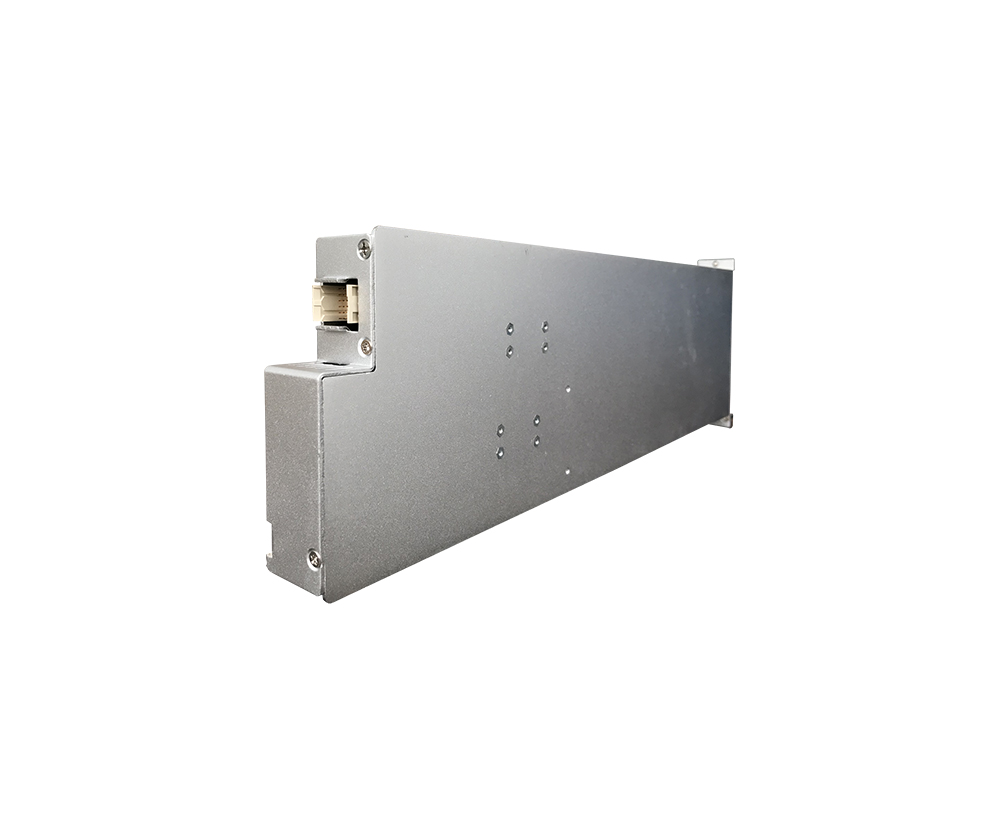

The PTA5102A Erbium Doped Fiber Amplifier (EDFA) series modules are designed for use in CATV application. It is used with the PTP3001 platform, a PTP3001 chassis can be installed 16 PTA5102A modules. The product offering is flexible enough to perform all the requirements of CATV applications. Optical Power adjustable is flexible for network link loss budget. The PTA5102A series EDFA also provide monitors by PTP3001 platform. The status of the unit can monitored either from the PTP3001 VFD display or remotely via ethernet based-SNMP with the PTN9210 management platform.
Features
1.Modular EDFA, large output optical power and high density
2. Output powers from 14~,26dBm
3.Output power adjustable -3~0dB
4.Wide input dynamic range
5.One or two output port each module
6. Low NF: Typical<5dB@ 0dBm input
7.Low power consumption
8. Automatic Power Control (APC) or Automatic Current Control (ACC)
9. Microprocessor real-time monitor work state via PTP3001 local VFD screen or NMS SNMP (Ethernet Interface)
|
Description |
Unit |
Value |
Conditions / Notes |
|
Optical Specifications |
|||
|
Wavelength |
nm |
1530~1560 |
|
|
Input Power |
dBm |
-10~+10 |
1550nm |
|
Output Power |
dBm |
14~26 |
@+6dBm Input |
|
Output Power Stability |
dB |
0.1 |
@+6dBm Input |
|
Noise Figure |
dB |
≤5 |
@0dBm Input |
|
Isolation (Input/Output) |
dB |
30 |
|
|
Return Loss (Input/Output) |
dB |
55 |
|
|
Polarization Dependent Gain |
dB |
max 0.5 |
|
|
Polarization Mode Dispersion |
ps |
max 0.5 |
|
|
Electrical Specifications |
|||
|
Communication Interface |
|
RJ45 |
|
|
Input voltage |
VAC |
90-265 |
-48 V DC(optional) |
|
Environmental Specifications |
|||
|
Operating Temperature |
℃ |
0 ~50 |
|
|
Storage Temperature |
℃ |
-25 ~65 |
|
|
Storage Humidity |
RH% |
≤95 |
No Condensation |
|
Mechanical Specifications |
|||
|
Dimension (LxWxH) |
mm |
130x26x423 |
|
|
Weight |
kg |
< 1.2 |
|
