Description

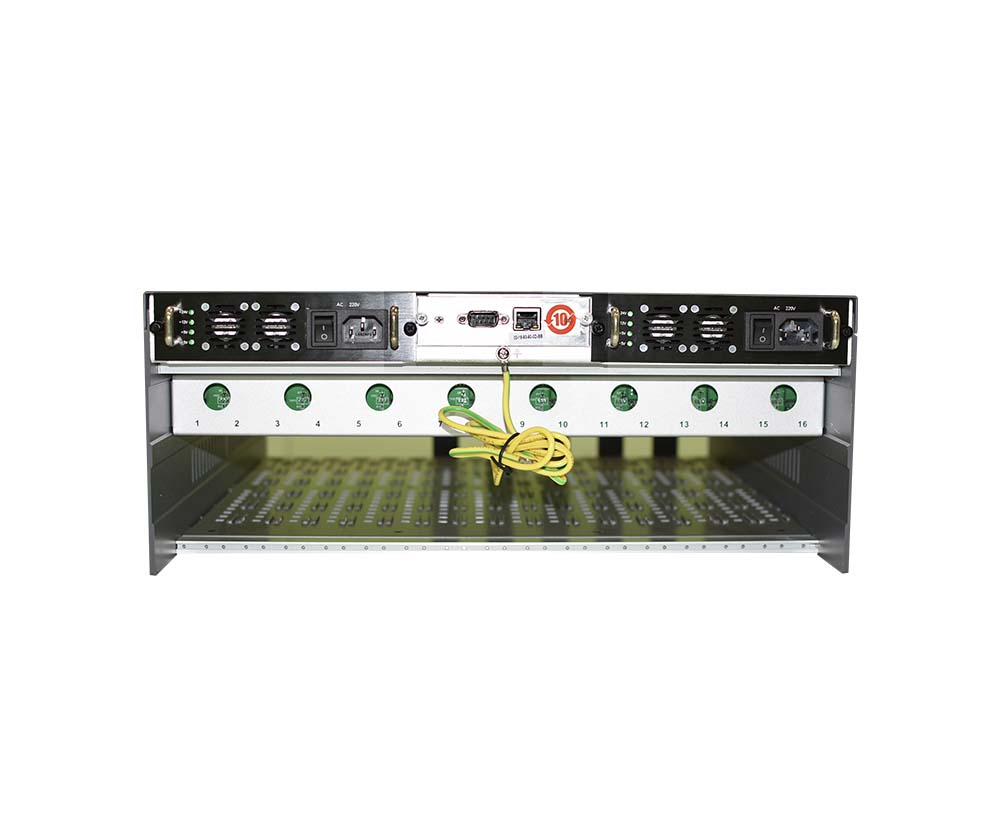

PTP3001_A system platform is designed to hold 18 modules for modular HFC head-end equipment, which include 2 power supply modules and 16 application modules. The application modules can be transmitters, receivers, return path transmitter and other modules available in the future.

The modules slide into the platform from the front of the rack. SPI bus at rear panel distributes power and control signals to application modules. The shared resource allows for the user configuration flexibility. The modular architecture provides space efficiency, more connections and bandwidth.

VFD screen displays the instant working status of all modules. Control buttons at the front panel allows user to configure various modules manually. For any abnormal event, it will give sound and light alarming.

Features

l 19 inch 4RU standard platform

l Increased operational density (16 active modules in a rack)

l Simplified installation and maintenance

l Power redundancy capable

l Accepts front panel plug-in modules with Plug-n-Play operation

l Instant working status monitoring and remote network management capability

l 8 small fans to Cool the 16 modules inside

l 3 large fans to Cool the 16 modules outside ,ensure thermal efficiency and reliability

l SNMP and Web browser monitors
