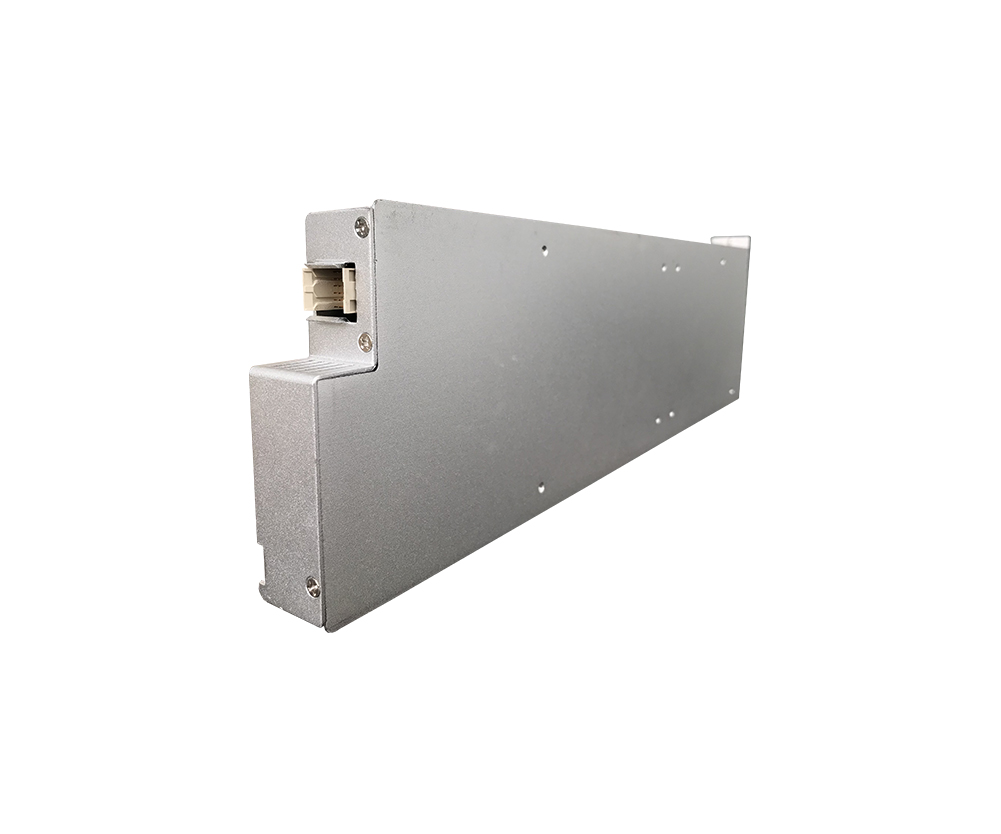

PTOS2x1H
Optical Switch Module
Switching time of less than 10ms
Supports manual and automatic switch mode settings
Switching threshold can be set
Wide Wavelength Range:1260-1650nm
Anti-shake detection
|
Parameter |
Unit |
Spec |
Note |
|
Wavelength |
nm |
1310-1550 |
|
|
Insertion loss |
dB |
≤1 |
|
|
Return loss |
dB |
≥50 |
|
|
Switch time |
ms |
≤10 |
|
|
Input power range |
dB |
-15`26 |
|
|
Channel cross lack |
dB |
≥55 |
|
|
Dimensions |
mn |
423*26*130 |
|
|
Weight |
Kg |
≤1.0 |
|
