8 PON Ports GPON OLT BCM
Dimension:442mm(L)* 220mm(W)* 44mm(H) Weight:3.0kg
Features
Specification
Application
Video

8 PON Ports GPON OLT

PTF3708E-BCM

Product Description:

PTF3708E-BCM GPON OLT designed with Broadcom chipset, which provides 8 GPON ports, 4 GE copper RJ45 ethernet ports, 2 SFP(GE) and 2SFP+(10GE) optical uplink ports , it has high reliability, highly dense broadband access and robust switching and routing abilities, is a new generation of broadband and multiservice access OLT devices oriented towards the service-integrated network.

PTF3708E-BCM OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.

Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, the whole device supports up to 1024 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used for “Triple-Play”(data voip and IPTV) applications.


Features:

Ø 1U 19 inch standard chassis GPON OLT with 8PON ports

Ø Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements

Ø Friendly EMS/Web/Telnet/CLI/SSH v1/v2 management

Ø Remote online ONT configuration and management(WAN, WiFi, POTS, etc)

Ø 16K Mac address

Ø Support IPv6,IPv4

Ø ARP proxy,2048 hardware Host Routes,2048 hardware Subnet Routes;

Ø Support MLD v1/v2 snooping(Multicast Listener Discovery snooping);

Ø Support 802.1X,Radius,Tacacs+;

Ø Support 4096 VLANs, port VLAN and protocol VLAN;

Ø Support VLAN tag/Un-tag ,VLAN transparent and QinQ transmission;

Ø Support port isolation;

Ø Support port rate limitation;

Ø Support 802.1D and 802.1W;

Ø Support static LACP,Dynamic LACP;

Ø QoS based on port, VID, TOS and MAC address;

Ø Access control list;

Ø IEEE802.x flow control;

Ø Port stability statistic and monitoring;

Ø Support IGMP snooping, 256 IP Multicast Groups

Ø DHCP server,DHCP relay,DHCP snooping,DHCP option82;

Ø Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

Ø Support ONT auto-discovery, auto configuration/link detection/remote upgrade of software;

Ø Support power-off alarm function, easy for link problem detection;

Ø Support broadcasting storm resistance function;

Ø Support ACL and SNMP to configure data packet filter flexibly;

Ø Specialized design for system breakdown prevention to maintain stable system;

Ø Support RSTP,IGMP Proxy;

Ø Support Dynamic Bandwidth Allocation (DBA)

Ø Support remote software upgrade,download firmware to OLT from web/tftp/ftp

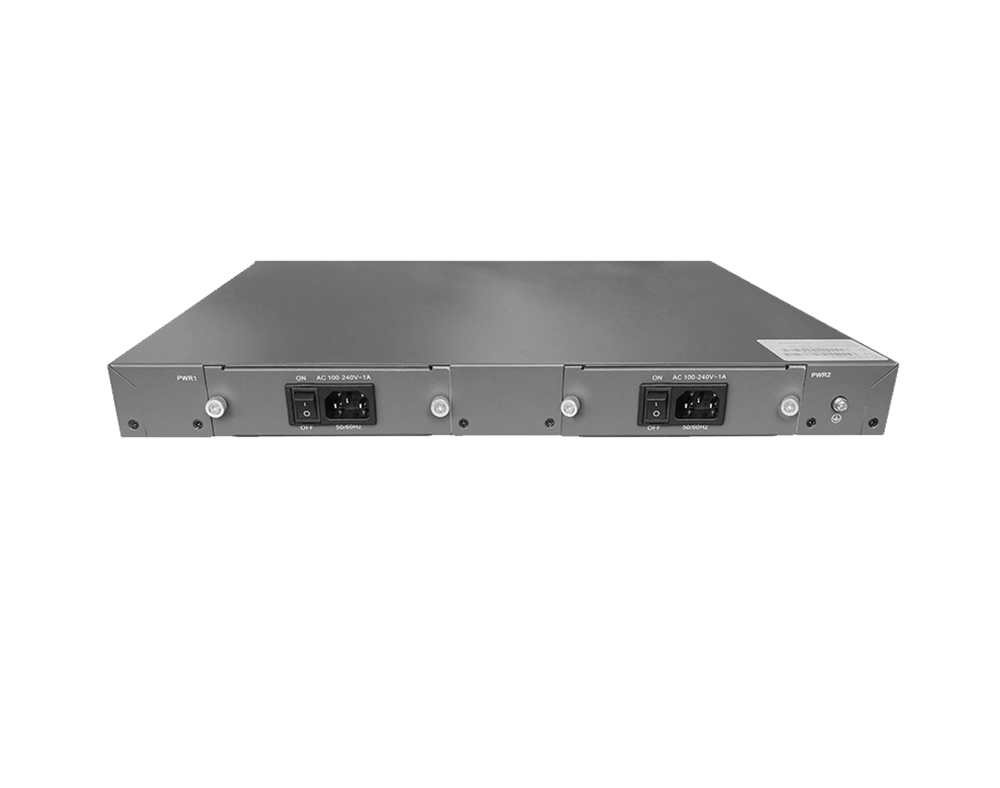

Ø Two power supply redundancy design



Technical parameters

Items

Unit

Specifications

PON standard.

GPON ITU-T G.984.x

PON interface

8*GPON SFP Ports (Class C+),  Receiving sensitivity: -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3+7dBmTransmission distance: 20KM. Max splitting ratio1:128

Speed

Downstream 2.488G

Upstream1.244G

Wavelength

nm

Tx1310, Rx 1490

Uplink

GE

4*copper Ethernet ports 10/100/1000M auto-negotiation

SFP GE

2*SFP(GE)

SFP 10GE

2* SFP+ (10GE)

USB

1*USB2.0(Type A)

Layer 3

Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

Management Mode

SNMPTelnetCLIWEBSSH v1/v2

Backplane

Gbps

128

MAC table

K

16

Operating condition

Operating temp: -5 ~ +55

Storing condition

Storing temp: -40 ~ +85

Humidity

%

5~90(non-condensing)

Power consumption

W

45

Dimension

mm

442mm×220mm×44mmL×W×H

Net weight

Kg

3.0Kg


Shipping packaging

Description

Quantity

Weight

Carton Size

Shipping packaging

1pcs /ctn

6.94kg/ctn

575*500*115mm

5pcs /ctn

34.95kg/ctn

597*525*645mm
