Dimension(mm)：210mm*173mm*43.6mm（L×W×H）
Weight：1.085kg

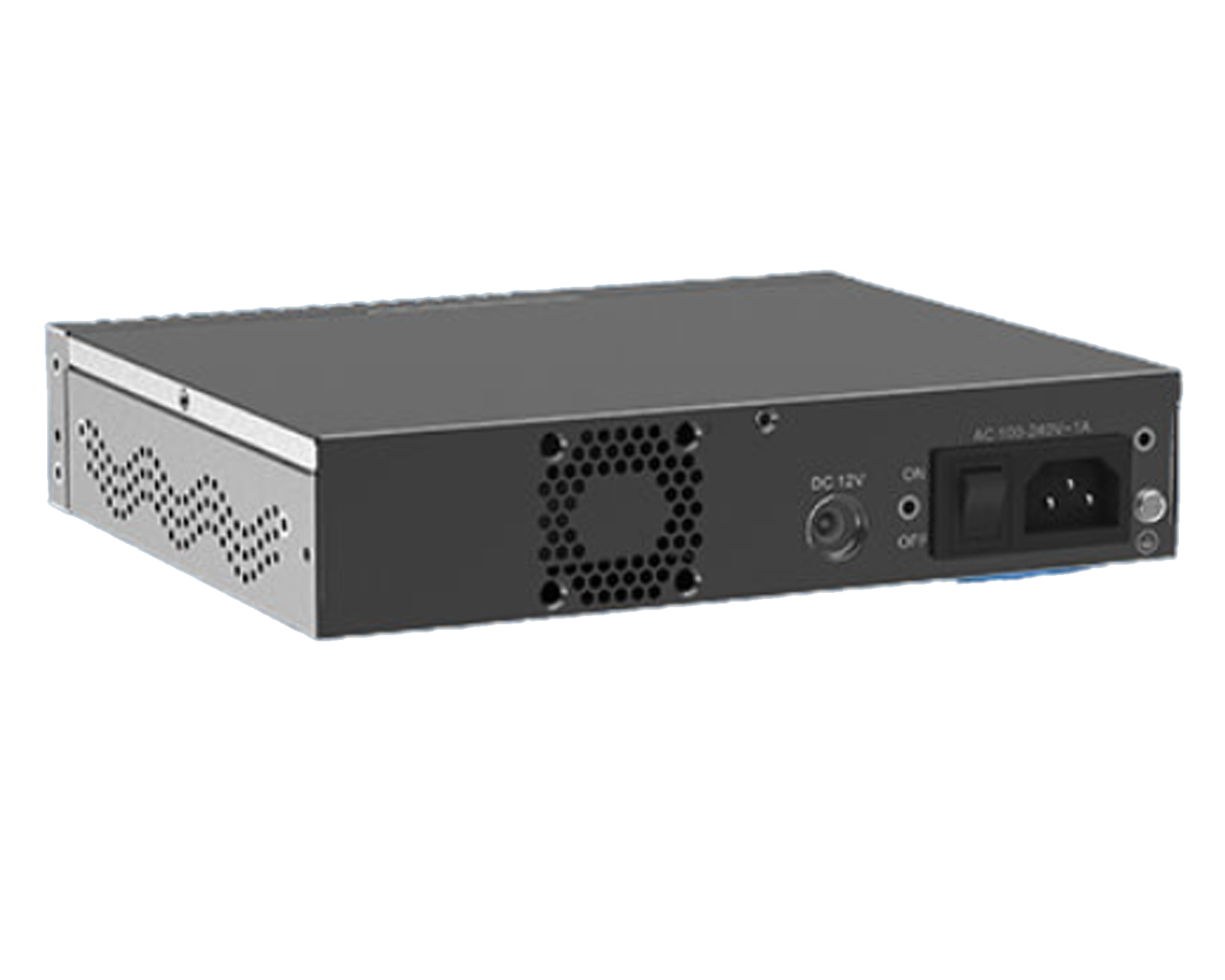

Two Ports GPON OLT
PTF3702Z
1. Product Description

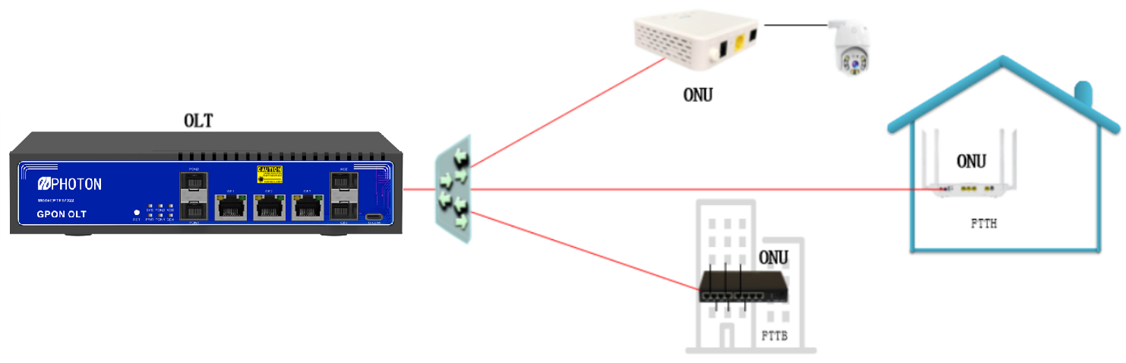

FIBERWAY PPTF3702Z is a high-performance, dual-PON-port GPON OLT designed specifically for fiber access networks and FTTB scenarios. It supports a split ratio of up to 1:128, offers a maximum transmission distance of 20 km, and provides high-speed bandwidth of 1.25 Gbps upstream and 2.5 Gbps downstream. The V1600GT-Z is widely applicable in various network environments, including SOHO and small business offices, making it an ideal choice for stable, reliable performance and exceptional value.
2. Features:
Ø 1U 19 inch standard box XG(S)-PON OLT with8 PON ports
Ø High Performance Chipset
Ø Mini Metal Shell Easy Deployment
Ø 2 PON ports GPON OLT with 10GE(SFP+) Uplink
Ø IPv4 /IPv6 ,Support IPv6 Ping,IPv6 Telnet,IPv6 routing
Ø Small and lightweight, supports OLT to be close to users, saves on investment fees in trunk fibers
Ø Layer 3 Route function
Ø DHCP server,DHCP relay,DHCP snooping, DHCP option82
Ø IGMP snooping, L2 and L3 Multicast Groups
Parameters
|
Item |
Unit |
Parameters |
|
PON interface |
|
2*SFP Slots (Class C++/Class C+++/Class C++++) Transmission Distance:20KM Upstream 1.244Gbps, Downstream 2.488Gbps , 1:128(Recommended) Connector：SC/UPC |
|
Wavelength |
nm |
TX 1490nm, RX 1310nm |
|
Uplink |
SFP |
2*SFP(GE)/SFP+(10GE) |
|
上行链路Management |
RJ45 |
3*1000M/100M/10M (RJ45) |
|
|
|
WEB/Telnet/CLI/SNMP Port Status monitoring and configuration management Online ONT configuration and management User management Alarm management |
|
kplane Bandwidth |
Gbps |
38 |
|
Port Forwarding Rate |
Mpps) |
28.272 |
|
CONSOLE port |
|
1*USB-COM(Type-C) port |
|
MAC table |
K |
8 |
|
Multicast |
|
IGMP snooping 256 IP Multicast Groups |
|
DHCP |
|
Support DHCP server,DHCP relay,DHCP snooping Support DHCP option82 Support DHCPv6 server,DHCPv6 relay |
|
L2 |
|
Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support VLAN translation、QinQ and P2P Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Access control list IEEE802.x flowcontrol Port stability statistic and monitoring |
|
L3 |
|
Support dynamic/static ARP Support WAN (DHCP/PPPOE/Statics) Support static routing, NAT, DMZ Support QoS based on DSCP, MAC, IP, L4 port, protocol, etc. Support ACL based on source MAC address, source IP address, source L4 port, destination IP address, destination L4 port, protocol type, etc. |
|
IPv6 Feature |
|
Support IPv6 Ping, IPv6 Telnet, IPv6 routing Support ACL based on source MAC address, source IPv6 address, source L4 port, destination IPv6 address, destination L4 port, protocol type, etc Support IPv6 SLAAC Support MLD v1/v2 snooping (Multicast Listener Discovery snooping) |
|
GPON Function |
|
Tcont DBA Gemport traffic In compliant with ITU-T G.984.x standard Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, etc Support ONT auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function |
|
Operating condition |
℃ |
Operating temp: 0 ~ +60 |
|
Storing condition |
℃ |
Storing temp: -40 ~ +70 |
|
Humidity |
% |
5~85(non-condensing) |
|
Power Supply |
|
Working Voltage Range: 85~265V, Rated Voltage: 220V DC Power Adapter:DC 12V/2A |
|
Lightning protection level |
KV |
Power supply:6KV Device Interface:4KV |
|
Dimension |
mm |
210mm*173mm*43.6mm（L×W×H） |
|
Net weight |
Kg |
1.085 |
