18 Port 10G Uplink 2.5G Ethernet Switch

PTD1818-16Q2X

1. Overview

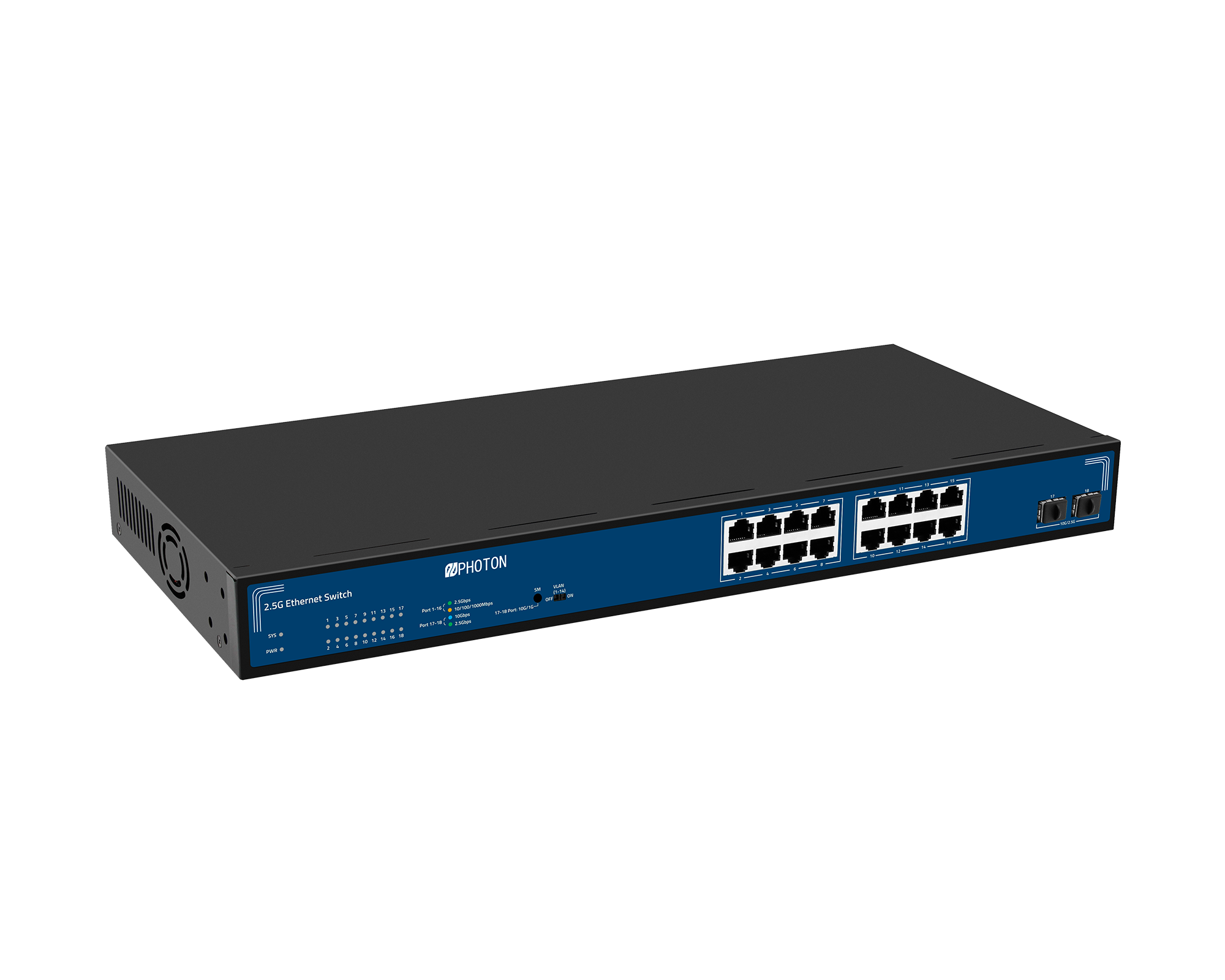

PTD1818-16Q2X is a 18 Port 10G Uplink 2.5G Ethernet Switch, adopting a high-quality and high-speed network chip solution. This switch has 16* 100/1000/2500M RJ45 ports and 2*10G SFP+ ports, providing seamless connection for 10/100/1000/2500M Ethernet, making it easy to manage and maintain. This product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.

2. Features

Ø 16*100/1000/2500M RJ45 ports+2*10G SFP+ ports

Ø Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x

Ø Ethernet ports support 10/100/1000/2500M adaptive

Ø Support automatic port rollover(Auto MDI/MDIX)

Ø Panel indicators monitor working status and assist in fault analysis

Ø Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Ø Surge Protection: General 6KV, Differential 2KV(level C), ESD 8KV air, 6KV contact(level C)

I/O interface
Power	AC 100-240V
Ethernet	16* 100/1000/2500 Mbps RJ45 port 2* 10G SFP+ port
Performance
Bandwidth	120Gbps
Packet Forwarding Rate	89.28Mpps
MAC Address Table	16K
Transfer Method	Store and forward
Network Standard
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control)
Industry Standard	EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) 2.5GBase-T: Cat5 or above UTP/STP(≤100m) 5GBase-T: Cat6 or above UTP/STP(≤100m) 10GBase-T: Cat6 or above UTP/STP(≤100m)
Optical Fiber Medium	1000BASE-SX: 62.5μm MMF(Multi mode optical fiber)(Minimum range:2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range:2m～550m) or 0μm SMF(Minimum range:2m～5km) 2500BASE-X: G.652D SMF(Single-mode optical fiber)(Minimum range:2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range:2m～300m) 10GBASE-LR: IEC and B1.1 and B1.3 SMF(Minimum range:2m～10km)
Environmental Standard
Working Environment	Operating temperature: 0~40°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~95%, no condensation
Functional Indication
PWR	On: Powered on Off: Powered off
1-16 Network Port	Green on: 2.5G Link connect normal Yellow on: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
17-18 Green Light Port	On: 10G Link connect normal Off: Link off Flashing: Data transmitting
SM	The default speed of the optical port is 10G/2.5G, and after pressing and holding for 10 seconds to switch, it becomes 10G/1G
Dialing	On: Vlan mode is enabled (ports 1-14 are isolated and communicate with ports 15-18 of the uplink) Off: Vlan mode is off (all ports communicate with each other)
Physical Specification
Structural Dimension	Product size: 44020544mm Package size: 50029085mm Product weight: 2.21KG Packing weight: 2.72KG
Packing information	Outer box size: 520445310mm Packing quantity: 5 PCS Packing weight: 14.6KG
Supply Voltage	AC 100-240V 12V 4A
Power	Maximum 36W
Packing list	1 switch, 1 adapter, 1 manual, 1 certificate
Order info
PTD1818-16Q2X	18 Port 10G Uplink 2.5G Ethernet Switch

Application Environment

Ø Metropolitan area optical fiber broadband network: telecommunication, cable TV, network system integration, such as number, according to network operators

Ø Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network

Ø Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications

Ø Real-time monitoring: real-time control signal, image and data transmission
