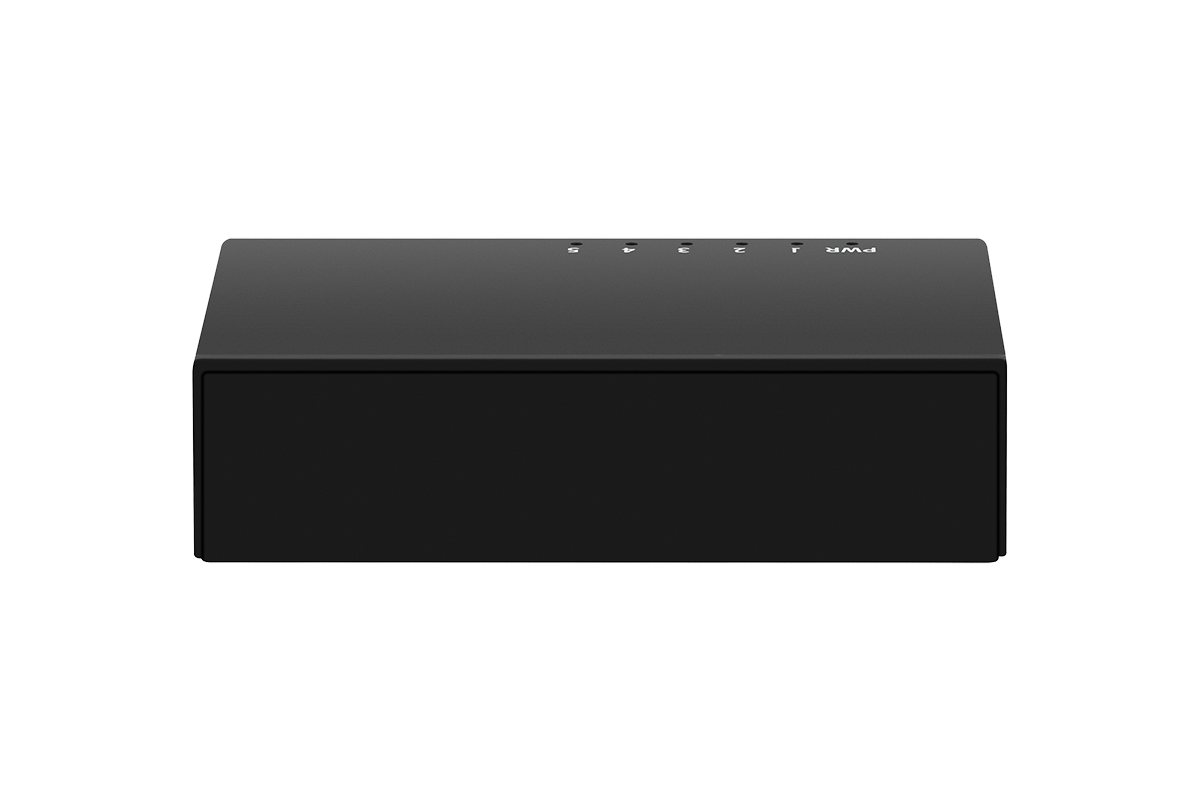

5 Ports Gigabit Ethernet Switch
PTD1505-5G
1. Overview
PTD1505-5G is a 5-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has5 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart simple switching working mode, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
2. Features
Ø 5*Gigabit RJ45 Ports
Ø Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard
Ø Ethernet ports support 10/100/1000M adaptive
Ø Support Auto MDI/MDIX
Ø Panel indicators to monitor working status and help fault analysis
Ø Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
Ø Port 1-2 supports Qos data priority
Ø Support port lightning protection Surge: common mode 2KV
3. Application Environment
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
|
I/O Interface |
|
|
Power |
DC 5V |
|
Ethernet |
5*Gigabit RJ45 Ports |
|
Chip Solution |
|
|
Main Chip |
EN8850DN |
|
Performance |
|
|
Switching Capacity |
10Gbps |
|
Throughput |
7.44Mpps |
|
MAC Address |
1K |
|
Jumbo Frame |
2Kbytes |
|
Transfer Mode |
Store and forward |
|
Network Parameters |
|
|
Network Protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
|
Certification |
|
|
Safety certificate |
CE、FCC、RoHS |
|
Environmental Standards |
|
|
Working Environment |
Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensin |
|
Indication |
|
|
LED Indicators |
PWR（Power indicator）、Link（Network Link） |
|
PWR |
On: power on Off: no power |
|
Link |
On: 10/100/1000M link connection is normal Blinking: Data transmission is normal Off: link failure |
|
Mechanical |
|
|
Structure Size |
Product Size：87*54*23mm Packing Size：90*88*58mm Product Weight：0.13Kg Packing Weight：0.20Kg |
|
Packing Info |
Outer box size: 470*320*372mm Packing quantity: 100 PCS Packing weight: 21KG |
|
Operating Voltage |
Power interface: DC2.1 Switch input voltage: DC 5V1A |
|
Total power |
5W |
|
Packing list |
1. Switch：1 PCS 2. User manual ：1PCS 3. Warranty ：1 PCS 4. Power Adapter：1 PCS |
|
Ordering Info |
|
|
PTD1505-5G-CE |
5 GE Ports, CE certified power supply |
