26-Port Gigabit Ethernet Switch
PTD1526-24G2S
1. Overview
PTD1526-24G2S is a 26-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 24 Gigabit RJ45 ports and 2 1000M SFP ports , can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart simple switching working mode, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
2. Features
Ø 24*10/100/1000M RJ45 Ports+2*1000M SFP Ports
Ø Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards
Ø Ethernet port 10/100/1000M rate auto adaptive
Ø Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
Ø Support Port Auto-flip (Auto MDI/MDIX）
Ø Panel indicators to monitor working status and help fault analysis
Ø One-key smart switch, supports VLAN,Default , Extend
Ø Port 1-8 supports Qos data priority
3. Application Environment
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
|
I/O Interface |
|
|
Power |

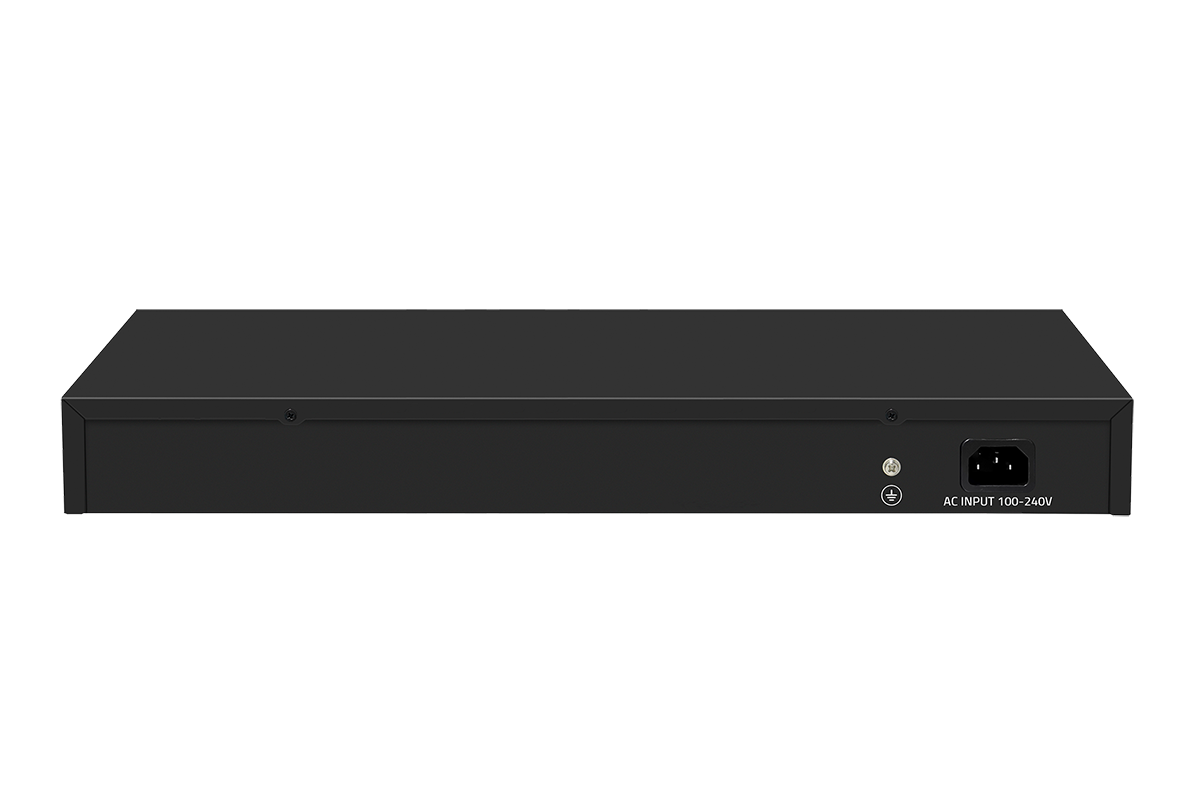

Input: AC 100-240V, 50/60Hz |
|
Ethernet |
24*10/100/1000Mbps RJ45 Ports 2*1000M SFP Ports |
|
Performance |
|
|
Switching Capacity |
52Gbps |
|
Throughput |
38.68Mpps |
|
Packet Buffer |
4Mbit |
|
MAC Address |
8K |
|
Jumbo Frame |
9.6Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
|
Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
|
Protection |
|
|
Security Certificate |
CE、FCC、RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature：-20~50°C Storage Temperature：-40~80°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
|
Indication |
|
|
PWR（power supply） |
Lighting：Powered Un-Light：No Power |
|
Link/Act(1-26) |
Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |
|
1000M(1-26) |
Lighting：1000M Link Connecting Un-Light：10/100M Link Connecting or Disconnect |
|
DIP Switch |
VLAN : Port Isolation, 1-24 ports are isolated each other, all communicate with uplink port 25/26; Default : Default mode, all port can communicate with each other; Extend : Link extension mode, 9-24 ports supply data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
|
Mechanical |
|
|
Structure Size |
Product Dimension (L*W*H): 440*204*44mm Package Dimension (L*W*H): 500*290*85mm N.W：2.2kg G.W：2.7kg |
|
Packing Info |
Carton MEAS：520*445*300mm Packing Qty：5 units Packing Weight：14.5KG |
|
Power Voltage |
Input Voltage ：AC 100-240 V Power supply：12V2A |
|
Package List |
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair |
