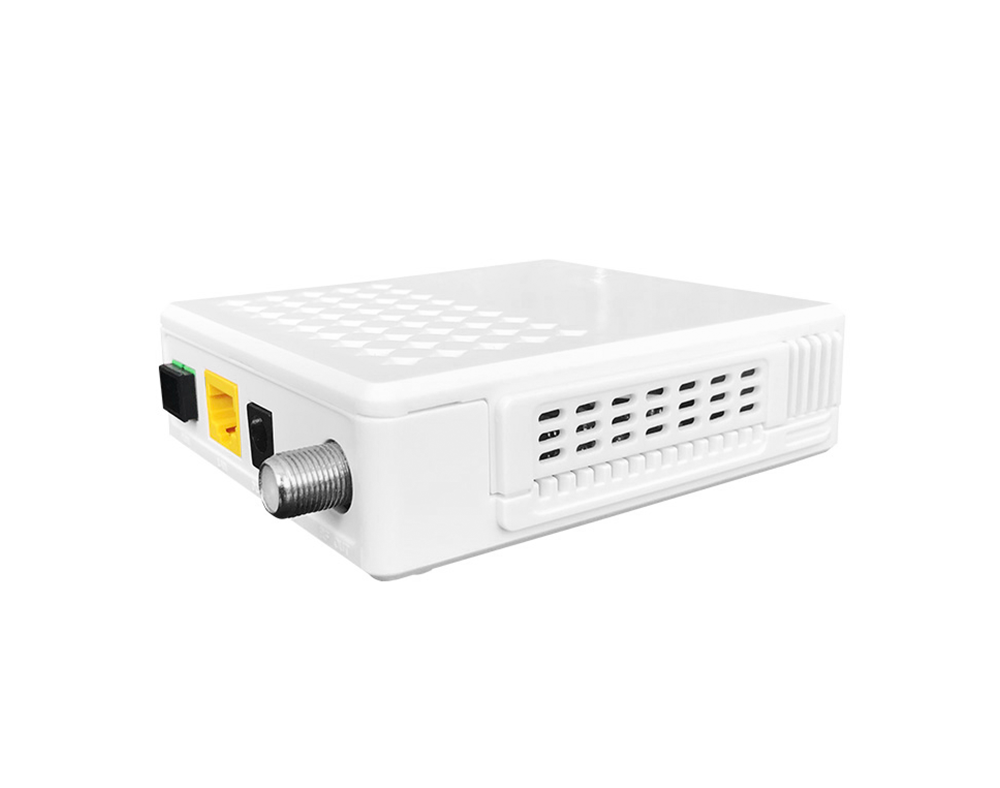

1GE+CATV XPON HGU ONU
PTF2331
Product Description：
FIBERWAY PTF2331 is 1GE+CATV XPON(GPON and GEPON dual mode) HGU ONU. It is designed to meet the multi-service needs of fixed network operators or cable operators. It is widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, CATV, video surveillance and other requirements. It is based on mature GPON and Gigabit GEPON technology. it has high stable performance, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and GEPON technical requirement, such as ITU-T G.984.x and IEEE802.3ah technical standards. Dual mode ONU can automatically detect OLT type and switch the working mode, it can be used as GPON or GEPON.
It can also be applied to a wide temperature environment, and also has a firewall function.
Features：
Ø HGU ONU with ZTE chip
Ø Dual mode ONU compatible with popular GEPON and GPON OLT
Ø Bridging and routing modes can be set
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support loop detection, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, storm suppression
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall
Ø Support remote software upgrading
|
Description |
Unit |
Value |
|
PON |
|
|
|
PON standard. |
|
GEPON IEEE802.3ah, GPON ITU-T G.984.x |
|
Optical interface |
|
SC/PC connector, 1 GPON/GEPON interface(GEPON PX20+ and GPON Class B+) Receiving sensitivity:≤-28dBmTransmitting optical power: 0 ~ +5dBmTransmission distance: 20KM
|
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; GEPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490, CATV 1550 |
|
Interface |
data |
1GE 10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Electrical Specifications |
||
|
Optical Connector Type |
|
SC/APC |
|
Input optical power range |
dBm |
-18~ +2 |
|
Optical return loss |
dB |
≥45 |
|
Wavelength |
nm |
1550 ±10 |
|
RF Output Connector |
F |
Imperial or metric RF female connector |
|
RF Bandwidth |
MHz |
47～1000 |
|
Slope |
dB |
0~2 (47～1003MHz) |
|
RF impedance |
Ω |
75 |
|
RF output return loss |
dB |
≥14 dB |
|
RF output lever |
dBuV |
76±2（@-15~0dBm） |
|
AGC Range |
dBm |
0 ~ -15 |
|
C/N |
dB |
≥47 @-7dBm |
|
CTB |
dB |
≥60 @-7dBm |
|
CSO |
dB |
≥60 @-7dBm |
|
MER |
dB |
≥35 @-10dBm |
|
Environmental Specifications |
||
|
Indicator |
LED |
PWR, LOS, PON, LAN, CATV |
|
Operating condition |
℃ |
Operating temperature: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temperature: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,0.5A adapter |
|
Power consumption |
W |
≤5 |
|
Mechanical Specifications |
|
|
|
Dimension (LxWxH) |
mm |
111×92×30（L×W×H） |
|
Weight |
kg |
Net weight 0.13 |
Shipping packaging
| Description | Quantity | Weight | Carton Size |
| Shipping packaging | 1pc/box | 0.24kg/box | 120*110*65mm |
| 100pc/ctn | 24.5kg/ctn | 640*570*280mm |
