Dimension(mm)：210*110*33(L*W*H)
Weight：0.32kg
1GE+1FE+WIFI+CATV HGU XPON ONU
PTF2232W
Product Description:

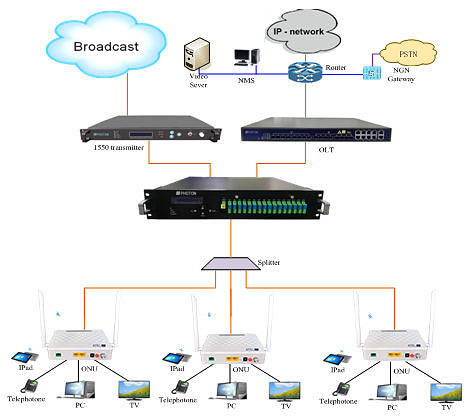

FIBERWAY PTF2232W is 1GE+1FE+WIFI+CATV XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø CATV (RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
|
Items |
Unit |
Specifications |
|
PON standard. |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
Optical interface |
|
SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490, CATV 1550 |
|
Interface |
Data |
1FE 10/100Mbps 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna |
|
|
RF connector |
RF bandwidth:45~1000MHz |
|
|
Indicator |
LED |
PWR, PON, LOS, WiFi, GE, FE, CATV |
|
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V,1A adapter |
|
Power consumption |
W |
≤6 |
|
Dimension |
mm |
210mm×110mm×33mm(L×W×H)
|
|
Net weight |
Kg |
0.32 |
CATV:
|
Items |
Unit |
Specifications |
|
Optical Connector Type |
|
SC/APC |
|
Input optical power range |
dBm |
-18~ +2 |
|
Optical return loss |
dB |
≥45 |
|
Wavelength |
nm |
1550 ±10 |
|
RF Output Connector |
F |
Imperial or metric |
|
RF Bandwidth |
MHz |
47～1000 |
|
Slope |
dB |
0~2 (47～1003MHz) |
|
RF impedance |
Ω |
75 |
|
RF output return loss |
dB |
≥14 dB |
|
RF output lever |
dBuV |
76（@0 to -15dBm） |
|
AGC Range |
dBm |
-15~0 |
|
C/N |
dB |
≥47 @-7dBm |
|
CTB |
dB |
≥60 @-7dBm |
|
CSO |
dB |
≥60 @-7dBm |
|
MER |
dB |
≥35 @-10 |
Shipping packaging:
|
Description |
Quantity |
Weight |
Carton Size |
|
Shipping packaging |
1pc/box |
0.46kg/box |
230*215*50mm |
|
40pc/ctn |
19.3kg/ctn |
530*480*455mm |
