1GE+3FE+WiFi+CATV HGU XPON ONU
PTF2234W
Overview:

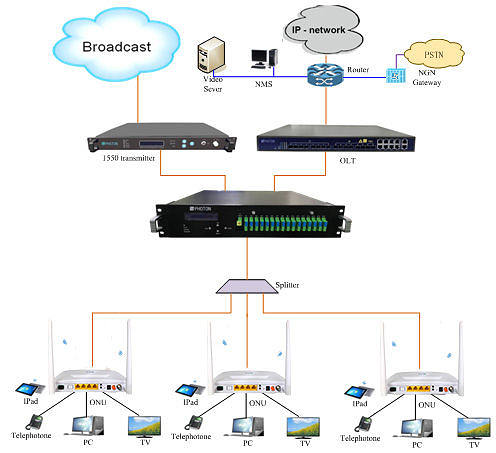

GPON 1GE+3FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed,SOHO broadband access, video surveillance and other requirements to design an GPON Gigabit Ethernet products. It is based on mature and stable, cost-effective GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x ,China Telecom GPON equipment technical requirements and other specifications.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support 802.11n 2T2R speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
|
Technical item |
1GE+3FE+WiFi+CATV |
|
PON interface |
1 GPON port(GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM |
|
Wavelength |
Tx1310nm,Rx 1490nm and 1550nm |
|
Optical interface |
SC/APC connector(signal fiber with WDM) |
|
LAN interface |
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
WiFi interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHzsupport MIMO, rate up to 300Mbps2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDME ncoding scheme: BPSK、QPSK、16QAM and 64QAM |
|
CATV interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nmRF frequency range: 47~1000MHz, RF output impedance: 75ΩRF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
LED |
11, For Status of POWER、LOS、PON、LAN1、LAN2、LAN3、LAN4、WiFi、WPS、WAN、CATV |
|
Operating condition |
Temperature: 0℃～+50℃Humidity: 10%～90%（non-condensing） |
|
Storingcondition |
Temperature: -30℃～+60℃Humidity: 10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power supply |
≤7W |
|
Dimension(L×W×H) |
205mm×140mm×37mm |
|
Net weight |
0.29Kg |
