1550nm external modulated optical transmitter
Dimension(mm):49*480*350(L*W*H)
Weight:7.3Kg
Features
Specification
Application
Video

1550nm external modulated optical transmitter

The PTT5101


Description

The PTT5101 external modulated 1550nm transmitter is designed for HFC networks applications. It can optionally be equipped with an integrated EDFA for CATV applications such as super-trunk, hub Interconnects, video overlays In FTTx networks .

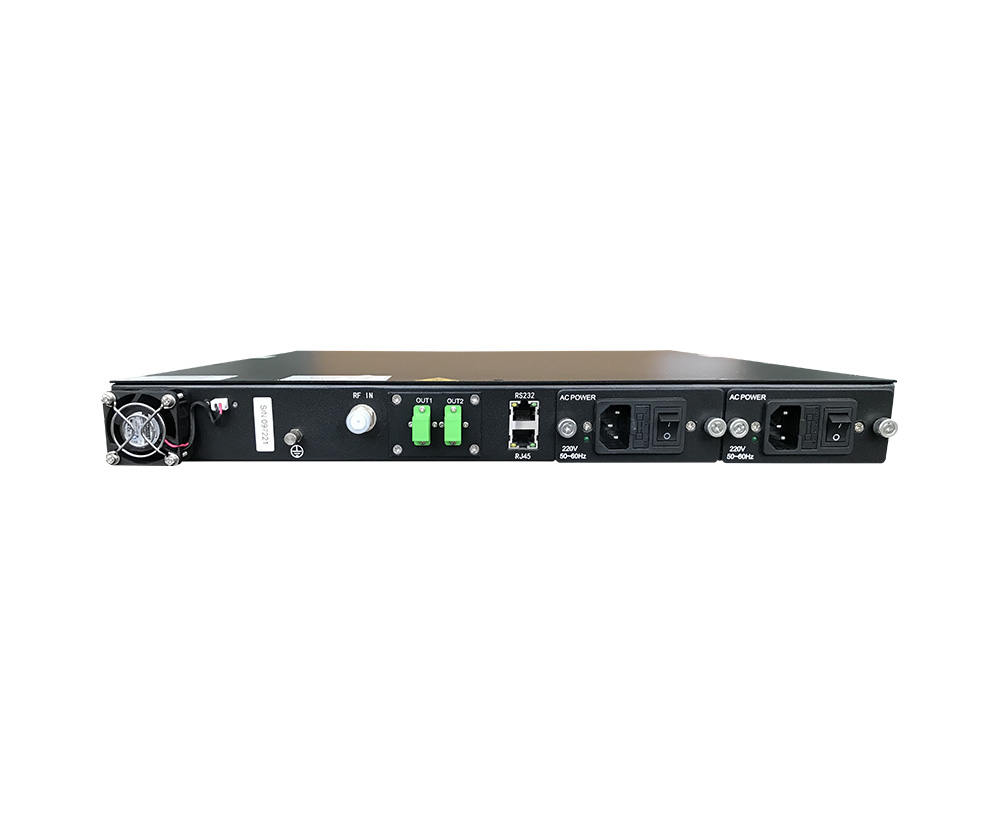

The unit is available in a standard 19”,1 rack unit chassis , with dual optical output, optional ITU-T wavelength for DWDM networks.


Features

Selectable AGC (automatic gain control) or MGC (manual gain control)

■ Accepts low signal input levels (75dBμV/Channel @ 77 ch NTSC)

■ Unique simultaneously SBS/SPM suppressing

■ Front panel LCD display

■ Microprocessor control and monitor

■ RS-485 interface for remote monitoring and control

■ 45~870 MHz bandwidth

■ Patent RF pre-distortion circuit for excellent CNR and low distortion performance

■ Changeable cooling fan.

Application

■ Broadcast or narrowcast transmission at long or extended distances

■ Hub Interconnects Of Redundant Ring Architectures

■ Video Overlays In FTTx Networks.

Description

Unit

Value

Conditions / Notes

Optical Specifications

Laser Type


Cooled DFB LD with isolator


Optical Wavelength

nm

1555 ± 5


Connector Type


SC/APC or FC/APC


Laser RIN Noise Density

dB/Hz

≥-160


Optical Power

dBm

≤7 / 9 (Optional)


Optical Output Port


2


SBS Suppression Threshold

dBm

13、16、18


RF Specifications

Operating Bandwidth

MHz

45 to 870


RF Input Impedance

Ω

75

unbalanced

RF Input Return Loss

dB

≤-16


RF Input Level

dBµV/ch

15 to 25 (80 dBµV/ch nominal value @ 77 NTSC channels loading)


CNR

dB

52 (typical)

Link budget is defined by output power to 0 dBm optical input at receiver under 65km fiber link + EDFA、SBS setting=16dBm test conditions.

CSO

dBc

≤ -65 @ Port1

≤ -63 @ Port2

CTB

dBc

≤ -65 dBc

XM

dB

≤ -65 dB

OMI


3% ± 0.25


Flatness

dB

≤± 0.75


Connector Type


F type female


Test Point

dB

-10 ± 1

Relative to RF input power to laser @59CH PAL-D CW loading

General Specifications

Control Interface


RS-485 or Ethernet


Power Supply


90 to 260 VAC, 50/60 Hz, 100W(Max.)


Operating Temperature

0 to +50


Storage Temperature

-20 to +60


Operating Humidity

%

85% Max


Dimensions: (HxWxD)

mm

49 x 480 x 350

Canton:605mm*540mm*133mm
