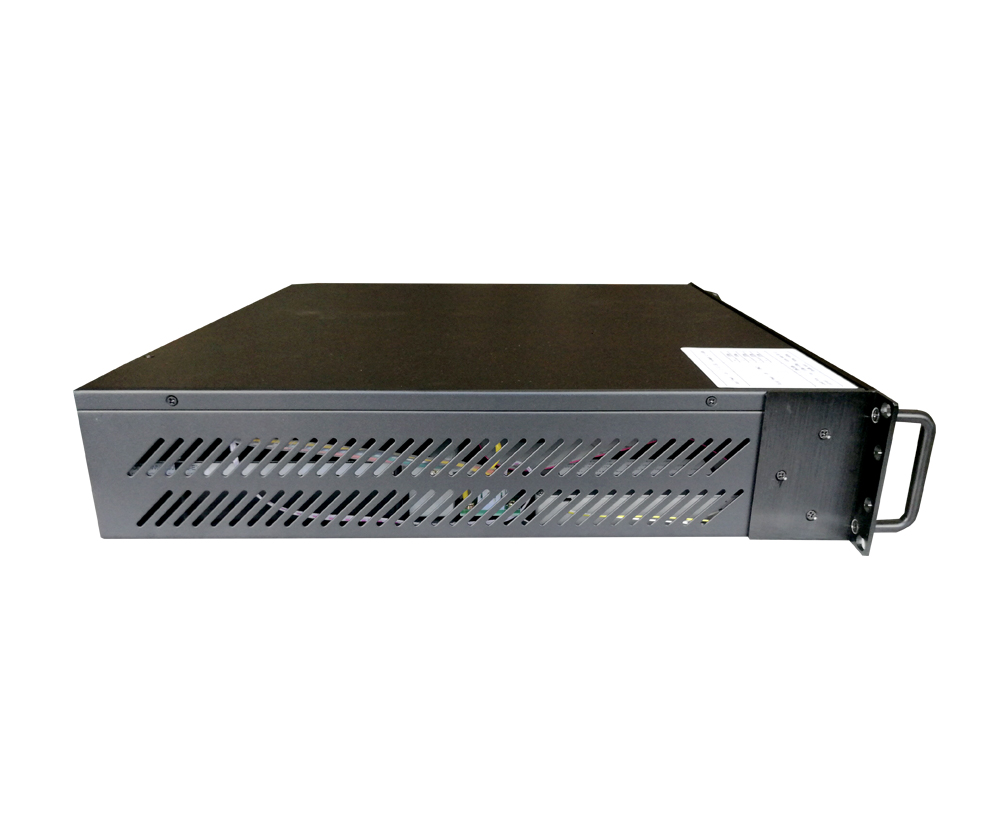

High-Power Optical Amplifier
PTA5102Y-32
Overview:
The PTA5102Y-32 dual TV input Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) are designed for using in CATV、FTTX and HFC application. It is optimized for 1550nm wavelength and is packaged in a 2U 19 inch rack housing. The product is flexible enough to perform all the requirements of CATV、FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget. The PTA5102Y-32 products also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display &Web or remotely via Ethernet based-SNMP NMS. The device also support multiple optical output by build-in PLC splitter and FWDM (1310nm\1490nm) optical multiplexer for Triple-play FTTX network applications.
Features:
Ø Standard 19 inch 2U Rack YEDFA
Ø 32 output ports
Ø Output powers rang from 32*16, 32*19, 32*22dBm
Ø Output optical power adjustable -3~0dB
Ø Wide input dynamic range(0 to +10dBm)
Ø High Isolation input & output(30dB for max)
Ø Web browser management
Ø Automatic Power Control (APC) or Automatic Current Control (ACC)
Ø LCD front panel display for local monitor
Ø Remote management via SNMP (Ethernet Interface)
|
Description |
Unit |
Value |
Conditions / Notes |
|
EDFA Optical Specifications |
|||
|
Fiber Connector |
nm |
TV input:1550nm COM:1550/1490/1310nm SC/APC |
OLT:1310/1490nm SC/UPC |
|
Optical Wavelength |
nm |
1540 ~1560 |
|
|
Input Power |
dBm |
0~+10(1550nm) |
Recommend ≥3dBm |
|
Output Power |
dBm |
32*16 32*19 32*22 |
|
|
Laser Bias Current
|
Pump |
32*16dBm 3300mA±200mA @+6dBm input |
Alarm range: Out of 1500mA~4800mA |
|
Laser Bias Current |
Pump |
32*19dBm 3100mA±200mA @6dBm input |
Alarm range: Out of 1800mA~4600mA |
|
Output Optical Power Stability |
dB |
0.1 |
@+6dBm Input |
|
Noise Figure |
dB |
4(max 5.8) |
@+6dBm Input |
|
Isolation (Input/Output) |
dB |
30 |
|
|
Return Loss (Input/Output) |
dB |
55 |
|
|
Polarization Dependent Gain |
dB |
max 0.5 |
|
|
Polarization Mode Dispersion |
ps |
max 0.5 |
|
|
Electrical Specifications |
|||
|
Communication Interface |
|
RJ45 |
Supporting Web and SNMP NMS |
|
Input voltage |
VAC |
90-265 |
+12/-48 V DC(optional) |
|
Consumption |
W |
50 maximum |
32*16/19 |
|
100 maximum |
32*22 |
||
|
Fuse |
A |
2 |
|
|
Connector |
IEC |
Male power connector |
|
|
Environmental Specifications |
|||
|
Operating Temperature |
℃ |
-5 ~50 |
|
|
Storage Temperature |
℃ |
-20 ~85 |
|
|
Storage Humidity |
RH% |
≤95 |
No Condensation |
|
Mechanical Specifications |
|||
|
Dimension (LxWxH) |
mm |
483 ´ 422 ´ 88 |
Carton:590 ´ 590 ´ 200 |
|
Weight |
kg |
Net weight:11.7 gross weight:15 |
32 port |
|
Mounting |
|
19” EIA rack, 2U Rack |
|
