8PON Ports EPON OLT

Dimension:440mm(L)* 300mm(W)* 44mm(H)

weight:3.7Kg(single Power Supply)   3.85kg(double Power Supply)

Features
Specification
Application
Video

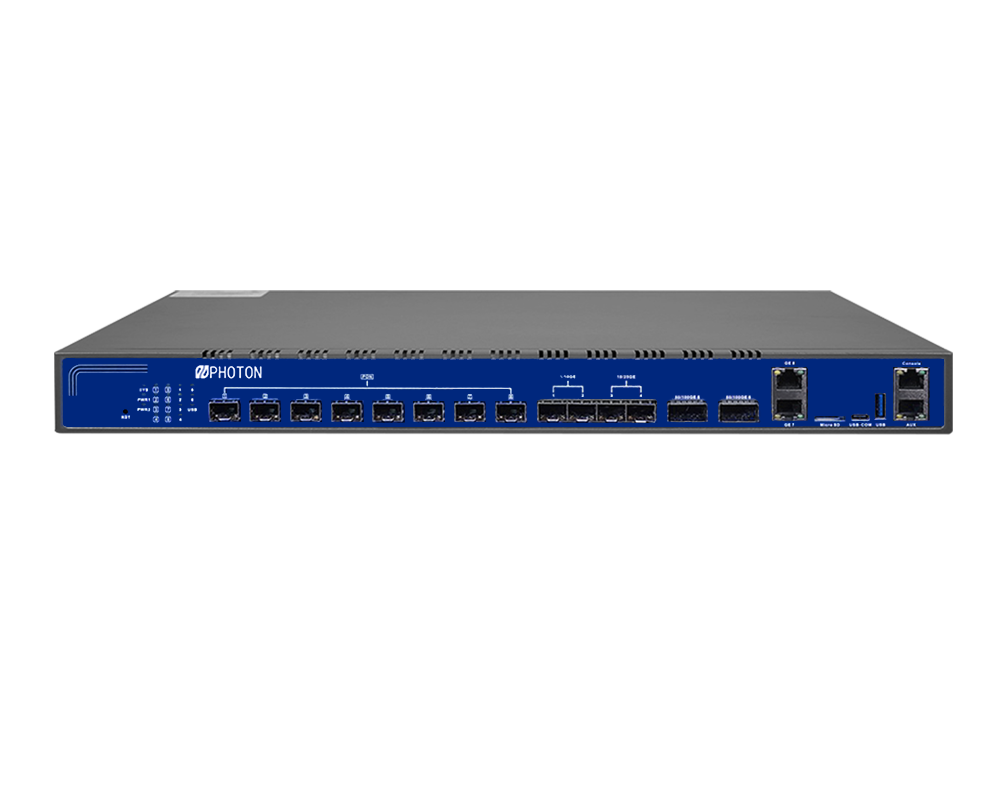

8 PON Ports EPON OLT

PTF3008



Product Description:

PTF3008 economical and high performance EPON OLT is a 1U standard rack-mounted equipment complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.0、2.1 and 3.0.It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television, the power consumption information collection, video surveillance, networking, private network applications and other applications.

PTF3008 has 8 PON ports, 12 uplink ports (8*GE copper RJ45 ethernet ports, 4*SFP(GE)/4*SFP+ (10GE)). Each of PON port supports up to 64 ONUs, the whole device supports up to 512 ONUs. Small size OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLTs can also be used for “Triple-Play” applications.



Features:

Ø 1U 19 inch standard box EPON OLT with 8 PON ports

Ø Compliant with IEEE802.3ah YD/T1475-2006—EPON and China Telecom EPON Technical Requirements

Ø QoS based on port, VID, TOS and MAC address(32K Mac address)

Ø Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm

Ø Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ)

Ø Support 32K MAC’s line speed learning and aging, support MAC address restriction

Ø Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol

Ø Support multicast Groups, IGMP v1/v2 snooping and IGMP Proxy

Ø Support port-based rate limitation and bandwidth control

Ø Support PON line AES and triple churing encryption

Ø Support Dynamic Bandwidth Allocation (DBA)

Ø Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication

Ø Support the use of the ACL rules for packet filtering

Ø Support SNMP, telnet, CLI, OAM and Web management

Ø Provide logs, alarms and performance statistics

Ø Support remote software upgrade

ØTwo power supply redundancy design

Items

Unit

Specifications

PON standard

EPON IEEE802.3ah

PON interface

8*EPON SFP Ports (PX20+),  Receiving sensitivity: -30dBm(Saturation Optical -6dBm). Power,Transmitting optical power: +2+7dBmTransmission distance: 20KM. Max splitting ratio1:64

Speed

Upstream 1.25G

Downstream 1.25G

Wavelength

nm

Tx1310, Rx 1490

Uplink

GE

8 copper ethernet ports 10/100/1000M auto-negotiation

SFP

4 SFP(GE)/ 4*SFP+(10GE) auto-detection

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

Backplane

Gbps

128

MAC table

K

32

Spanning

Tree protocol

Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols

QoS

Support 802.1p priority queue scheduling

Support SPWRR and SP+WRR scheduling algorithms

Operating condition

Operating temp: -5 ~ +55

Storing condition

Storing temp: -40 ~ +85

Humidity

%

5~90(non-condensing)

Power consumption

W

50

Dimension

mm

440mm×300mm×44mmL×W×H

Net weight

Kg

3.7Kg(single Power Supply)   3.85kg(double Power Supply)

Shipping packaging:

Description

Quantity

Weight

Carton Size

Shipping packaging

1pcs /ctn

4.8kg/ctn(single PS)

5.2kg/ctn(double PS)


555*450*115mm
