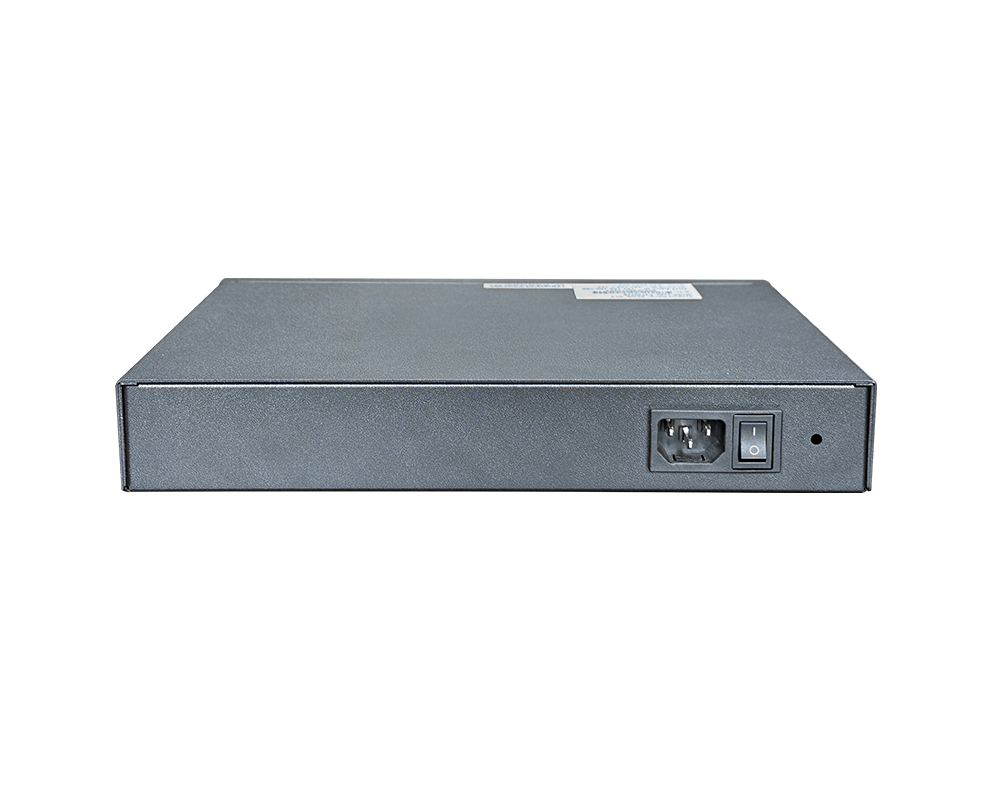

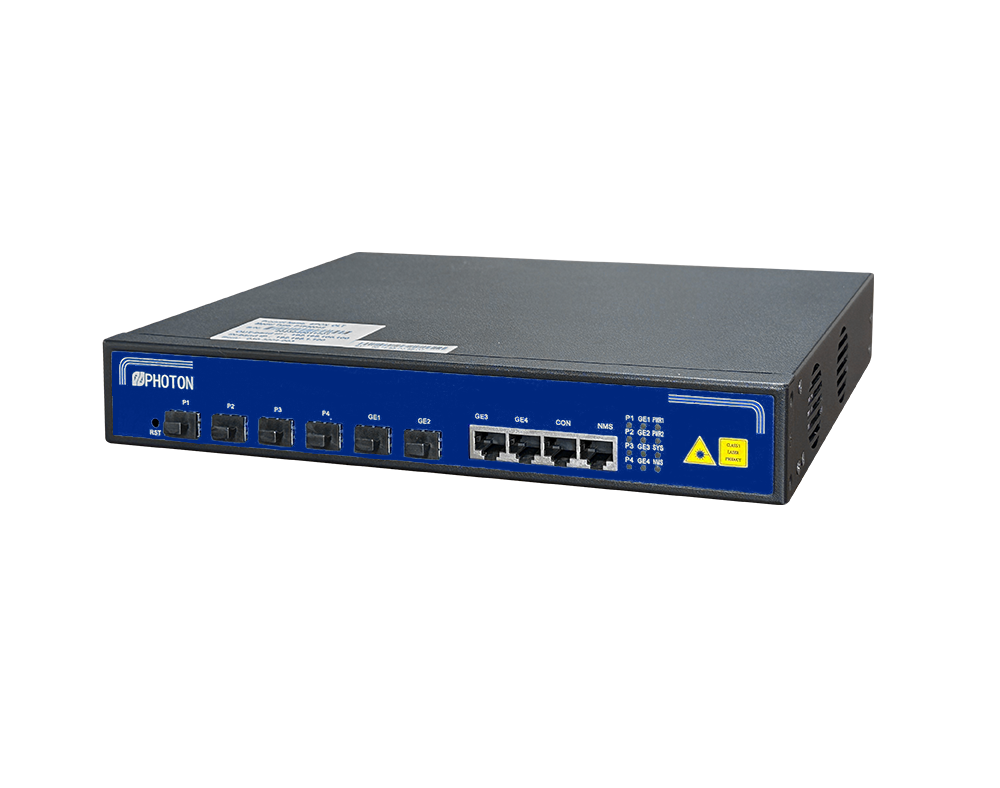

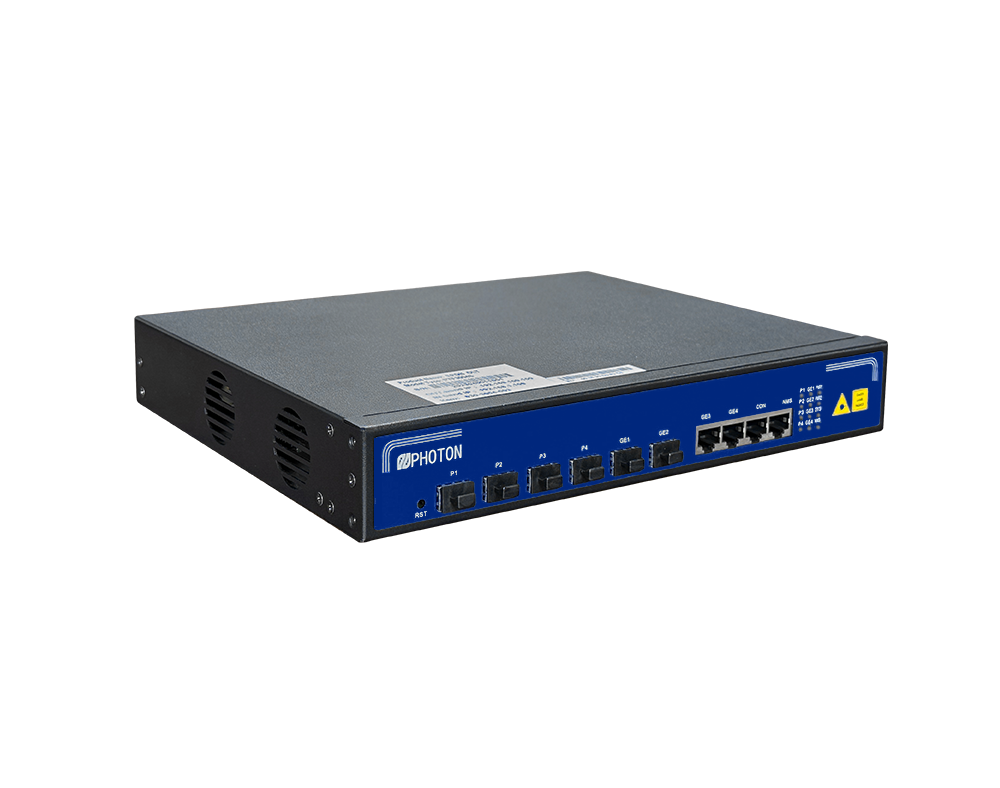

4 PON Ports EPON OLT
Dimension:323mm×239mm×44mm(L×W×H)
Features
Specification
Application
Video

4 PON Ports EPON OLT

PTF3004S



1. Product Description

PTF3004S is a economical and high performance EPON OLT, it complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.02.1 and 3.0.It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television, the power consumption information collection, video surveillance, networking, private network applications and other applications.

PTF3004S has 4 PON ports, 4 uplink ports (2*GE copper RJ45 Ethernet ports, 2*GE(SFP)).Each of PON port supports up to 64ONUs, the whole device supports up to 256 ONUs. Small size OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It is appropriate to be deployed in compact room environment. The OLT can also be used for “Triple-Play” applications.


2. Features

Ø 1U box EPON OLT with 4 PON ports

Ø Compliant with IEEE802.3ahYD/T1475-2006—EPON and China Telecom EPON Technical Requirements

Ø Support PON line AES and triple churing encryption

Ø Support Dynamic Bandwidth Allocation (DBA)

Ø Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure, manual/auto authentication

Ø Support the use of the ACL rules for packet filtering

Ø Support SNMP, telnet, CLI, OAM and Web management

Ø Provide logs, alarms and performance statistics

Ø Support remote software upgrade


Items

Unit

Specifications

PONstandard.

EPON IEEE802.3ah

PON interface

4*EPON SFP Ports (PX20+), Receiving sensitivity: -30dBm(Saturation Optical -6dBm). Power,Transmitting optical power: +2+7dBmTransmission distance: 20KM. Max splitting ratio1:64

Speed

Upstream 1.25G

Downstream 1.25G

Wavelength

nm

Tx1490, Rx 1310

Uplink

GE

2*copper Ethernet ports 10/100/1000Mauto-negotiation

SFP

2*GE SFP

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

Backplane

Gbps

16

MAC table

K

32

Operating condition

Operating temp: -5 ~ +55

Storing condition

Storing temp: -40 ~ +85

Humidity

%

5~90(non-condensing)

Power consumption

W

30

Dimension

mm

323mm×239mm×44mmL×W×H

Net weight

Kg

TBD
