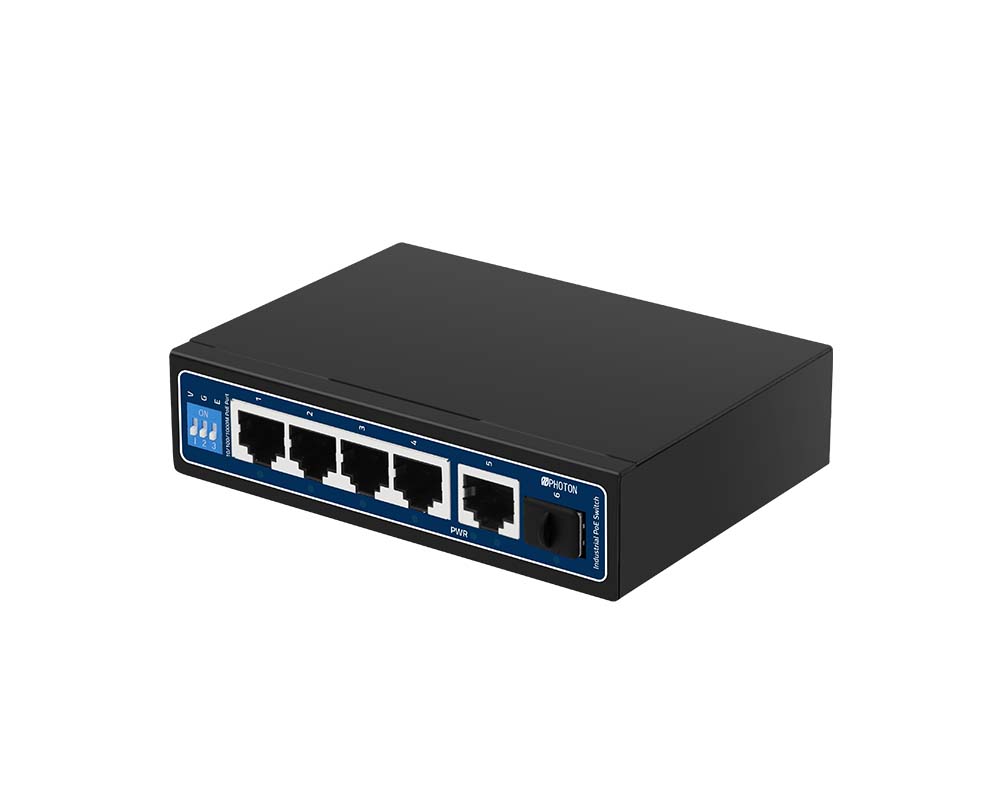

5 Ports 10M/100M Industrial POE Switch
PTD1506T-4P-1G1S
1. Overview
PTD1506T-4P-1G1S is a 5-Ports intelligent industrial PoE switch, support 4* Gigabit PoE ports+1* Gigabit uplink Ethernet port+1* Gigabit SFP port, support DIN-Rail & Wall mounts, support dual power supply input (DC48-55V)，working temperature -40℃~ +75℃，It has passed the industrial environment certification and complies with FCC, CE, CCC, RoHS standards.The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial POE switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries,is a green low power industrial PoE Ethernet switch.
2. Features
Ø Support 4* Gigabit PoE ports+1* Gigabit uplink Ethernet port+1* Gigabit SFP port.
Ø Port 1-4 support standard PoE power supply, support IEEE 802.3af/at standard.
Ø Model PTD1506T-4P-1G1S-BPort1supports BT90W power supply and is compatible with IEEE 802.3af/at/bt standard.
Ø Working temperature -40℃-75℃
Ø 4PIN industrial terminal+ DC2.1 input interface, DC48-55V wide voltage input.
Ø Support 3 DIP modes: VLAN, Genius, Extend.
Ø Support rail and wall mount installation.
Ø surge protection 4KV, ESD: Air15KV, Contact 8KV.
3. Application
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Ø Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Ø Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Ø Real-time monitoring: simultaneous transmission of real-time control signals, images and data.
Ø Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.
|
I/O Interface |
|
|
Power |
DC48-55V |
|
Ethernet |
4* Gigabit PoE Ports (Port 1 supports 90W 802.3bt optional) 1* Gigabit Uplink port 1* Gigabit SFP Port |
|
Performance |
|
|
Bandwidth |
12Gbps |
|
Pack forward rate |
8.928Mpps |
|
MAC address |
8K |
|
Jumbo frame |
9.6Kbytes |
|
Transfer mode |
Storage & forward |
|
MTBF |
100000 Hours |
|
Standards |
|
|
Network protocol |
IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
|
POEprotocol |
PoE standard: IEEE802.3af /IEEE802.3at |
|
Single port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at) |
|
|
PoE compatibility: IEEE 802.3af/at self-adaptive |
|
|
PoE port output voltage: DC 48-55V |
|
|
PoE power supply wire core:1/2+ ; 3/6- |
|
|
Networkmedium |
10BASE-T: Cat3, 4, 5 UTP (≤100 m) 100BASE-TX: Cat5 or above UTP (≤100 m) 1000BASE-TX: Cat5 or above UTP (≤100 m) |
|
Opticalmedium |
Multi-mode fiber: 850nm, 1310nm transmission distance: 550m/2Km Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km |
|
Certificate |
|
|
Safety certificate |
CE,FCC, ROHS |
|
Environment standard |
|
|
Working environment |
Working temperature: -40～75℃ Storage temperature: -40～85℃ Humidity: 5%~95 % (non-condensing) |
|
Indicator |
|
|
LED Indicator |
PWR，1-6 green light |
|
PWR |
On: Powered on Off: Powered off |
|
1-6 green light |
On: Link normal Off: Link off Flashing: Link data transmitting |
|
DIP function |
V,G,E (Up open, down close) |
|
V |
V:VLAN mode, ports 1 to 4 are isolated and can communicate with ports 5 and 6 |
|
G |
G:Normal mode |
|
E |
E: Extend mode, ports 1-4 are reduced to 10M and can be extended to 250m |
|
Physical specification |
|
|
Structure size |
Product dimension: 120*87*30 mm Package dimension: 175*130*55mm Product N.W: 0.441 KG Product G.W: 0.530 KG (without power) |
|
Packaging info
|
Carton MEAS: 540*290*375mm Packing Qty: 40 PCS Packing Weight: 22.2 KG |
|
Power voltage
|
Voltage input: DC48～55V Power cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
|
Packaging list
|
Industrial Switch: 1 PC User Manual: 1 PC Certification: 1 PC Pull-arm: 1 PC |
|
Model |
Description |
|
PTD1506T-4P-1G1S |
6 Ports Gigabit Industrial POE Switch |
|
PTD1506T-4P-1G1S-B |
6 Ports Gigabit Industrial POE Switch，Port 1 Support BT90W 802.3bt Power supply |
