10-Ports Gigabit Industrial PoE Switch
PTD1110T-8P-1G1S
1. Overview
PTD1110T-8P-1G1S is a10 ports 10/100/1000M series industrial PoE switch, support 8* 10/100M PoE port+ 1* Gigabit Ethernet Port, and 1* Gigabit SFP port, support DIN-Rail & Wall mounts installation, dual power supply (DC48-55V); working temperature -40℃~ +75℃. It has passed the industrial environment certification and complies with FCC and CE standards; support DIP switch function. The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial PoE switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a green low power industrial Ethernet switch.
2. Features
Ø Support 8* 10/100M PoE port+ 1* Gigabit Ethernet Port, and 1* Gigabit SFP port.
Ø IEEE802.3af (15.4w) and IEEE802.3at (30W).
Ø Model PTD1110T-8P-1G1S-B Port 1&2supports BT90W power supply and is compatible with IEEE 802.3af/at/bt standard.
Ø IIP40 protection grade, high strength iron shell, DIN35 Rail installation.
Ø Industrial grade protect design, -40 to 75°C working temperature.
Ø Ports 1-2 support BT 90W optional
Ø Support redundant power supply, support anti-reverse.
Ø support VLAN, Extend, support DIP switch function
Ø Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV.

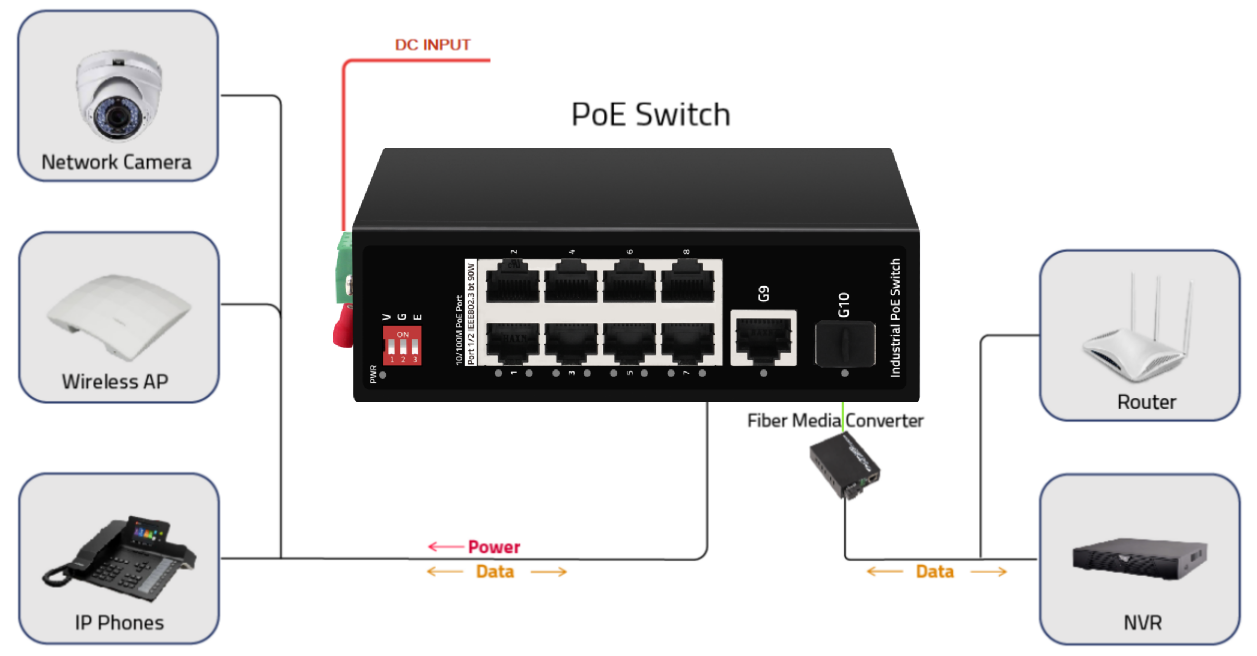

3. Application
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Ø Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Ø Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Ø Real-time monitoring: simultaneous transmission of real-time control signals, images and data.
Ø Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.
|
I/O Interface |
|
|
Power |
DC48-55V |
|
Ethernet |
8* 10/100M PoE Ports (Port 1-2 support 90W 802.3bt optional)
1* Gigabit Uplink port 1* Gigabit SFP Port |
|
Performance |
|
|
Bandwidth |
5.6Gbps |
|
Pack forward rate |
4.166Mpps |
|
MAC address |
8K |
|
Jumbo frame |
9.6Kbytes |
|
Transfer mode |
Storage & forward |
|
MTBF |
100000 Hours |
|
Standards |
|
|
Network protocol |
IEEE802.3 IEEE802.3u IEEE802.3z |
|
POE protocol |
PoE standard: IEEE802.3af /IEEE802.3at |
|
Single port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at) |
|
|
PoE compatibility: IEEE 802.3af/at self-adaptive |
|
|
PoE port output voltage: DC 48-55V |
|
|
PoE power supply wire core:1/2+ ; 3/6- |
|
|
Network medium |
10BASE-T: Cat3, 4, 5 UTP (≤100 m) 100BASE-TX: Cat5 or above UTP (≤100 m) 1000BASE-TX: Cat5 or above UTP (≤100 m) |
|
Optical medium |
Multi-mode fiber: 850nm, 1310nm transmission distance: 550m/2Km Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km |
|
Certificate |
|
|
Safety certificate |
CE, FCC, ROHS |
|
Environment standard |
|
|
Working environment |
Working temperature: -40～75℃ Storage temperature: -40～85℃ Humidity: 5%~95 % (non-condensing) |
|
Indicator |
|
|
LED Indicator |
PWR, 1-9 green light, G10 |
|
PWR |
On: Powered on Off: Powered off |
|
1-9 green light |
Slow flashing: 10/100M link normal Off: Link off Fast flashing: Link data transmitting |
|
G10 |
On: Optical connecting properly Off: Optical off Flashing: Optical data transmitting |
|
DIP function |
V, G, E (Up open, down close) |
|
V |
V: VLAN mode, ports 1-8 are isolated and can communicate with port 9 and 10 |
|
G |
G: Normal mode |
|
E |
E: Extend mode, ports 1-8 are reduced to 10M and can be extended to 250m |
|
Physical specification |
|
|
Structure size |
Product dimension: 138*108*44 mm Package dimension: 245*190*60mm Product N.W: 0.646 KG Product G.W: 0.781 KG (without power) |
|
Packing info |
Carton MEAS: 520*320*400mm Packing Qty: 20 PCS Packing Weight: 17.62 KG |
|
Power voltage
|
Voltage input: DC48～55V Power cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
|
Packaging list |
1. Industrial Switch: 1 PC 2. User Manual: 1 PC 3. Certification: 1 PC 4. Pull-arm: 1 PC |
|
Ordering Info |
|
|
PTD1110T-8P-1G1S |
10-Ports Industrial PoE Switch，30W (PoE output) |
|
PTD1110T-8P-1G1S-B |
10-Ports Industrial PoE Switch，BT90W(1&2 Port PoE output) 802.3bt ,30W (3~6 port PoE output) |
