8FE+Reverse POE XPON ONU
PTF2088R
Product Description:

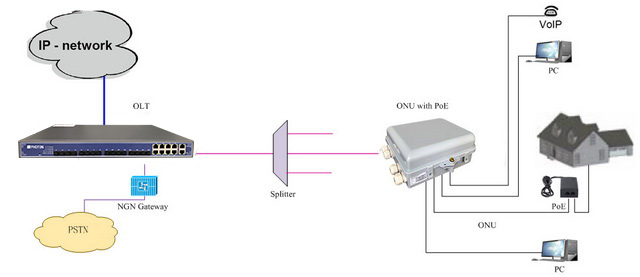

FIBERWAY PTF2088R is 8FE+Reverse PoE(Power Over Ethernet) XPON ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
The ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.
Features:
Ø ONU with reverse PoE(Power Over Ethernet)
Ø Dual mode ONU compatible with popular EPON and GPON OLT

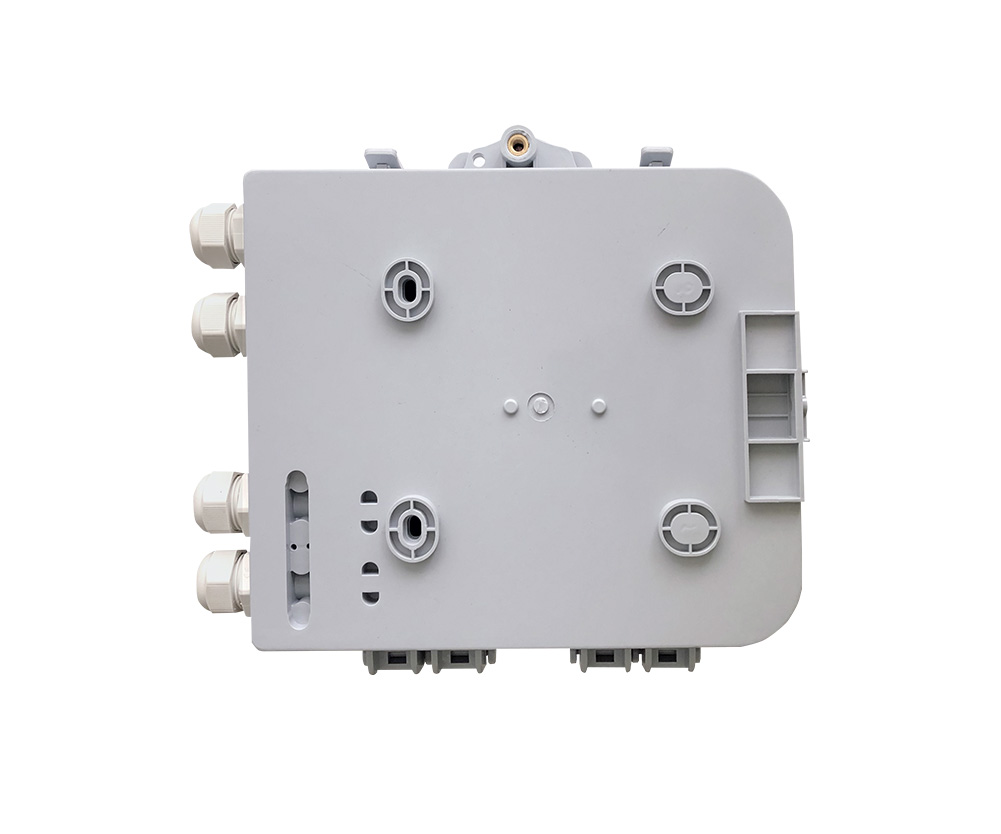

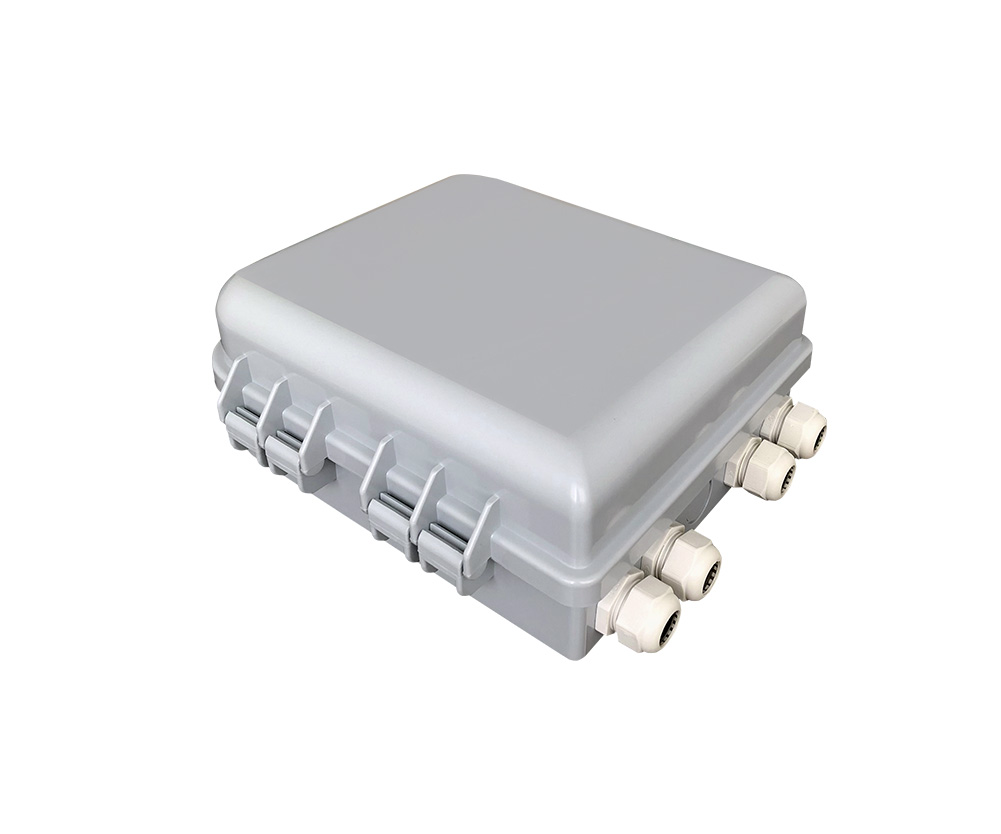

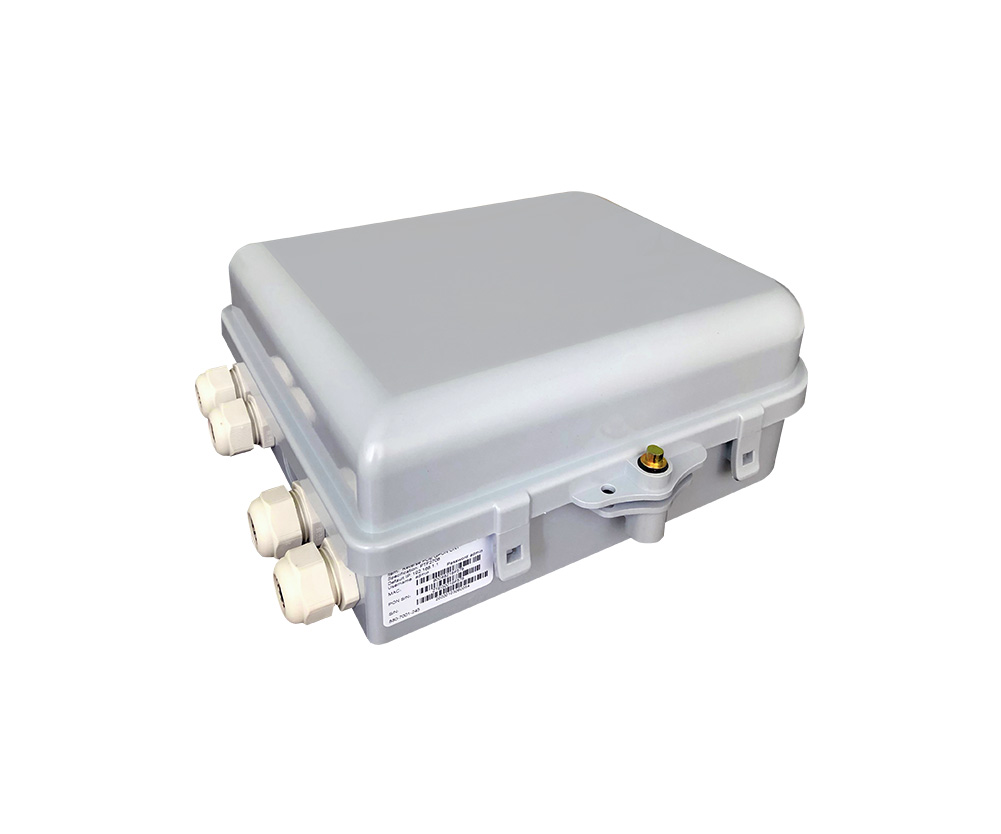

Ø Outdoor Housing plastic or metal optional
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Firewall function
Ø Support remote software upgrade
|
Items |
Unit |
Specifications |
|
PON standard. |
|
EPON IEEE802.3ah, GPON ITU-T G.984.x |
|
Optical interface |
|
SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM |
|
Speed |
Gbps |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Interface |
data |
8FE 10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
|
Indicator |
LED |
POWER、LOS、PON、LAN、SYS、PoE |
|
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temp: -30 ~ +60 |
|
Humidity |
% |
10~90(non-condensing) |
|
Power supply |
V |
DC 12V/1A or Powered by the power sourcing equipment (PSE) |
|
Power consumption |
W |
≤8 |
|
Dimension |
mm |
235mm×220mm×60mm（L×W×H） |
|
Net weight |
Kg |
1.4Kg |
Shipping packaging:
|
Description |
Quantity |
Weight |
Carton Size |
|

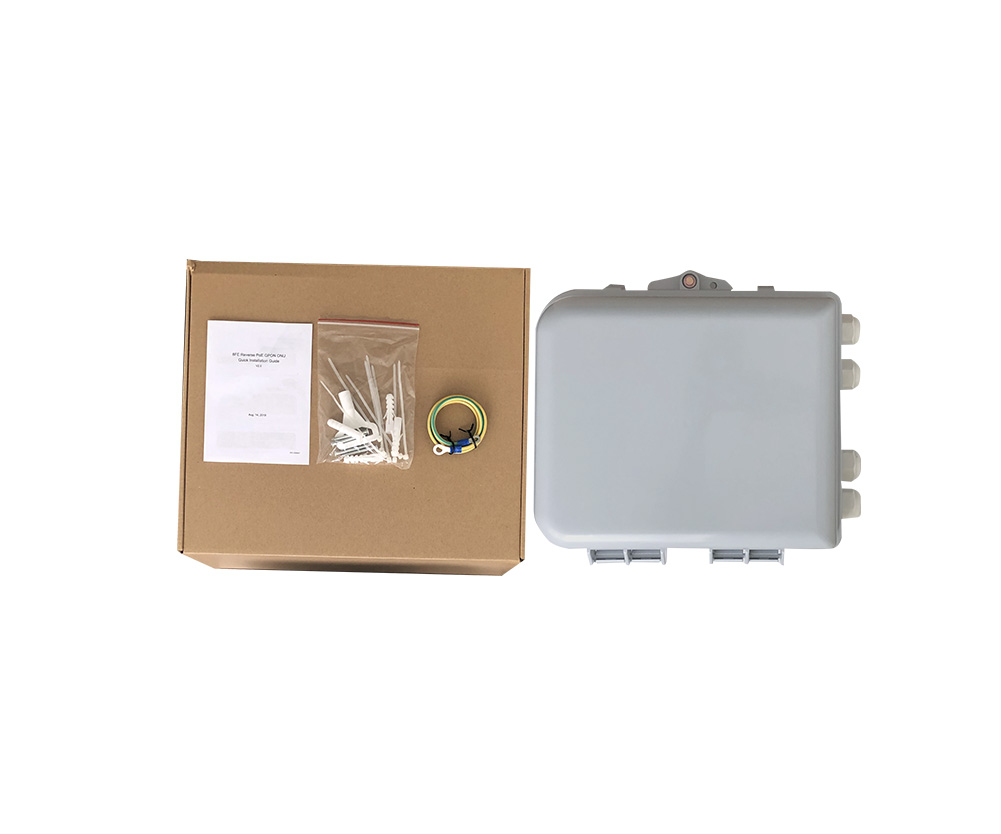

Shipping packaging |
1pc/box |
1.47kg/box |
341*301*151mm |
|
10pc/ctn |
16.75kg/ctn |
750*610*365mm |
