POF/POE XPON ONU

PTF2501F

Product Description:

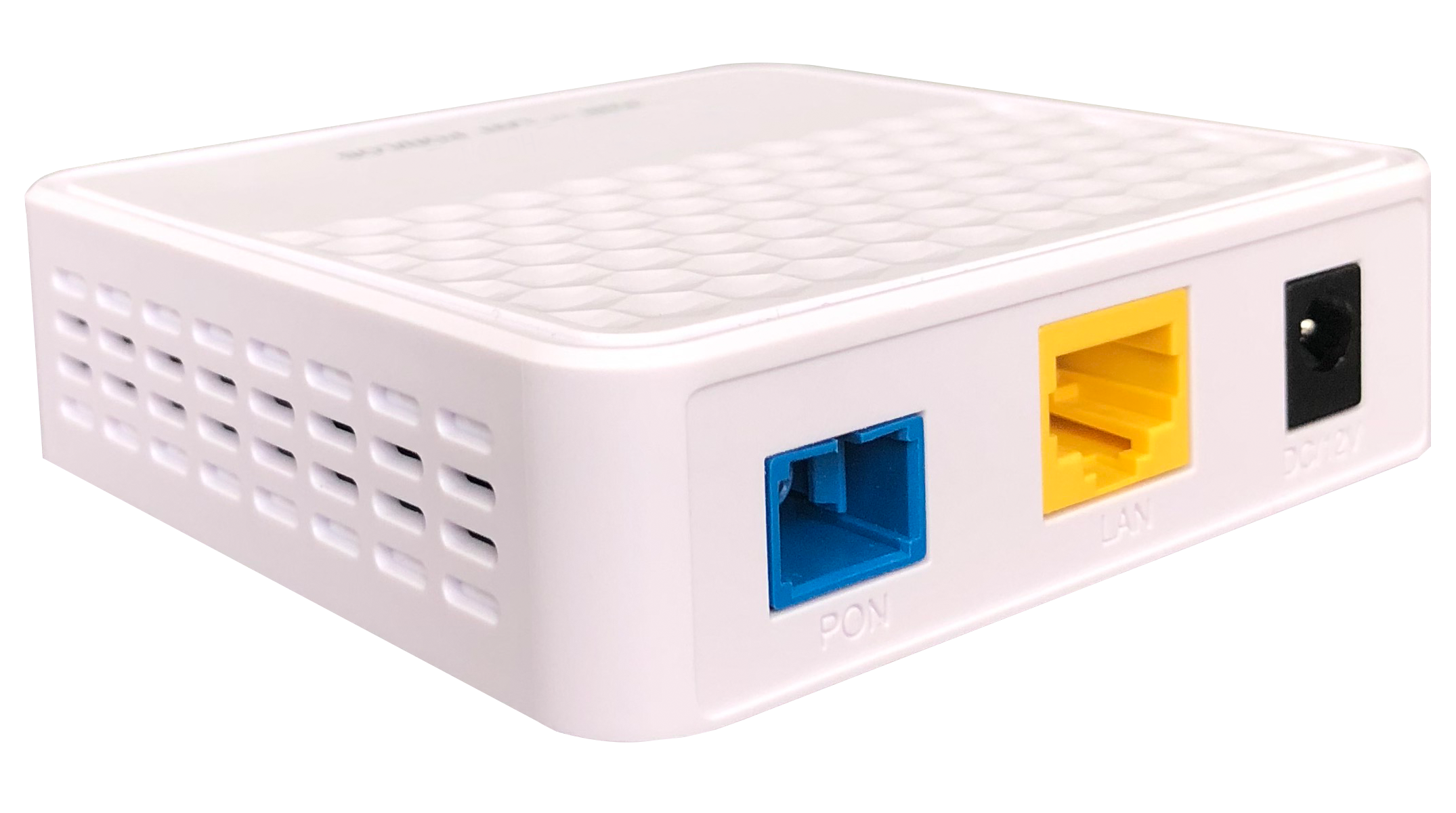

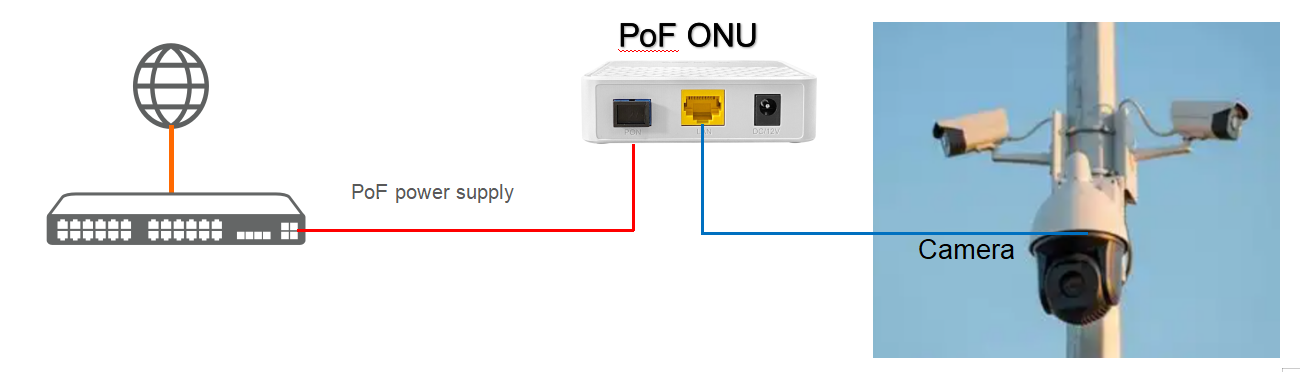

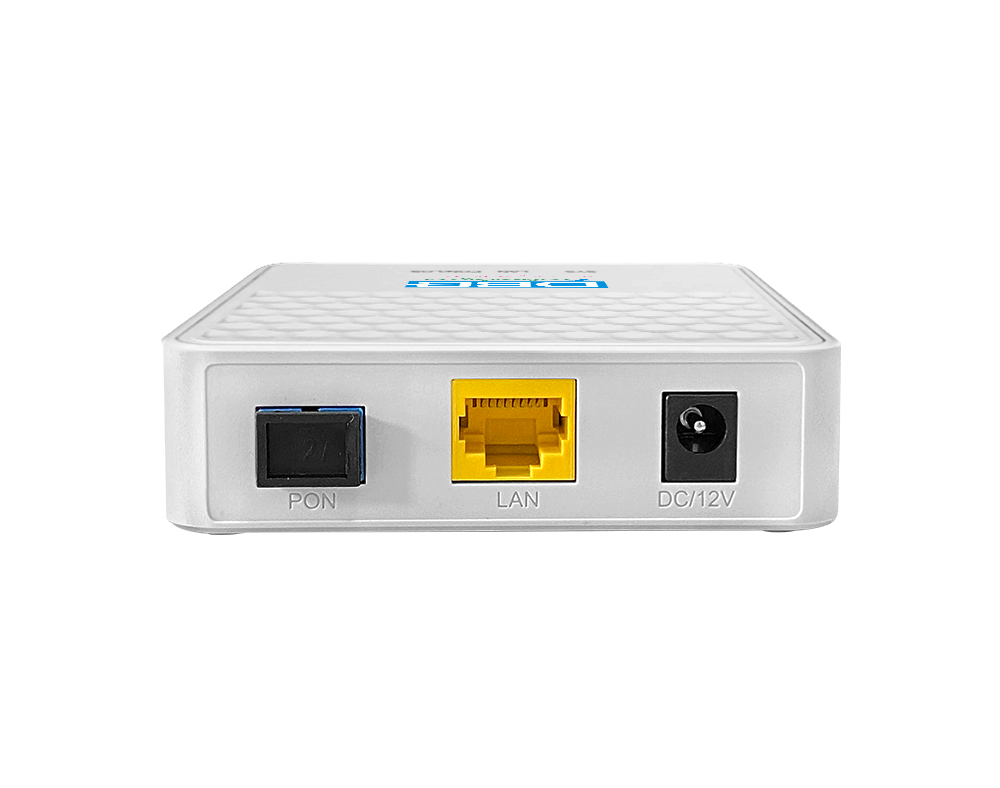

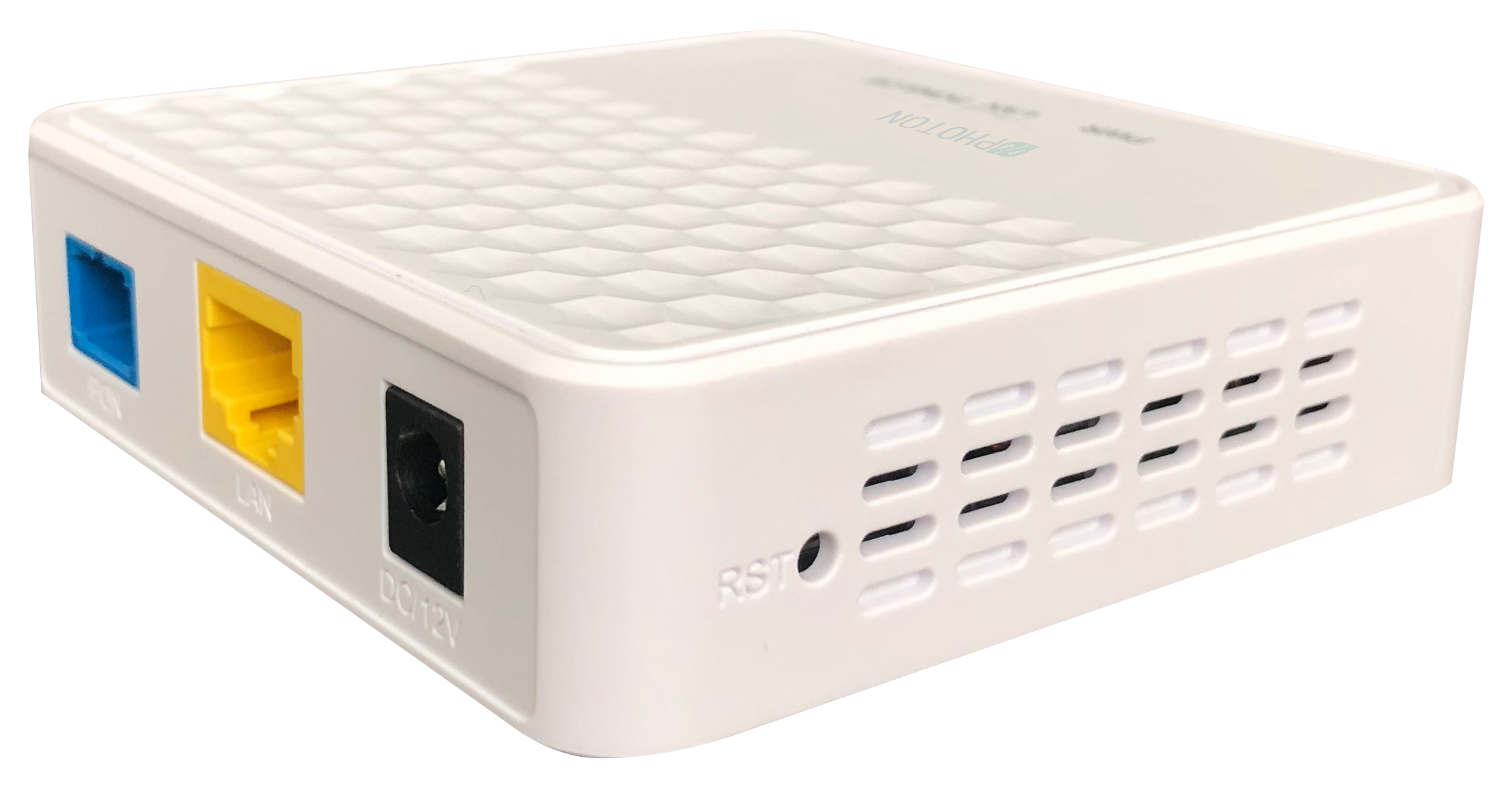

PTF2501F PoF XPON ONU (PoF+PoE optional) is designed for different FTTH solutions. It provides 1 PoF EPON/GPON fiber access port, which can power the ONU through fiber, providing a quick and easy solution for environments with inconvenient power supply. It can also be powered by a 12DC power adapter. The PoE function is optional, and the network port can transmit data and power the user-side device at the same time. The PON interface complies with the IEEE802.3ah/ITU-T G.984 international standard, the YD/T 1475-2006 Ministry of Industry and Information Technology standard and the CTC 3.0 telecommunications standard. It is designed to be small in size and equipped with 1 Gigabit Ethernet interface, providing high-speed fiber access, simple and convenient to use, and providing data service access for telecommunications-grade FTTH applications.

Features:

Ø Photoelectric composite PoF optical interface solves the problem of inconvenient power supply

Ø PoE function is optional, which can power the terminal device through the twisted Pair cable

Ø Small size, beautiful and neat installation

Ø Support 4094 VLANs

Ø Support OAM, CLI and WEB configuration management, support Telnet, support OLT remote and WEB software upgrade

Ø Dynamic bandwidth allocation mechanism enables all users to share 2.5Gbps bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the service quality of different services in the same network

Ø Use XPON uplink, support LOID logical authentication method, meet IEEE802.3ah, ITU-T G.984/standard
