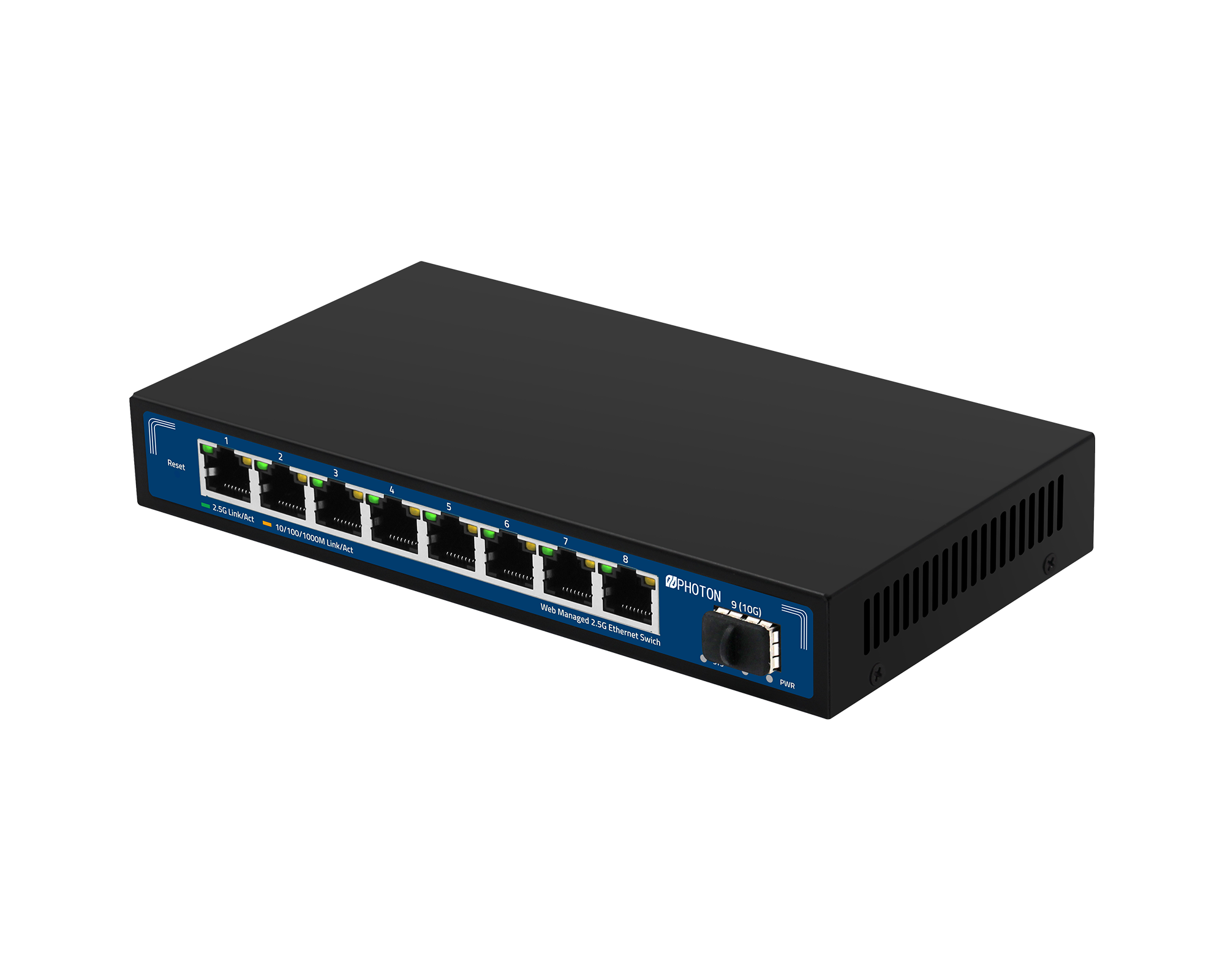

9 Port 10G uplink 2.5G Web Managed Ethernet switch
PTD1809-8Q1X-NM
1. Overview
PTD1809-8Q1X-NM is a9 Port 10G uplink 2.5G light network management Ethernet switch, adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 8* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
2. Features
Ø 8* 100/1000/2500M RJ45 port +1*10G SFP+ ports;
Ø Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x；
Ø Ethernet port support 100/1000/2500M self-adaptive;
Ø Supports automatic port rollover(Auto MDI/MDIX);
Ø Panel indicators monitor working status and assist in fault analysis;
Ø Support QoS data priority;
Ø Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;
Ø Support Surge protection: Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.
|
I/O Interface |
|
|
Power |
DC 2.1 |
|
Ethernet |
8*100/1000/2500M RJ45 ports 1*10G SFP+ ports |
|
Performance |
|
|
Bandwidth |
60Gbps |
|
Packet forwarding rate |
44.64Mpps |
|
Package cache |
8Mbit |
|
VLAN |
VLAN range 1-4094, with a maximum active VLAN of 31 |
|
MAC address table |
4K |
|
Jumbo frame |
16356bytes |
|
Forwarding mode |
Store forward |
|
Network parameter |
|
|
Network protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control) |
|
Industry standard |
EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge) |
|
Network medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or higher UTP/STP(≤100m) 1000Base-TX: Cat5 or higher UTP/STP(≤100 M) |
|
SFP medium |
Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
Certification |
|
|
Safety certification |
CE, FCC, RoHS |
|
Environmental standard |
|
|
Working environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~95%, no condensation |
|
Functional indication |
|
|
PWR(Power indicator) |
On: Powered on Off: Powered off |
|
SYS |
Flashing: System startup Lighting: System Running |
|
1-8 Port |
Green On: 2.5G Link connect normal Yellow On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting |
|
9 Port Green Light |
On: 10G Link connect normal Off: Link off Flashing: data transmitting |
|
Reset |
Long press for 6 seconds to Factory reset |
|
Physical specification |
|
|
Structural dimension |
Product size: 190*100*28mm Package size: 245*190*60mm Product weight: 0.49KG Packing weight: 0.71KG |
|
Packing information |
Outer box size: 520*320*400mm Packing quantity: 20 pcs Packing weight: 15.2KG |
|
Operating voltage |
Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V1A |
|
Power |
Main board power：11.29W |
|
Packing list |
Switch 1pcs, Specification 1pcs, Certificate of qualification 1pcs, Power adapter 1pcs |
|
Order Info |
|
|
PTD1809-8Q1X-NM |
9 Port 10G uplink 2.5G Web Managed Ethernet switch |
Application
Ø Metropolitan area optical fiber broadband network: Telecom, cable TV, network system integration, such as number, according to network operators.
Ø Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network.
Ø Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications.
Ø Real-time monitoring: real-time control signal, image and data transmission.
