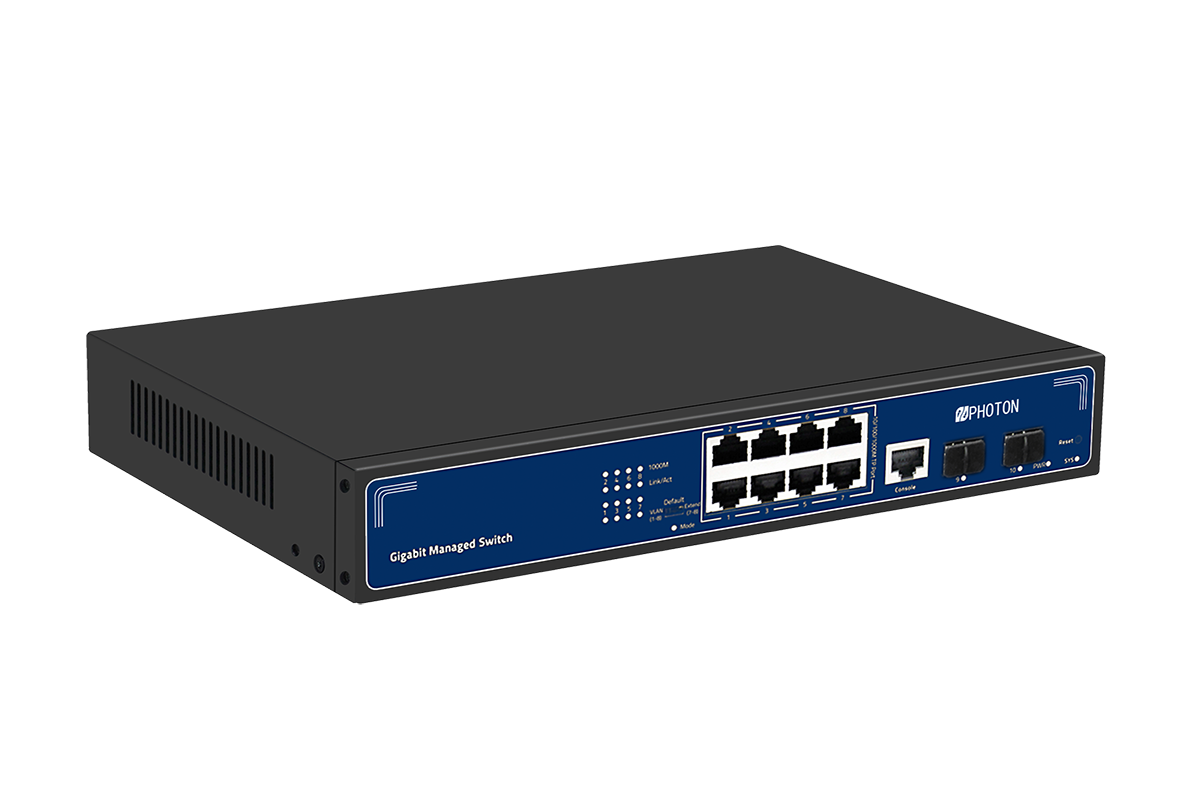

10-Port Managed Gigabit Intelligent Ethernet Switch
PTD1510-8G2S-NM
1. Overview
PTD1510-8G2S-NM is a 10-Port Managed Gigabit Intelligent Ethernet Switch, Support8*10/100/1000 adaptive electrical ports,2 * 1 Gb SFP ports, 1 console port,black iron shell design, DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.
The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to the full duplex or half duplex mode; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/ Mdix auto flip function, non blocking line speed transmission of all ports.
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.
2. Features
Ø 8 x 10/100/1000Mbps auto-sensing Ports, 2x 1000MbpsSFP Ports, 1 x Console Port;
Ø Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;
Ø Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
Ø Support port auto flip (Auto MDI/MDIX)；
Ø Panel indicator monitoring the status and help failure analysis;
Ø Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
Ø Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
Ø Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact
|
I/O Interface |
|
|
Power |
DC 12V |
|
Ethernet |
8*10/100/1000Mbps Ethernet Port 2*1000Mbps SFP Port 1*Console Port |
|
Performance |
|
|
Bandwidth |
20Gbps (non-blocking) |
|
Packet Forwarding rate |
14.88Mpps |
|
Packet Buffer |
4M |
|
Memory Capacity |
128MB |
|
Flash Capacity |
16MB |
|
MAC Address |
8K |
|
VLANs |
4096 |
|
Jumbo Frame |
9.6Kbytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hour |
|
Standard |
|
|
Network protocol |
IEEE802.3: 10Base-T IEEE802.3u :100Base-TX IEEE802.3ab: 1000Base-TX IEEE802.3z :1000Base-FX IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT)、 EN61000-4-5 (Surge) |
|
Network Medium
|
10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
|
optical characteristics
|
multi mode：850/1310nm （0-2KM） Single mode：1310/1550/1490nm（0-120KM） |
|
Protection |
|
|
Security Certificate |
CE、FCC、RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
|
Indication |
|
|
LED Indicators |
PWR、SYS、Link、ACT |
|
Mechanical |
|
|
Structure Size |
Product Size：268*181*44mm Package Size：312*262*84mm Product Net-Weight：1.01KG Product Gross-Weight：1.54KG |
|
Packing Info |
MEAS：540*435*332mm Packing Qty：10PCS Packing weight：16.4KG |
|
Power Voltage |
Power Input Voltage: AC 100-240 V Power Output: 12V1A |
|
Package List |
Ethernet switch: 1 Set、Instruction manual: 1 PCS、Certificate: 1 PCS、Power cord:1PCS Serial cable: 1PCS、Power:1PCS |
|
【Software Function】 |
|
|
Port Management |
Enable/Disable Port |
|
Speed、Duplex、MTU Setting |
|
|
Flow-control |
|
|
Port Information Check |
|
|
Port Mirroring |
Supports both side-way port mirroring |
|
Port Speed Limit |
Supports port-based input / output bandwidth management |
|
Port Isolation |
Support the downlink port isolation, and can communicate with the uplink port |
|
Storm Suppression |
Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
|
Link Aggregation |
Support static manual aggregation Support LACP dynamic aggregation |
|
VLAN |
Access |
|
Trunk |
|
|
Hybrid |
|
|
Support port, protocol, MAC-based VLAN partitioning |
|
|
Support GVRP dynamic VLAN registration |
|
|
Voice VLAN |
|
|
MAC |
Support static addition, deletion |
|
MAC address learning limit |
|
|
Support dynamic aging time setting |
|
|
Spanning tree |
Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
|
Multicast |
Support static addition, deletion IGMP-snooping |
|
Support MLD-Snooping |
|
|
Support v1/2/3 dynamic multicast monitor |
|
|
DDM |
Support SFP/SFP+DDM |
|
ACL |
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
|
Qos |
Based on 802.1p (COS) classification |
|
Based on DSCP classification |
|
|
Classification based on source IP, destination IP, and port number |
|
|
Support SP, WRR scheduling strategy |
|
|
Support flow rate limit CAR |
|
|
LLDP |
Support LLDP link discovery protocol |
|
User settings |
Add/delete users |
|
Log |
User login, operation, status, events |
|
Anti-attack |
DOS defense |
|
Support CPU protection and limits the rate of sending cpu packets |
|
|
ARP binding (IP, MAC, PORT binding) |
|
|
Certification |
Support 802.1x port authentication |
|
Support AAA certification |
|
|
Network diagnosis |
Support ping、telnet、trace |
|
System Management |
Device reset, configuration save/restore, upgrade management, time setting, etc. |
|
CLI |
Support serial port command line management |
|
SSH |
Support SSHv1/2 remote management |
|
TELNET |
Support telnet remote management |
|
WEB |
Support Layer 2 settings, Layer 2 and Layer 3 monitor |
|
Application Environment
Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
| |
