Passive FTTH Optical Receiver without Filter
PTR3292D
1. Description

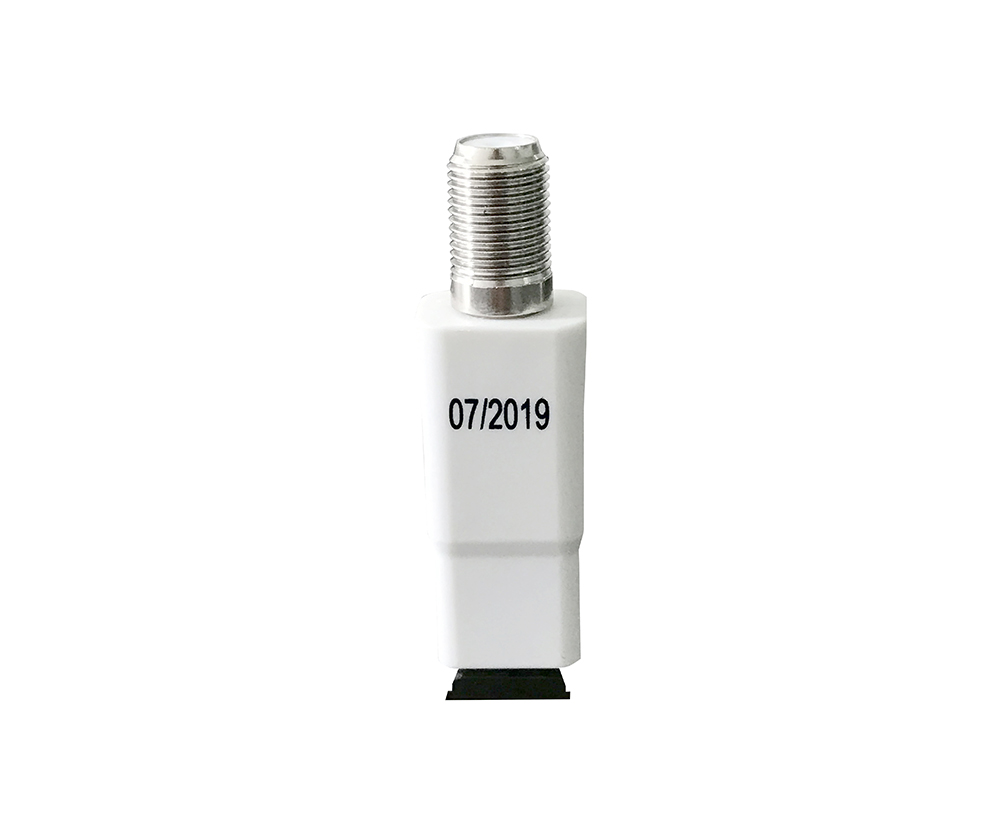

Passive FTTH Optical Receiver PTR3292D without filter which can be used for digital TV fiber to the home, it has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution. Product diagram as below:
2. Features
■1 GHz operating bandwidth
■ input optical range:+2~-9dBm
■Output level up to 50dBuV (@-5dBm power input)
■1310nm or 1550nm optical wavelength
| Description | value | Notes | ||
| Optical Characteristics | CATV wavelength | (nm) | 1100~1600 |
|
| Response | (A/W) | ≥0.85 | 1310nm | |
| ≥0.9 | 1550nm | |||
| Optical Power Input Range | (dBm) | +2~-9 |
|
|
| Optical Return loss | (dB) | ≥50 |
|
|
| connector |
|
SC/APC |
|
|
| RF Characteristics | Bandwidth | (MHz) | 45 ~ 1050 |
|
| Output level | (dBμ) | >60±2 | Digital Tv（Pin＝0dBm） | |
| Output impendence | (Ω) | 75 |
|
|
| Output port |
|
1 |
|
|
| RF connector |
|
F connector | imperial | |
| Digital TV link Characteristics | MI | (%) | 4.3 |
|
| MER | (dB) | ≥33 | Pin= -5dBm | |
| BER | (dB) | <1.0E-9 | Pin= -5dBm | |
| Physical Characteristics | Operating Temperature | (℃) | -20 ~ +50 |
|
| Storage Temperature | (℃) | -40 ~ 85 |
|
|
| Working Humidity | (%) | 5 ~ 95 |
|
|
| Weight | g | 9.7 |
|
|
| Dimensions | mm | 53*16*12 |
|
|
Shipping packaging
| Description | Quantity | Weight | Carton Size |
| Shipping packaging | 25pcs/box | 0.35kg/box | 330*25*150mm |
| 250pcs (10boxes)/ctn | 3.9kg/ctn | 360*260*170mm |
