Dimension(mm)：
83*83*145mm
(L*W*H)

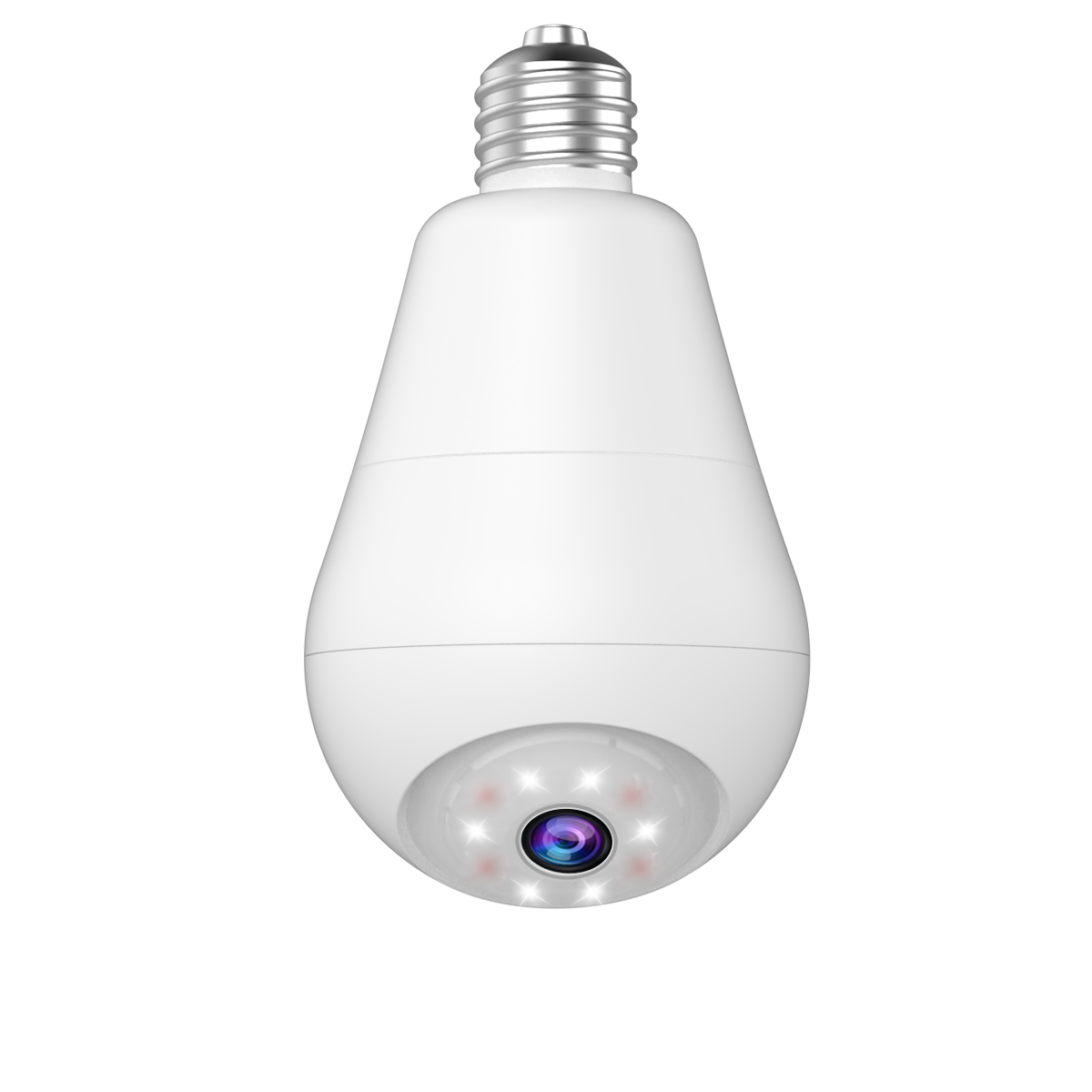

Indoor Smart Camera
PTZ-T2R/T2T
1. Overview
PTZ-T2* series is a indoor smart PTZ camera launched by Photon,The bulb-type design can directly replace the bulb.It is based on the embedded Linux operating system and integrates multiple functions such as wireless WiFi and card insertion. PTZ-T2R: 8 infrared lights + 2 LED white lights, PTZ-T2T: 4 infrared lights + 4 LED white lights, night monitoring and photography are clearer. The monitoring head has a built-in wireless AP hotspot to provide network access for surrounding devices; the built-in memory card slot can record the monitoring screen and support playback at any time.
Day and night full color and alarm function, can capture clear color images in all-weather environment. Built-in sound and light alarm module, once an abnormal situation is detected, it will immediately sound and light alarm, support voice alarm function, can prompt the occurrence of abnormal situation through voice.
Lighting and monitoring are dual-purpose in one machine, providing you with all-round security protection.
2. Features
Ø Wireless card camera embedded Linux operating system
Ø Infrared light + white core light, clearer night monitoring and photographyØ Automatic AP hotspot, no network viewing, playback, automatic tracking, Bluetooth network configuration
Ø Full color day and night, sound and light alarm, motion detection, voice warning, cruise monitoring
Ø One machine for two purposes, both monitoring and lighting, monitoring and lighting
|
Model |
PTZ-T2R |
PTZ-T2T |
|
CPU |
INGENIC T23N |
INGENIC T31L |
|
Sensor Model |
SC1A4T |
MIS4001 |
|
Sensor Size |
1/3’ |
1/3” |
|
Pixels |
200W |
500W |
|
Min. illumination |
Main stream：1920*1080 Sub-stream：640*360 |
Main stream：2304*1296 Sub-stream：640*360 |
|
Min. illumination |
Color 0.01Lux@F1.2, black and white 0.001 Lux@F1.2 |
|
|
Flash |
8M flash |
|
|
Lens |
4mm |
|
|
Field of View (FOV) |
107° |
|
|
Day&Night Switching |
Dual light source full-color |
|
|
IR Night Vision |
10pcs 850 LEDs/2 white light + 8 IR |
10pcs 850 LEDs/4 white light + 4 IR |
|
Infrared Distance |
0-20m (depending on lens) |
|
|
Audio Input |
Built-in microphone head |
|
|
Audio Output |
Built-in 1 x 8Ω 1W speaker, max 100dB |
|
|
WiFi |
IEEE 802.11a/b/g/n, 2.4G |
|
|
OS |
Linux |
|
|
Video format |
H.264 video encoding |
H.265 video encoding |
|
Recording Storage |
TF card (supports 8GB-128GB, replaceable), cloud storage |
|
|
Recording Modes |
24/7 recording, scheduled recording, motion detection recording, event recording (cloud storage) |
|
|
Storage Occupancy |
4GB/day for 1080P/standard definition (depending on storage quality) |
|
|
Alarm |
App push notifications, sound alarms |
|
|
Motion Detection |
Supports advanced motion detection (by region) Supports patrol mode |
|
|
Security |
Password protection |
|
|
Network Protocols |
RTSP/FTP/HTTP/DHCP/DDNS/NTP/UPnP |
|
|
Power Supply |
100-240V(≥3W) |
|
|
Dimensions |
83*83*145mm |
|
|
Package Size |
192*106*104mm |
|
