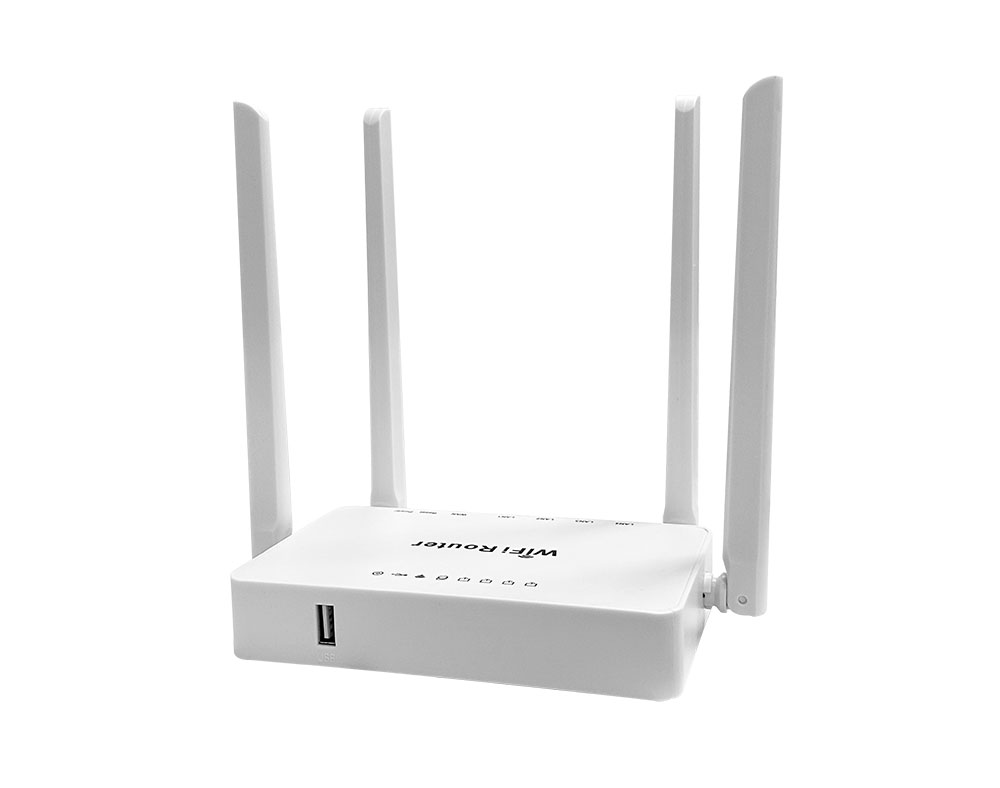

Wi-Fi Router
PTW6015W-ZB
1. Product Description
PTW6015W-ZB iswireless router with 5FE Ethernet ports. This productused the MT7620N, CPU up to 580Mhz, installed the large capacity SDRAM and the high speed SPI FLASH, provide 5 10/100Mbps Auto-MDI/MDIX ports and 2.4Ghz wireless network, could meet many kinds of wireless application, much better cost-performance. Stable wireless performance, stronger scalability, 2.4G wifi rate speed up to 300Mbps.
2. Features:
Ø MT7620N CPU, 580Mhz, powerfulperformance and work stably
Ø Support IEEE 802.11b/g/n networkprotocol
Ø Wireless transmission rate up to 300Mbps, 4 external antennas, cover a larger area
Ø Supports openWRT
Ø 1*10/100MAuto-MDI/MDIX WAN port; 4*10/100MAuto-MDI/MDIX LAN port
Ø One push to rest mode.
Ø Support several encryption mode, such as WEP，WPA,WPA2 and so on
Ø Support NAT/NAPT, Firewall function
Ø Support strategy routing, DDNS, NET, more secure intranet access
Ø Support IPv4/IPv6
|
HARDWARE |
|
|
Processor |
MT7620N/580MHZ |
|
RAM |
SDRAM 64MB |
|
Flash |
8MB |
|
Protocol |
IEEE 802.11n.IEEE 802.11g.IEEE 802.11b. IEEE 802.3.IEEE 802.3u |
|
Work Channel |
2.4GHz |
|
Wireless Rate |
300Mbps |
|
Antenna |
4 external antennas |
|
RT Power |
11N: 15dBm±2dBm 11G: 15dBm±2dBm 11B: 18dBm±2dBm |
|
Reception Sensitivity |
11N: -68dBm 11G: -70dBm 11B: -82dBm |
|
Interface |
1*10/100M Auto-MDI/MDIX WAN port 4*10/100M Auto-MDI/MDIX LAN ports |
|
LED |
Power/WLAN/WAN/LAN1/LAN2/LAN3/LAN4 |
|
Buttons |
Reset Button |
|
WAN Type |
PPPoE、Dynamic IP、Static IP |
|
Work Mode |
AP; Router; |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
Firewall Security |
Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
DDNS |
Support |
|
WEB Style Change |
Support |
|
Band Ctrl |
Support |
|
Static Router |
Support |
|
System Log |
Support |
|
Other Function |
Mac clone NTP Synchronize Web firmware upgrade |
|
Power |
Input:AC 110V~240V-50/60Hz Output：DC 9V/0.6A |
|
Max consumption |
< 5W |
|
Working environment |
|
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
|
Dimension （L*W*H） |
260*245*46mm |
