14-Ports Gigabit Managed Industrial Switch

PTD1514G-8G6S-NM

1. Overview

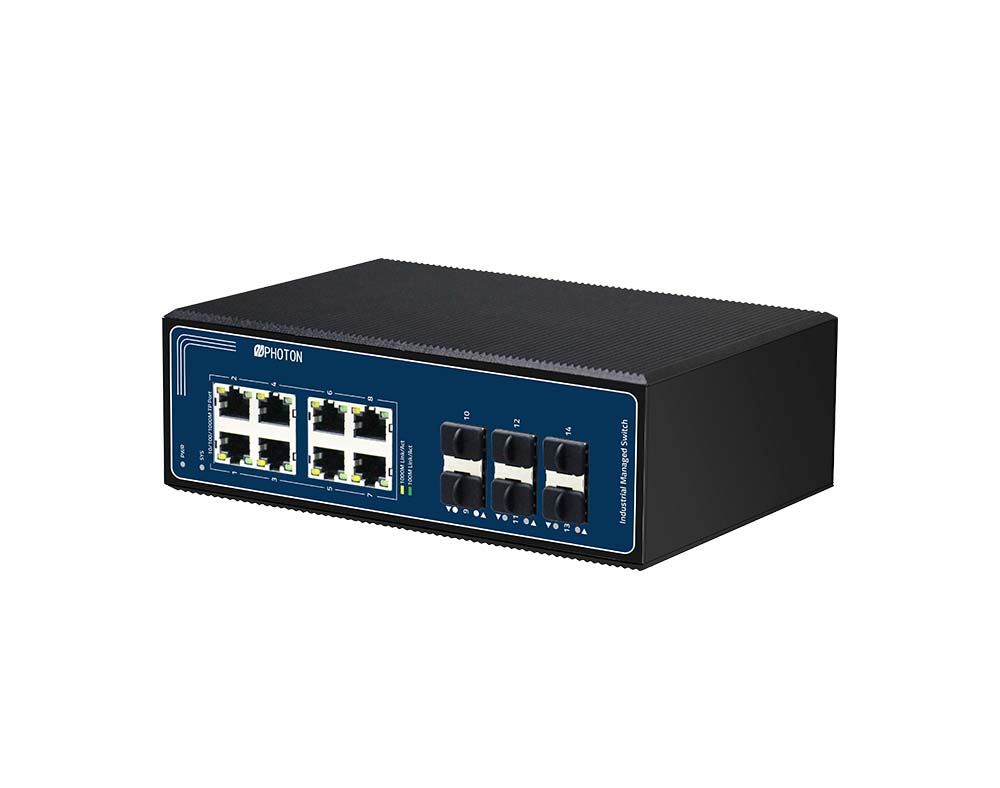

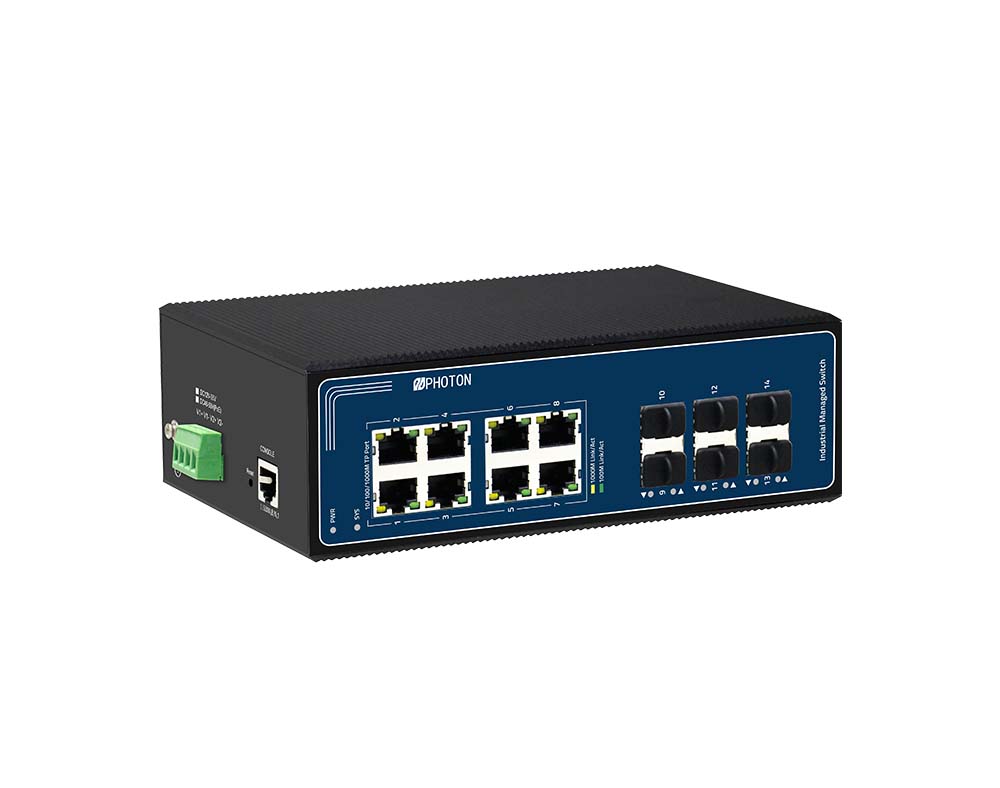

PTD1514G-8G6S-NM is a14 Ports Gigabit Industrial Ethernet Switch, 8 Gigabit Ports + 6 Gigabit SFP Port + 1 Console Port, supporting Din rail and wall mounting. Supports dual power input (DC12-55V); -40 to75℃ working temperature; Certified by industrial environment and support FCC, CE, CCC, RoHS standards; Reliable industrial design ensures uninterrupted automation system Stable operation.

This series of industrial grade switches can be widely used in wind power, electric power, assembly automation, subway PIS, electric power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries. It is a green low-power industrial Ethernet switch.

This series of switches provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control, port mirroring, and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites. All components use industrial grade for greater reliability, providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications.

2. Features

Ø Support 8 Gigabit Ports + 6 Gigabit SFP Port + 1 Console Port

Ø Support IEEE802.3，IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1q，IEEE802.1p，IEEE802.1d/w

Ø Support STP（802.1D), RSTP（802.1w），802.1s (MSTP)，ERPS

Ø Support SNMP v1/v2/v3

Ø Support IGMP Snooping , Static multicast filtering and MLD Snooping

Ø Support 802.1x port and AAA Certification，Enhance network security

Ø Support WEB, Telnet，CLI,SSH management

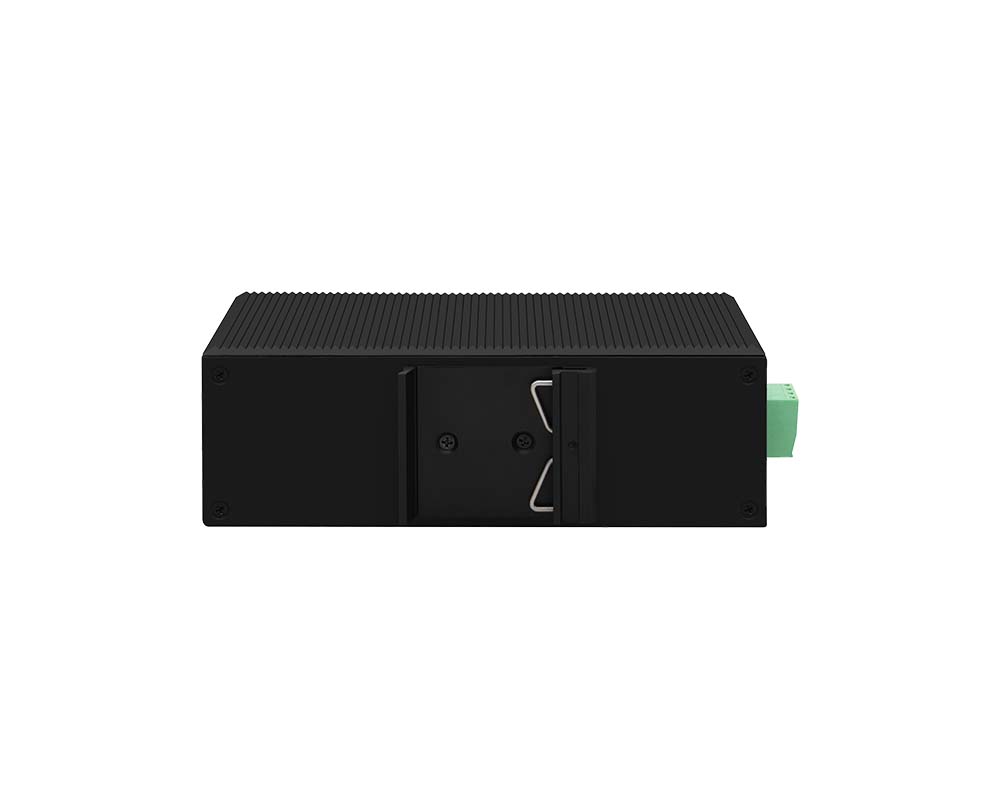

Ø IP40 protection, rugged high-strength metal case，DIN35 Rail mounting

Ø EMC grade 4 design，-40 to75℃working temperature

Ø Support Redundant power supply access, support anti-reverse connection

Ø Surge Protection: General 6KV, Differential 4KV; ESD 15KV(Air), 8KV (Contact)

Ø Support EMC EN55032 standard

3. Application

Ø Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.

Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

Ø Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.

Ø Real-time monitoring: simultaneous transmission of real-time control signals, images, data

Ø Resistant to harsh environment: Suitable for strong electromagnetic interference, networking in harsh environments at long distances.
