Dimension(mm)：88.4*88.4*18.6(L*W*H)
Weight：0.35kg
WiFiAndroid HD IPBox
PTB2196W
1. Overview
PTB2196W is a WiFi (2.4G) smart Android IP box. It's designed with 2K/4K HDR Android TV encoding, and theAllwinner H313 Quad Core ARM Cortex A53 processor delivers unprecedented levels of performance and power efficiency. Built-in dual-band Wi-Fi wireless module and 10M/100M Ethernet port to connect to the Internet. As long as your TV is equipped with an HDMI interface, the high-performance PTB2196W Android IP box allows you to easily enjoy the H.264 1080p high-definition, 2K 4K ultra-high-definition cloud audio-visual world
2. Features
Ø Allwinner H313 Quad Core ARM Cortex A53 CPU
Ø 2GRAM+16GROM
Ø HDMI 2.0A ,Support HDMI CEC, Dynamic HDR and 4K@60fps output
Ø H.264 1080p 60fps Video encoding, H.264/H.265 10bit HDR decoding up to 4K@60fps
Ø RJ4510/100/1000M Ethernet
Ø Buildin Wi-Fi antenna,Wifi:802.11a/b/g/n 2.4G
Ø OS:Android10,OTA upgradeable fromtheinternet
Ø Support for file upload/download fields in the Browser application
Ø Support for installing app from USB store or internet online program
Ø Supports installing app from USB storage or Internet

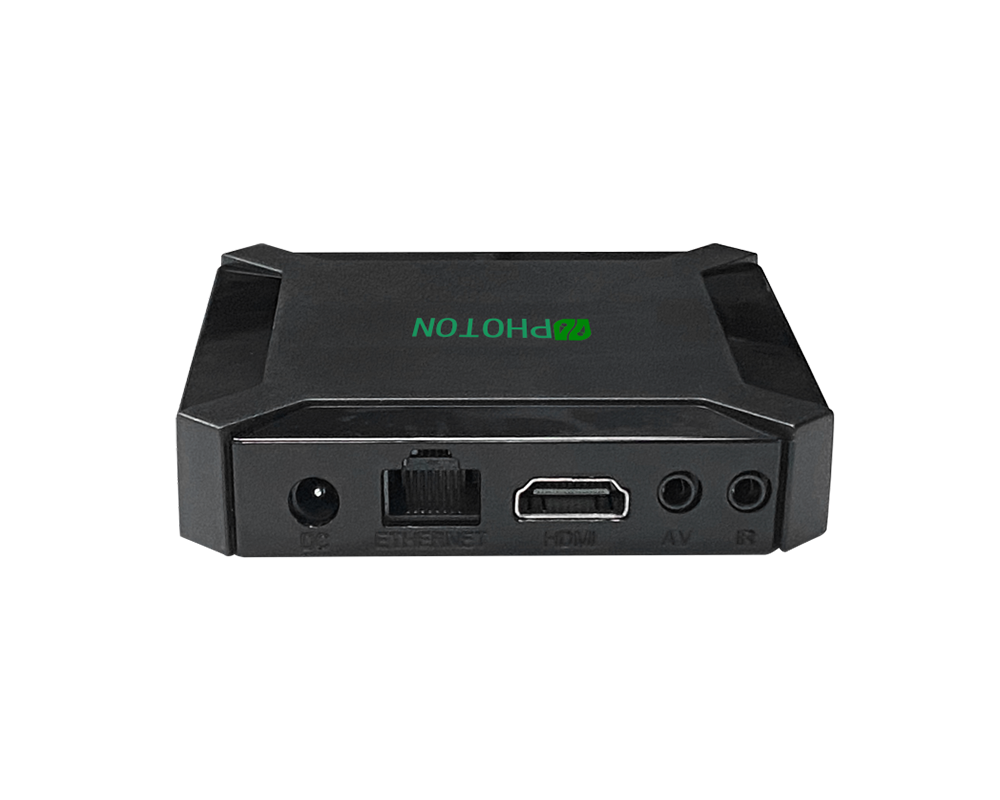

3. Interface
|
Basic parameters |
|
|
System |
CPU:Allwinner H313 Quad Core ARM Cortex A53 |
|
GPU:G31 OPenGL3.2 |
|
|
DRAM: DDR32GB |
|
|
FLASH: EMMC16GB |
|
|
OS:Android10 |
|
|
Wireless |
Build-in Wi-Fi antenna, IEEE 802.11 a/b/g/n ; 2.4G |
|
I/O |
|
|
Video Output |
HD2.0(4K60)，HDR 4K 2Koutput |
|
Network |
Ethernet：10/100M |
|
Peripheral Interface |
1*USB 3.0 ; 1*USB 2.0，1*AV，1*IR，1*TF CARD |
|
Media |
|
|
Video |
Decoder: •Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders •Support multi-video decoder up to 4K@60fps •Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding •Video/Picture Decoding •VP9 Profile-2 up to 4K@30fps •H.265 Main10@L5.1 up to 4K@60fps •AVS2 JiZhun 10bit Profile up to 4K@60fps •H.264 BP/MP/HP@L4.2 up to 4K@30fps •H.263 BP up to 1080P@60fps •MPEG-4 SP/ASP@L5 up to 1080P@60fps •MPEG-2 MP/HL up to 1080P@60fps •MPEG-1 MP/HL up to 1080P@60fps •Xvid up to 1080P@60fps •Sorenson Spark up to 1080P@60fps •VP8 up to 1080P@60fps •AVS/AVS+ JiZhun Profile up to 1080P@60fps •WMV9/VC1 SP/MP/AP up to 1080P@60fps •JPEG HFIF file format up to 45M PPS •Multiple language and multiple format sub-title video support •MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) •Supports JPEG thumbnail, scaling, rotation and transition effects |
|
Format: *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formatsetc. |
|
|
Audio |
Decoder: Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones |
|
Language |
English French German Spanish Italian etc multilateral languages |
|
Photo Format |
HD, JPEG,BMP,GIF,PNG,TIF |
|
Features |
|
|
Local Media Playback |
Video/Audio/Picture |
|
TV APP |
Apps download freely form android market、amazon app store etc. |
|
Talk online |
Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc |
|
Other parameters |
|
|
Input Voltage |
DC IN 5V/2A |
|
Power Consumption |
10W Max |
|
Operation Temperature |
0~40℃, Humidity<95% |
|
Physical characteristics |
Size:88.4*88.4*18.6(MM); Unit packing:170*115*55(MM) |
|
Weight:0.35KG, 7KG (20PCS, carton:370*290*240mm) |
|
|
Material:plastic+pcb |
|
|
Proposed Accessory |
IR Remote *1, User manual *1, HDMI cable *1, Power adapter *1 |
